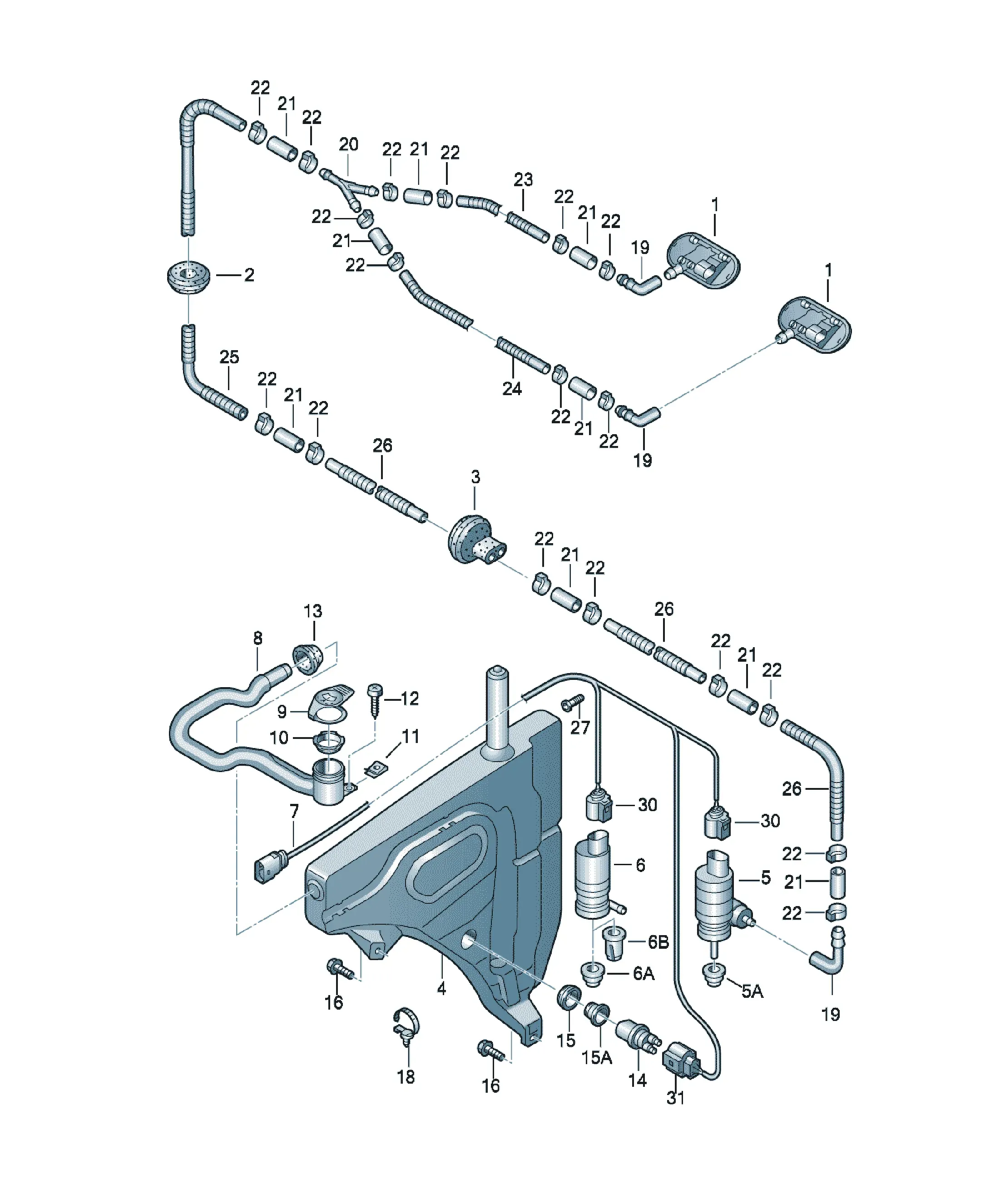

Windshield washer system

[Name] [Note] [QTY]

tube in coils of 5m 'order unit 5' 6X1X5000 *

[Name] [Note] [QTY]

Spray nozzle, heated right 1

mating connector

8E0973202 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Spray nozzle, heated left 1

mating connector

8E0973202 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

strainer 1

[Name] [Note] [QTY]

Speed nut 4,8X16,5X11 1

[Name] [Note] [QTY]

Hexagon socket head panel bolt 4,8X16 1

[Name] [QTY]

Grommet 1

[Name] [Model info] [QTY]

Water level switch PR:9Q2,9Q4, 1

9Q7,9Q8

mating connector

7M0973202 Flat contact housing with contact locking mechanism 2 pin 1

1J0973202 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [QTY]

seal ring 1

[Name] [Model info] [QTY]

Bungs PR:9Q3 1

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16 2

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 3

For hole/material thickness: 6,5/0,3-3

[Name] [QTY]

Elbow fitting X

[Name] [Note] [QTY]

Elbow fitting lower 2

[Name] [QTY]

Grommet 1

[Name] [QTY]

Y-piece 1

[Name] [QTY]

Connecting hose X

[Name] [Note] [QTY]

Cable ties 3,6X246 X

Replacements: N 10647801

[Name] [Note] [QTY]

shorten to: 174MM 1

[Name] [Note] [QTY]

shorten to: 596MM 1

[Name] [Note] [QTY]

shorten to: 909MM 1

[Name] [Note] [QTY]

corrugated pipe 6X0,75X10000MM 1

[Name] [QTY]

Grommet 1

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 2

black

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [QTY]

Wash water reservoir 1

[Name] [QTY]

Windscreen washer system pump 1

for vehicles with wipe-wash system for rear window

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Seal 12X6,5 1

[Name] [Note] [Model info]

see illustration: 955-030 PR:8X1

[Name] [Note] [Model info] [QTY]

Seal 20,2X9,5 PR:8X0 1

[Name] [Note] [Model info] [QTY]

Seal 20,2X9,5 PR:8X1 1

D >> - 10.11.2014

[Name] [Note] [Model info] [QTY]

Seal 20,2X9,5 PR:8X1 1

D - 10.11.2014>>

[Name] [Model info] [QTY]

Bungs PR:8X0 1

[Name] [Note]

see illustration: 972-065

[Name] [QTY]

fuel filler neck 1

[Name] [QTY]

End cap 1
