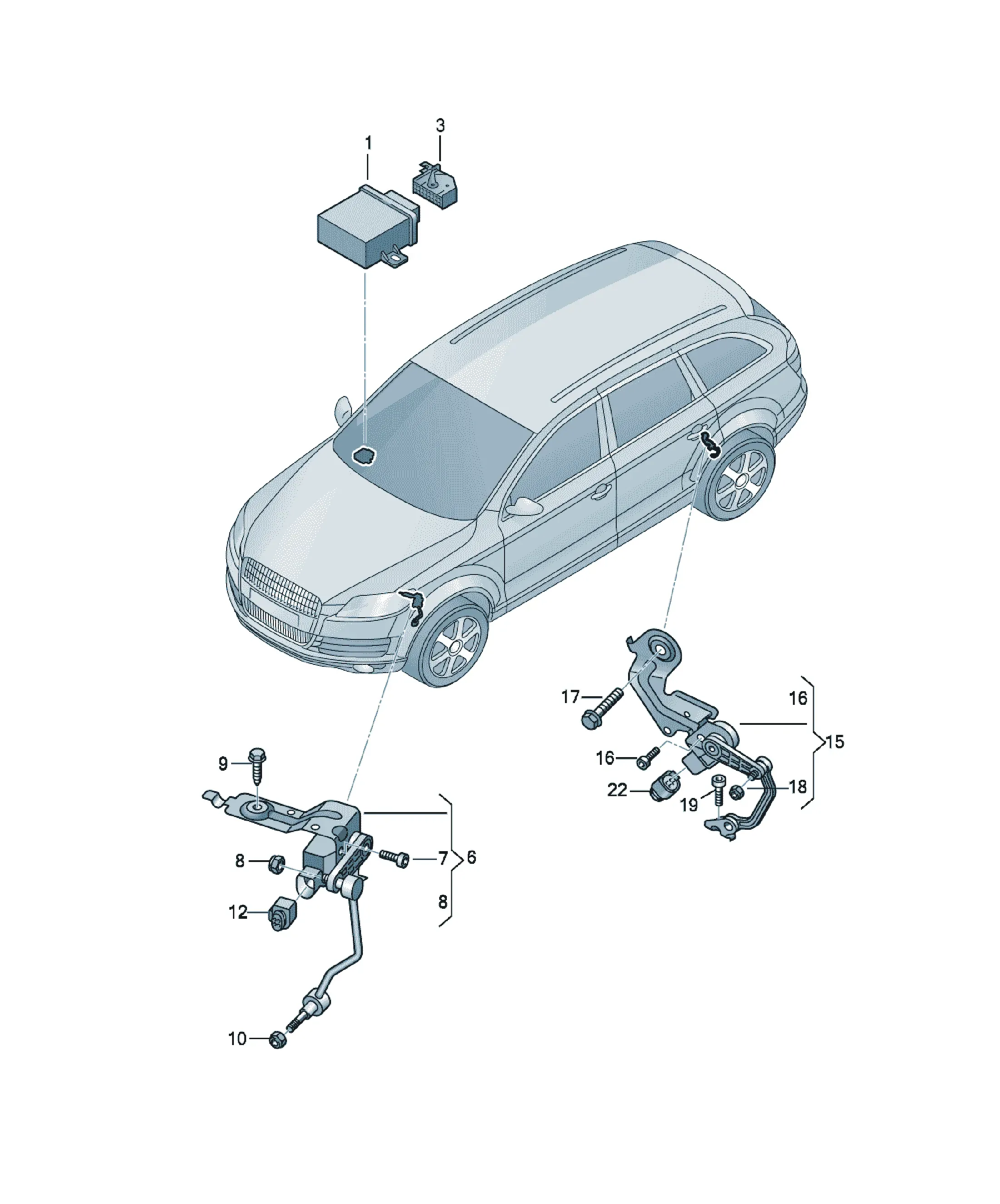

Headlamp leveling system

[Name] [Model info] [QTY]

Control unit for headlight range control PR:8Q3 1

D - 10.10.2011>>

mating connector

7M3972726 flat contact housing with cap 26 pin 1

black

[Name] [Model info] [QTY]

Control unit for cornering light and headlight range ctrl PR:8Q5,8Q7 1

For vehicles with automatic, dynamic h/light range control and cornering light control

D >> - 19.04.2010

Replacements: 4L0907357B

mating connector

7M3972726A flat contact housing with cap 26 pin 1

black

[Name] [Model info] [QTY]

Control unit for cornering light and headlight range ctrl PR:8Q5,8Q7 1

For vehicles with automatic, dynamic h/light range control and cornering light control

D - 19.04.2010>>

mating connector

7M3972726A flat contact housing with cap 26 pin 1

black

[Name] [Model info] [QTY]

Control unit for cornering light and headlight range ctrl PR:8Q3 1

D >> - 10.10.2011

mating connector

4E0972726 flat contact housing with cap 26 pin 1

black

[Name] [Note] [QTY]

hexagon nut, self-locking M6 2

[Name] [Note] [QTY]

Level sensor with poles rear 1

mating connector

4B0973712 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Note] [QTY]

Level sensor with poles left a. right 2

for models with air suspension

mating connector

7M0973119 Flat contact housing 6 pin 1

[Name] [Note] [QTY]

Socket head bolt M5X10 2

[Name]

Not for this model

[Name] [Note] [QTY]

hexagon nut, self-locking M6 2

[Name] [Note] [QTY]

hexagon nut, self-locking M6 2

[Name] [Note] [QTY]

Level sensor with poles right 1

for models with air suspension

mating connector

7M0973119 Flat contact housing 6 pin 1

[Name] [Note] [QTY]

Level sensor with poles left 1

for models with air suspension

mating connector

7M0973119 Flat contact housing 6 pin 1

[Name] [Note] [QTY]

Level sensor with poles left 1

mating connector

4B0973712 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [Note] [QTY]

Socket head bolt M5X10 2

[Name] [Note] [QTY]

hexagon nut, self-locking M6 2

[Name] [Note]

Hex collared bolt

see illustration: 407-000
