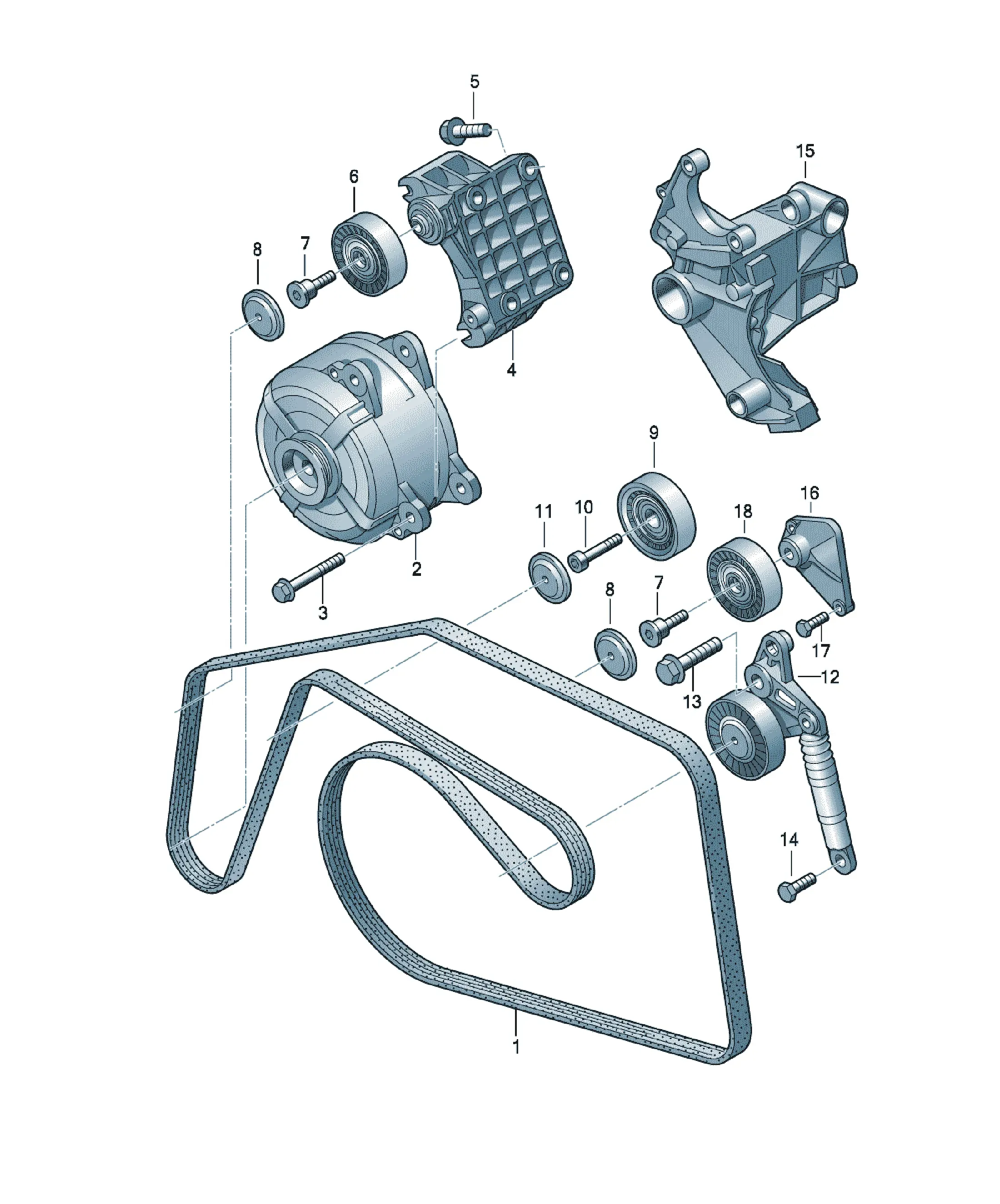

Alternator drive

[Name] [Note] [QTY]

Poly-V-belt 21,36X2518MM 1

D - MJ 2013>>

[Name] [Note] [Model info] [QTY]

Poly-V-belt 21,36X2518MM PR:7MG 1

D >> - 18.04.2011

[Name] [Note] [Model info] [QTY]

Poly-V-belt 21,36X2518MM PR:0GG 1

D >> - 18.04.2011

[Name] [Note] [QTY]

Poly-V-belt 21,36X2518MM 1

D - 18.04.2011>>

[Name] [Note] [QTY]

Poly-V-belt 21,36X2480MM 1

[Name] [Note] [QTY]

Cylinder fitting screw with inner multipoint head M8X15X82 1

[Name] [Note] [QTY]

Cylinder fitting screw with inner multipoint head M8X16,9X65 1

[Name] [QTY]

dust cap 2

[Name] [Note] [QTY]

Belt tensioner damper 1

(for modified vehicles)

See item: 13

[Name] [QTY]

Belt tensioner damper 1

D - 20.09.2010>>

[Name] [QTY]

Belt tensioner damper 1

Replacements: 059903133BA

[Name] [QTY]

Belt tensioner damper 1

[Name] [QTY]

Belt tensioner damper 1

D >> - 20.09.2010

[Name] [Note] [QTY]

Hex collared bolt M11X72 1

D - 20.09.2010>>

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X48 1

[Name] [Note] [QTY]

Hex collared bolt M10X76 1

only to be used for: 059 145 201 F

[Name] [Note] [QTY]

Hex collared bolt M11X72 1

only to be used for: 059 145 201 H

[Name] [Note] [QTY]

Hex collared bolt M10X76 1

D >> - 20.09.2010

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X35 1

[Name] [Note]

Retainer for vane pump

see illustration, item: 145-075,3

[Name] [QTY]

BRACKET FOR idler pulley 1

[Name] [QTY]

BRACKET FOR idler pulley 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M8X25 3

BRACKET FOR idler pulley

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X35 2

BRACKET FOR idler pulley

[Name] [QTY]

idler pulley 1

BRACKET FOR idler pulley

[Name] [Note]

Alternator

see illustration, item: 903-000,1

[Name] [Note] [QTY]

Hex collared bolt M8X90 2

[Name] [QTY]

bracket for alternator 1

[Name] [QTY]

bracket for alternator 1

[Name] [QTY]

bracket for alternator 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X29 4

bracket for alternator

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X35 4

bracket for alternator

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X30 4

bracket for alternator

[Name] [QTY]

idler pulley 1

bracket for alternator

[Name] [Note] [QTY]

Locating bolt M8X10X25 1

idler pulley

bracket for alternator

[Name] [Note] [QTY]

Cylinder fitting screw with inner multipoint head M8X16,9X65 1

idler pulley

BRACKET FOR idler pulley

[Name] [Note] [QTY]

Locating bolt M8X10X25 1

idler pulley

bracket for alternator

[Name] [Note] [QTY]

Cylinder fitting screw with inner multipoint head M8X15X82 1

idler pulley

BRACKET FOR idler pulley

[Name] [QTY]

dust cap 2

[Name] [QTY]

idler pulley 1

Sealing flange
