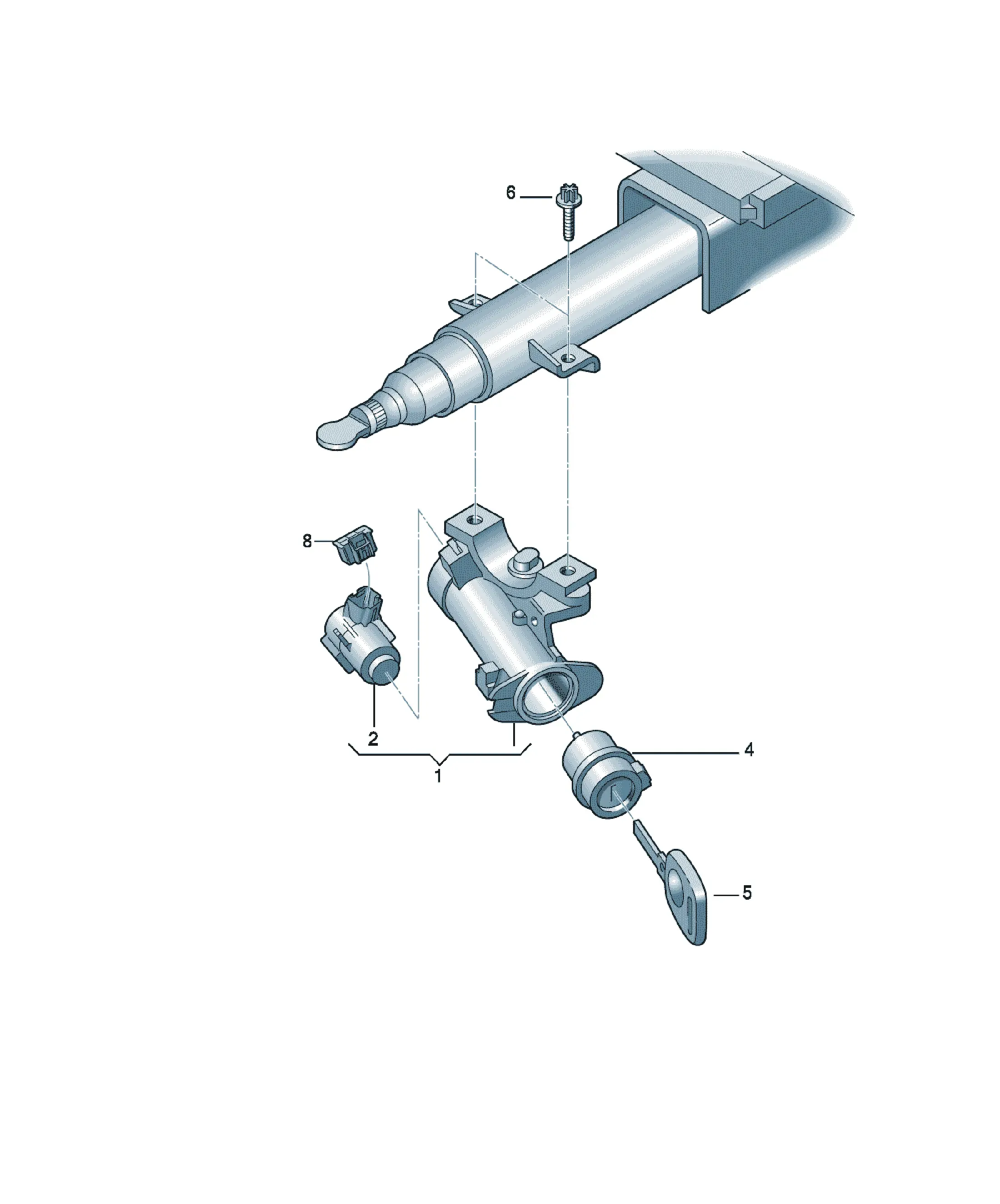

Ignition lock

[Name]

Carbon black

[Name] [QTY]

Trim 1

Ignition/starter switch

[Name] [Note] [Model info] [QTY]

Steering lock with ignition/ starter switch without lock cylinder lhd PR:0RA+ 1

"S.."

[Name] [Note] [Model info] [QTY]

Steering lock with ignition/ starter switch without lock cylinder rhd PR:0RA 1

[Name] [Note] [Model info] [QTY]

Steering lock with ignition/ starter switch without lock cylinder lhd PR:0RA 1

[Name] [Model info] [QTY]

Steering lock with ignition/ starter switch without lock cylinder PR:0RA 1

[Name] [Model info] [QTY]

Steering lock with ignition/ starter switch without lock cylinder PR:0RB 1

[Name] [QTY]

Ignition/starter switch 1

mating connector

6R0971975A Flat contact housing 6 pin 1

[Name] [Note] [Model info] [QTY]

lock cylinder for ignition starter switch with read coil, without key HUF PR:0RA X

* to retain the one key * system the key code * number and/or chassis * number must be quoted * when ordering

mating connector

4B0971832 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [Model info] [QTY]

lock cylinder for ignition starter switch with read coil, without key HUF PR:0RB X

* to retain the one key * system the key code * number and/or chassis * number must be quoted * when ordering

mating connector

8W0971832 Flat contact housing 2 pin 1

black

[Name] [Note] [Model info] [QTY]

lock cylinder for ignition starter switch with read coil, without key HUF "S..","GB." X

* to retain the one key * system the key code * number and/or chassis * number must be quoted * when ordering

mating connector

8W0971832 Flat contact housing 2 pin 1

black

[Name] [Note]

key

see illustration: 837-010

[Name] [Note] [QTY]

sheer bolt M8X20-V 2

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

black

Possible single wire:

000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

flat contact with retaining lug 0,5

4,8-6,3MM

000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 4,8-6,3MM

000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X

-40C/+125C

with cable crosssection: 2,5

flat contact with retaining lug 4,8-6,3MM

000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+105C

flat contact with retaining lug 4,8-6,3MM

000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X

-40C/+125C

with cable crosssection: 4,0

flat contact with retaining lug 4,8-6,3MM

000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM

000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+125C

with cable crosssection: 6,0

flat contact 4,8-6,3MM
