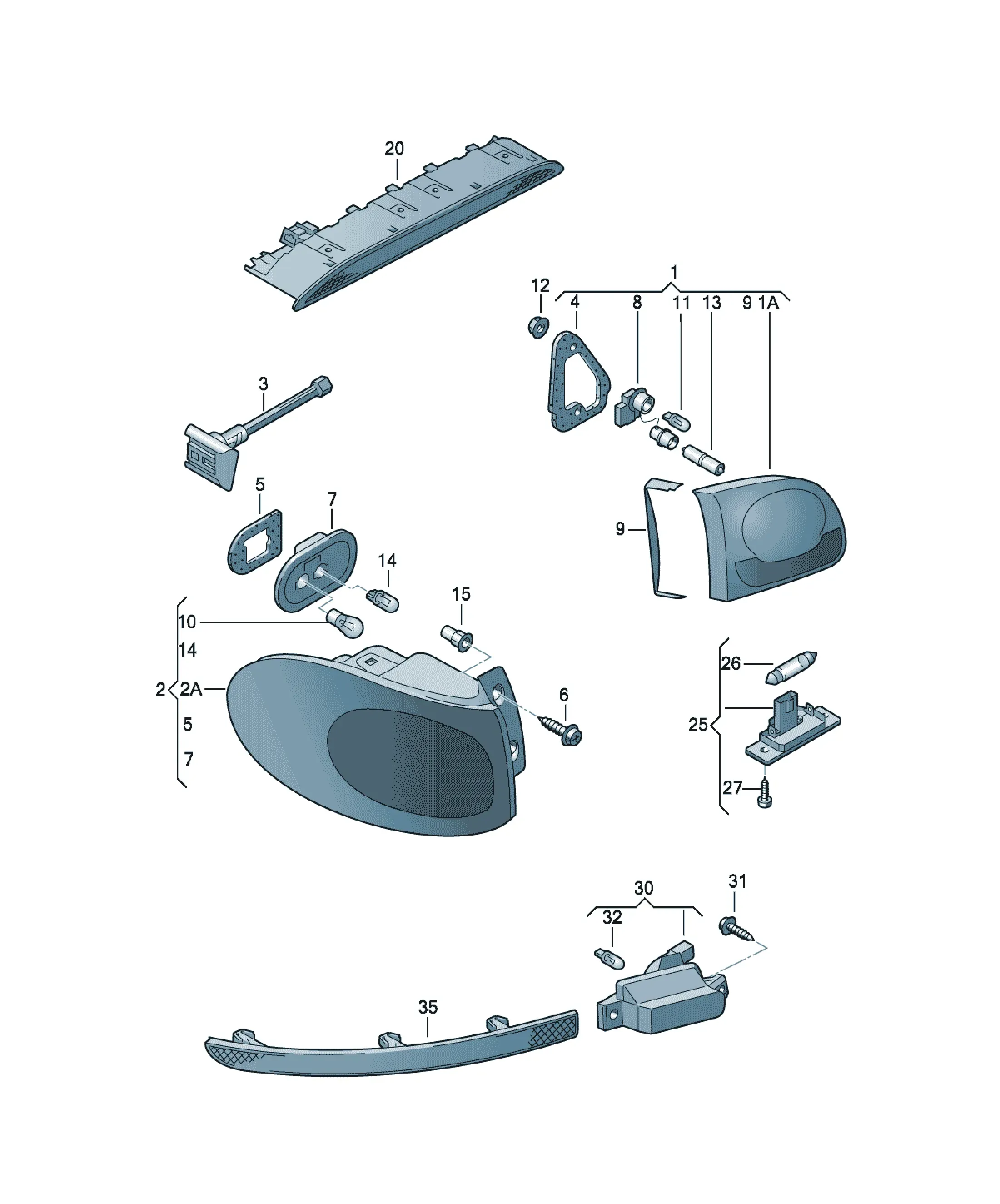

Tail lamp

[Name] [Note] [QTY]

Tail light with fog light right inner 1

(left-hand traffic only)

Replacements: 5N0945108C

mating connector

1T0972703 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [QTY]

Tail light with fog light left inner 1

(right-hand traffic only)

Replacements: 5N0945107B

mating connector

1T0972703 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [QTY]

Tail light left inner 1

(left-hand traffic only)

Replacements: 5N0945107B

mating connector

1T0972703 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [QTY]

Tail light right inner 1

(right-hand traffic only)

Replacements: 5N0945108C

mating connector

1T0972703 Flat contact housing with contact locking mechanism 3 pin 1

[Name] [Note] [QTY]

bulb 'longlife' 21W 2

[Name] [Note] [QTY]

bulb 'longlife' 5W 2

[Name] [Note] [QTY]

Hexagon collar nut M5 X

[Name] [Note] [QTY]

Halogen bulb 'LongLife' 21W 2

for rear fog light

[Name] [Note] [QTY]

bulb, yellow glass 21W 2

Turn signal indicator

[Name] [Note] [QTY]

rivetted cap nut M5

F 5N-8-001 001>>* 2

[Name] [Note] [QTY]

Tail light right inner 1

[Name] [Note] [QTY]

Tail light left inner 1

[Name] [Note] [QTY]

Tail light right outer 1

Replacements: 5N0945112D

mating connector

1J0972704 Flat contact housing 4 pin 1

black

[Name] [Note] [Model info] [QTY]

Tail light right outer "MEX" 1

Replacements: 5N0945112E

mating connector

1J0972704 Flat contact housing 4 pin 1

black

[Name] [Note] [Model info] [QTY]

Tail light left outer "MEX" 1

Replacements: 5N0945111E

mating connector

1J0972704 Flat contact housing 4 pin 1

black

[Name] [Note] [QTY]

Tail light left outer 1

Replacements: 5N0945111D

mating connector

1J0972704 Flat contact housing 4 pin 1

black

[Name]

Additional brake light

Replacements: 1K6945097A

mating connector

1J0973119 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name]

Licence plate light

mating connector

1H0972702A Flat contact housing 2 pin 1

[Name] [Note] [QTY]

bulb 'longlife' C5WLL-12V5W 2

[Name] [Note] [QTY]

oval head panel screw 3,9X13 4

[Name] [Note] [QTY]

Tail light left outer 1

[Name] [Note] [QTY]

Tail light right outer 1

[Name] [Note] [Model info] [QTY]

Tail light left outer "MEX" 1

[Name] [Note] [Model info] [QTY]

Tail light right outer "MEX" 1

[Name] [QTY]

adjustment element 2

[Name] [Note] [QTY]

Reversing light with integrated bulb right 1

Replacements: 5N0941072A

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Reversing light with integrated bulb left 1

Replacements: 5N0941071A

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Hexagon socket head panel bolt 5X16 4

[Name]

** not exchangeable **

see workshop manual

[Name] [Note] [QTY]

rear light reflector left 1

[Name] [Note] [QTY]

rear light reflector right 1

[Name] [Note] [QTY]

Seal left inner 1

Replacements: 5N0945191F

[Name] [Note] [QTY]

Seal right inner 1

Replacements: 5N0945192A

[Name] [Note] [QTY]

Seal outer

F 5N-8-003 001>>* 2

Replacements: 5N0945191E

[Name] [QTY]

Hexagon socket head bolt 1

[Name] [Note] [QTY]

Bulb carrier left

F 5N-8-003 001>>* 1

[Name] [Note] [QTY]

Bulb carrier right

F 5N-8-003 001>>* 1

[Name] [QTY]

mounting for bulb socket 1

[Name] [Model info] [QTY]

mounting for bulb socket "MEX" 2

[Name] [QTY]

mounting for bulb socket 1

Tail light with fog light

[Name] [Note] [Model info] [QTY]

Cover left "MEX" 1

Replacements: 5N0945311A 9B9

[Name] [Note] [Model info] [QTY]

Cover right "MEX" 1

Replacements: 5N0945312A 9B9

[Name]

Satin black

[Name]

Satin black

[Name] [Note] [QTY]

Cover right 1

Replacements: 5N0945312 9B9

[Name]

Satin black

[Name] [Note] [QTY]

Cover left 1

Replacements: 5N0945311 9B9

[Name]

Satin black
