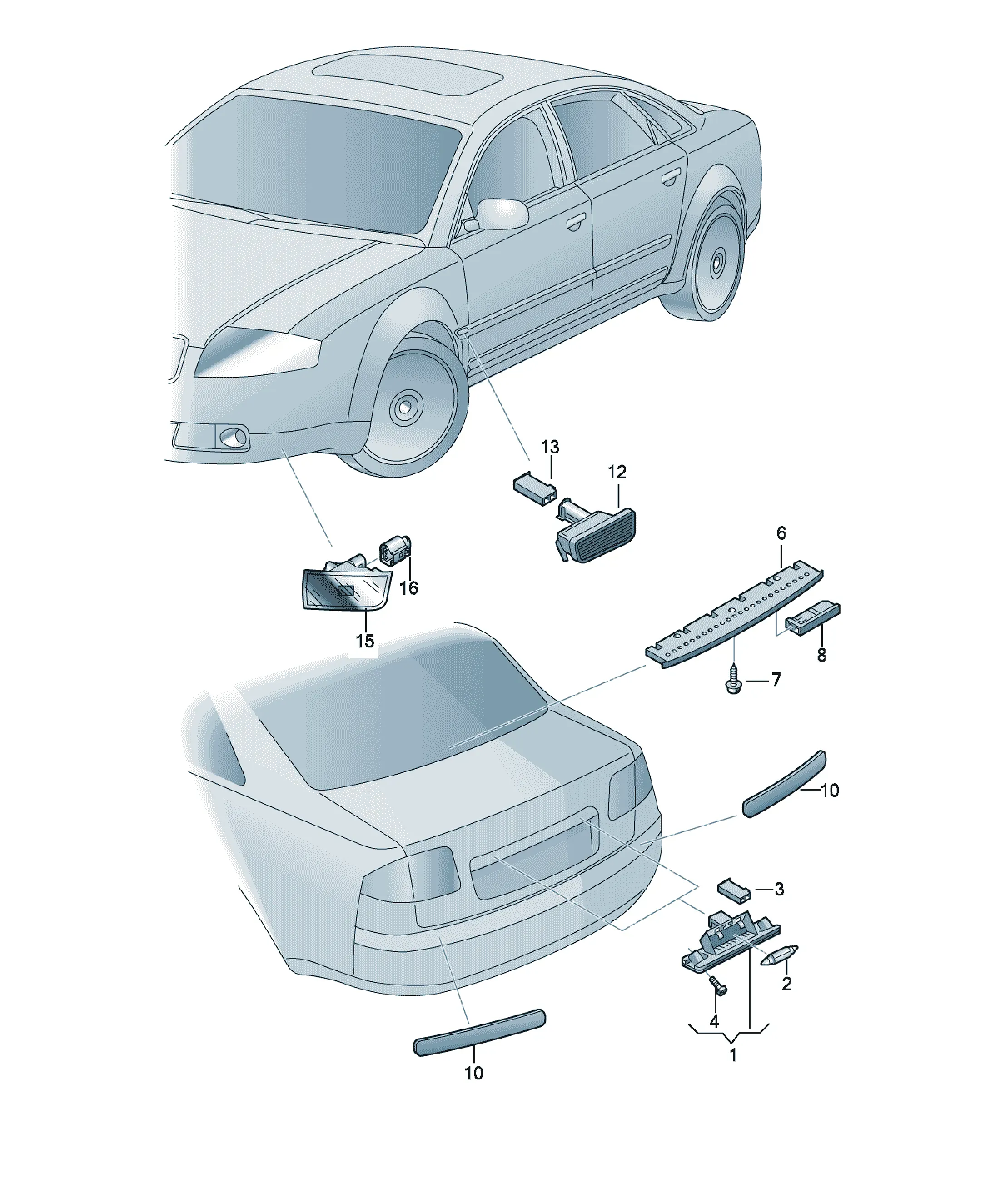

Фонарь освещения номерного знака

[Name] [Note] [QTY]

bulb, yellow glass WY5W-12V5W 2

[Name] [Note] [QTY]

Licence plate light left 1

[Name] [Note] [QTY]

Licence plate light right 1

[Name] [QTY]

Turn signal indicator 2

[Name] [Note]

Bulb holder with wiring set

see illustration: 971-000

[Name] [Note] [QTY]

side marker light right front 1

[Name] [Note] [QTY]

side marker light left front 1

[Name] [Note]

see illustration: 972-030

[Name] [Note] [QTY]

bulb C5W-12V5W 2

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 2

black

grip molding

mating connector

8E0972643 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Model info] [QTY]

Additional brake light Saloon+ 1

PR:4KF,4KV

mating connector

4B0971832 Flat contact housing with contact locking mechanism 2 pin 1

black

8E0972623 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Model info] [QTY]

Additional brake light AVANT 1

mating connector

4B0971832 Flat contact housing with contact locking mechanism 2 pin 1

black

8E0972623 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Model info] [QTY]

Additional brake light Saloon+ 1

PR:4KA,4KC,

4KS

mating connector

4B0971832 Flat contact housing with contact locking mechanism 2 pin 1

black

8E0972623 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

fillister hd. bolt M5X12 1

Earth line

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

mating connector

4E0972575 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

mating connector

4E0972575 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979018E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979018EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63
