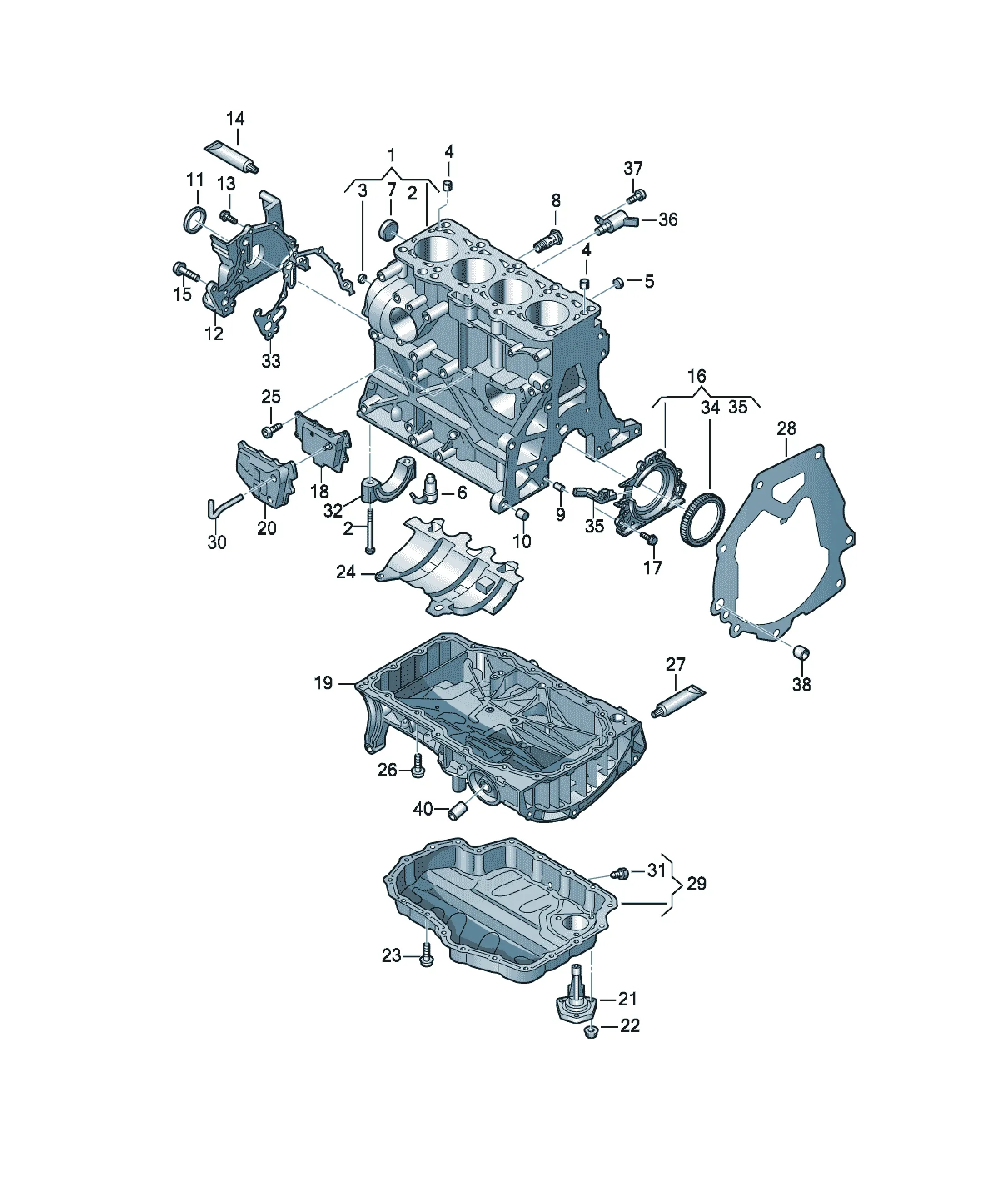

Блок цилиндров

[Name] [QTY]

seal ring 1

[Name] [QTY]

cylinder block with pistons, crankshaft and bearings 1

Items supplied

04E103011T Crankcase housing 1

04E105561B crankshaft bearing shell upper 5

04E105561B ROT red 2,503-2,507

04E105561B GLB yellow 2,508-2,512

04E105561B BLA blue 2,513.2,517

04E105591B crankshaft bearing shell lower 5

04E105591B ROT red 2,503-2,507

04E105591B GLB yellow 2,508-2,512

04E105591B BLA blue 2,513-2,517

WHT004986B thrust washer upper 2

04E107065AN piston complete 4

04E105101M Crankshaft 1

04E103157 oil spray jet 4

[Name] [Note] [QTY]

Cylinder pin 6M6X20 1

[Name] [Note] [QTY]

Shaft oil seal 30X7 1

[Name] [Note] [QTY]

Sealing flange front 1

[Name] [Note] [QTY]

Hexagon collared bolt with multi-point socket head (duo) M6X25 6

[Name] [Note] [QTY]

Silicon sealant 50ML X

Sealing flange front

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X50 2

[Name] [Note] [QTY]

Sealing flange rear 1

[Name] [Note] [QTY]

Hex collared bolt M6X20 6

[Name] [QTY]

oil separator 1

[Name] [QTY]

oil sump-upper part 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M10X80 10

[Name] [QTY]

Cover 1

[Name] [Note]

oil level sender

see illustration, item: 919-040,16

[Name] [Note]

Hexagon collar nut

see illustration, item: 919-040,17

[Name] [Note] [QTY]

Hexagon socket head collared bolt, thread forming M6X16 19

[Name] [QTY]

Surge lock 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X14 9

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 19

[Name] [Note] [QTY]

Silicon sealant 50ML X

oil sump

[Name] [QTY]

Spacer plate 1

[Name] [QTY]

Engine oil sump lower part 1

[Name] [Note] [QTY]

End cap 14 2

[Name] [QTY]

Vent hose 1

[Name] [Note] [QTY]

oil drain plug M14X1,5X16 1

also use: N 013 815 8 1

Accompanying details: N 0138158

[Name]

crankshaft bearing

No replacement part

[Name] [QTY]

Seal 1

[Name]

impulse rotor

No replacement part

[Name] [Note]

impulse sender

Crankshaft

see illustration, item: 906-000,7

[Name] [QTY]

control valve 1

mating connector

4H0973702A Flat contact housing 2 pin 1

Connection piece black

thermostat

Possible single wire:

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [QTY]

dowel sleeve 2

[Name] [Note] [QTY]

dowel sleeve 13,2X13 2

[Name] [Note] [QTY]

End cap 12 1

[Name] [QTY]

oil spray jet 4

[Name] [Note] [QTY]

End cap 22 2

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22 1

[Name] [Note] [QTY]

Cylinder pin 8X16 4
