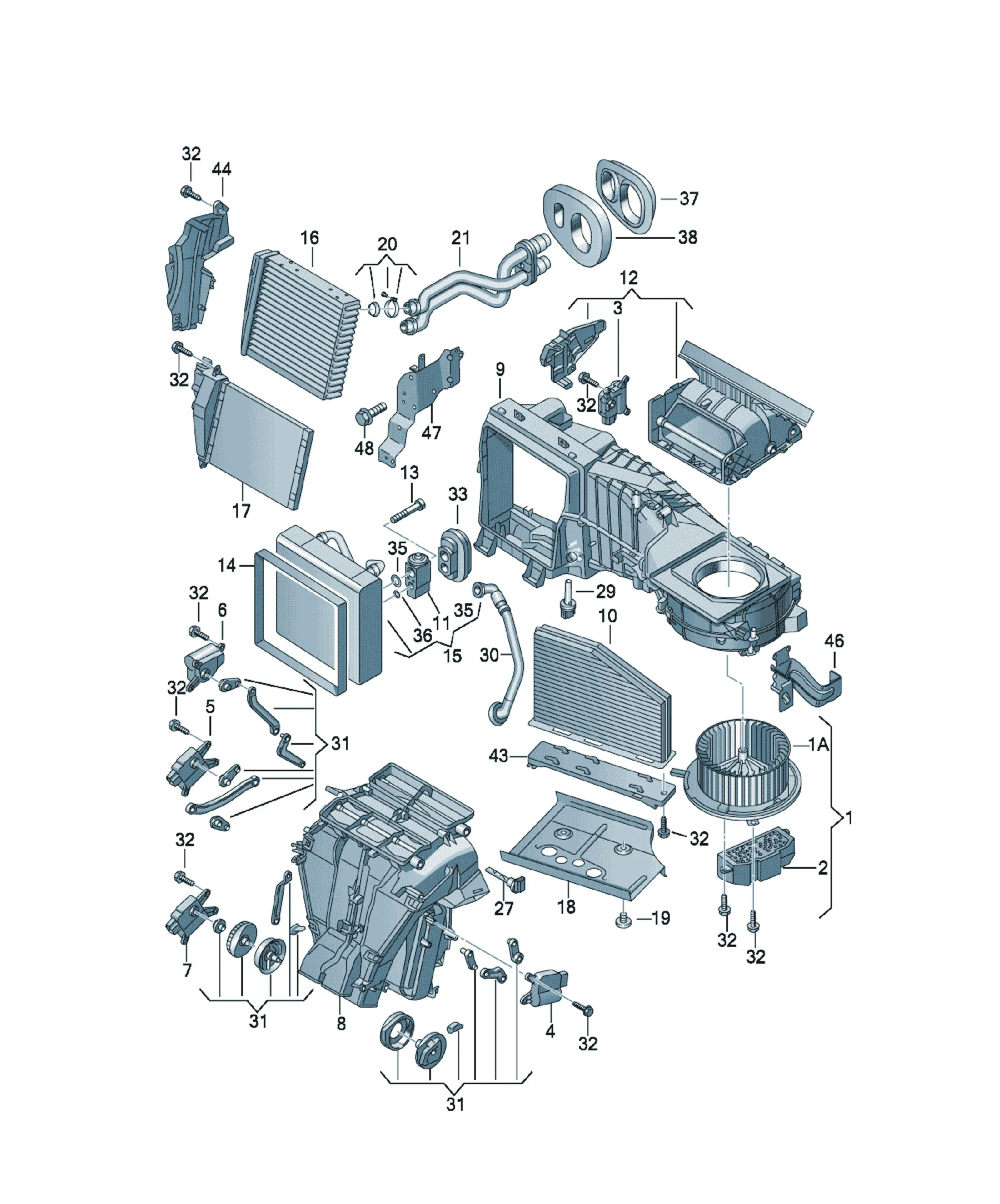

Система кондиционирования

[Name] [QTY]

Bracket 1

heater unit

[Name] [QTY]

Seal 1

Replacements:

[Name] [QTY]

Grommet 1

Replacements: 1K0820751C

[Name] [QTY]

Seal 1

Replacements: 3C0898304D

[Name] [QTY]

Adapter 1

[Name] [QTY]

Bracket 1

heater unit

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X16 X

[Name] [QTY]

Fan 1

Replacements: 3C1820015R; 3C0907521E; 3C0907521F

[Name] [QTY]

Fan 1

Replacements: 1K2820021; 3C0907521G

[Name] [QTY]

Filter insert with odour and harmful substance filtering 1

Replacements: 1K2819669

[Name] [QTY]

Odour and allergen filter 1

[Name] [QTY]

Filter insert with odour and harmful substance filtering 1

Replacements: 1K1819669

[Name] [QTY]

Filter insert with odour and harmful substance filter 'ECO' 1

Economy

Replacements: 1K1819653B; 1K2819653B

[Name] [QTY]

Dust and pollen filter insert 1

Replacements: 1K1819669; 1K2819669

[Name] [QTY]

Odour and allergen filter 1

[Name] [QTY]

Expansion valve 1

[Name] [Note] [QTY]

Expansion valve R134A 1

[Name] [QTY]

Intake duct 1

repair set

housing 1

bracket f.throttle contr.elem. 1

Seal 1

[Name] [Note] [QTY]

Intake duct RLKG 1

[Name] [Note] [QTY]

Socket head bolt M5X40X16 2

[Name] [QTY]

Seal 1

[Name] [QTY]

evaporator with expansion valve 1

Replacements: 3C1820103C

[Name] [QTY]

evaporator with expansion valve 1

Replacements: 1K2820103E

[Name] [QTY]

heat exchanger 1

Replacements: 3C0819031A

[Name] [QTY]

heat exchanger 1

[Name] [Note] [Model info] [QTY]

Heater element for electr. auxiliary air heater Z 35 PR:7E6 1

Replacements: 1K0963235G

mating connector

1K0972723A Flat contact housing 3 pin 1

black

Possible single wire: 000 979 308 X

[Name] [Model info] [QTY]

Heater element for electr. auxiliary air heater PR:7E6 1

Replacements: 1K0963235G

mating connector

1K0972723A Flat contact housing 3 pin 1

black

Possible single wire: 000 979 308 X

[Name] [Model info] [QTY]

Cover PR:7E6 1

[Name] [Model info] [QTY]

Cover PR:7E6 1

[Name] [Model info] [QTY]

Cover PR:7E0 1

[Name] [Model info] [QTY]

Cover PR:7E0 1

Replacements: 5M1819593

[Name] [Note] [QTY]

wing screw 4,8 2

[Name] [QTY]

Fan control 1

Replacements: 3C0907521G

mating connector

1J0972752 Flat contact housing 2 pin X

8D0937731A flat contact housing with retainer guide 6 pin 1

brown

[Name] [QTY]

Gasket set 1

repair set

seal ring 2

Clamp 2

Socket head bolt 2

[Name] [QTY]

Gasket set 1

repair set

Clamp 3C0 819 597 2

panel screw 2

Seal 3C0 819 991 2

[Name] [Note] [QTY]

Coolant pipe lhd 1

feed/return

also use: 3C0 898 380 1

Accompanying details: 3C0898380

[Name] [Note] [QTY]

Coolant pipe 1

feed/return

also use: 8E0 898 380 1

Accompanying details: 8E0898380

[Name] [Note] [QTY]

Temperature sensor left 1

G 261

right

G 262

mating connector

1J0971972 flat connector housing 2 pin 1

black

[Name] [Note] [QTY]

Temperature sensor G 308,G 263 1

evaporator

mating connector

1J0972923 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [Note] [QTY]

Temperature sensor G 263,G 308 1

evaporator

mating connector

1J0972923 Flat contact housing with contact locking mechanism 2 pin 1

1J0971972 flat connector housing 2 pin 1

black

[Name] [Note] [QTY]

central flap positioning motor V 425 1

Replacements: 5Q0907511L; 1K0898002B

[Name] [Note] [QTY]

central flap positioning motor V425 1

ventilation flap

Replacements: 3C0907511Q

[Name] [QTY]

water drain pipe 1

[Name] [QTY]

water drain pipe 1

[Name] [QTY]

1 set: levers for air distribution housing 1

repair set

Lever for defroster flap 1

lever for temperature regulating flap 1

Coupling rod 1

[Name] [Note] [QTY]

hexagon head panel screw 4X16-H X

[Name] [QTY]

Seal 1

Expansion valve

Replacements: 1K0820139A

[Name] [QTY]

Seal 1

Replacements: 1K0820139A

[Name] [Note] [QTY]

O-ring 14X1,8 X

[Name] [Note] [QTY]

O-ring 10,8X1,82 X

[Name] [QTY]

Grommet 1

[Name] [QTY]

Seal 1

Expansion valve

[Name] [QTY]

Seal 1

Expansion valve

[Name] [QTY]

Grommet 1

[Name] [Note] [QTY]

control motor for temperature regulating flap right 1

V159

Replacements: 1K0907511Q; 1K0898002C

[Name] [Note] [QTY]

control motor for temperature regulating flap right 1

V 159

Replacements: 1K0907511Q; 1K0898002B

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [QTY]

Cover 1

Dust and pollen filter

[Name] [QTY]

Cover 1

for dust-pollen filter

[Name] [QTY]

Cover 1

[Name] [Model info] [QTY]

Cover PR:7E0 1

Replacements: 1K2819349K

[Name] [Model info] [QTY]

Cover PR:7E6 1

Replacements: 1K2819349L

[Name] [QTY]

1 set of levers 1

Air distribution housing

Replacements: 1K0898002A

repair set

Lever for defroster flap 983115R 1

Lever for defroster flap 983113H 1

Lever for defroster flap 983114U 1

lever 983116L 1

lever 983117B 1

cam plate 983118F 1

cam plate 983119S 1

cam plate 983120N 1

cam plate 995752A 1

Retaining plate 983168V 1

Lever for defroster flap 983122V 1

Coupling rod 983129P 1

Coupling rod 983130B 1

Coupling rod 983131Q 1

Drive wheel 983135H 1

Drive wheel 983316S 1

Support 983317E 1

[Name] [QTY]

1 set: levers for air distribution housing 1

repair set

lever for temperature regulating flap 983110G 1

lever for temperature regulating flap 983111X 1

Coupling rod 983325K 1

Coupling rod 983126H 1

intermediate lever 983134W 1

Spring 983379L 1

Coupling rod 9831125T 1

Coupling rod 983125R 1

[Name] [Note] [QTY]

control motor for temperature regulating flap left 1

V158

Replacements: 1K0907511Q; 1K0898002C

[Name] [Note] [QTY]

control motor for temperature regulating flap left 1

V 158

Replacements: 1K0907511Q; 1K0898002B

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [Note] [QTY]

Servomotor for defroster flap V107 1

Replacements: 3C1907511G

[Name] [Note] [QTY]

Servomotor for defroster flap 1

V 107

Replacements: 1K0907511Q; 1K0898002B

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [Note] [QTY]

central flap positioning motor V 426 1

Replacements: 5Q0907511L; 1K0898002B

[Name] [Note] [QTY]

central flap positioning motor V426 1

Replacements: 3C0907511Q

[Name] [QTY]

Air distribution housing 1

[Name] [Model info] [QTY]

connection box PR:7E6 1

for models with supplementary heater

repair set

Housing half left 1

housing left 1

partition 1

Housing half right 1

[Name] [Model info] [QTY]

connection box PR:7E0 1

for models without auxiliary heater

repair set

Housing half left 1

housing left 1

partition 1

Housing half right 1

[Name] [Model info] [QTY]

housing PR:1W2 1

[Name] [Model info] [QTY]

housing PR:1W0 1

[Name] [QTY]

housing 1

repair set

Housing half 1
