Trunk compartment

Luggage compartment trim

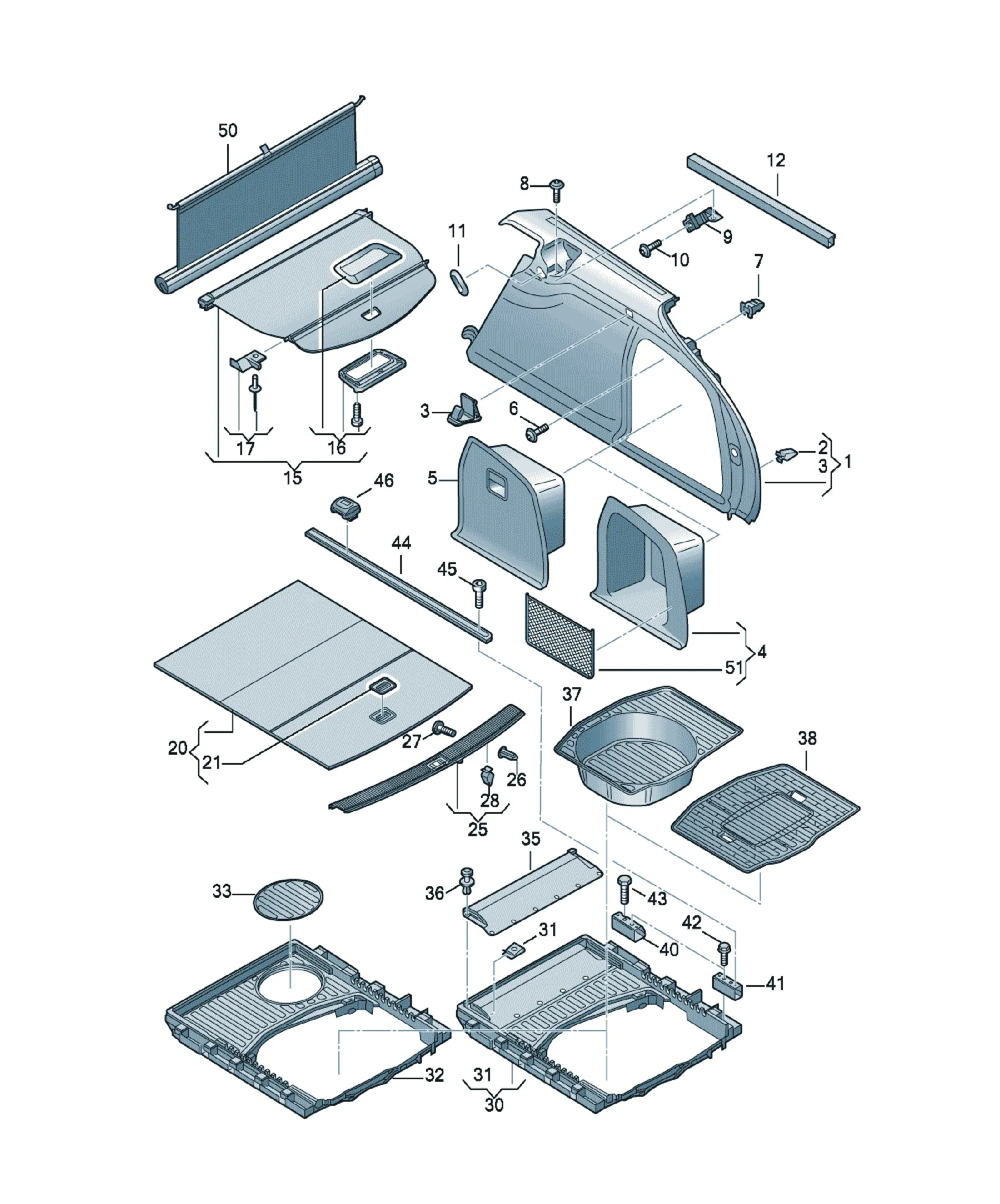

Assembly diagrams

11 diagrams

Parts

111 parts

Lock cylinders

[Name] [Note]
Lock cylinders
see illustration: 837-010
Hinge
4F9861549 Offers

[Name] [Note] [QTY]
Hinge rear 2
4F9863879GSQA Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9863879GSQB Offers

[Name] [Note]
indigo blue -MF
4F9863879GSQC Offers

[Name] [Note]
agate grey/light platinum -NQ
4F9863879GSQD Offers

[Name] [Note]
kamut beige/torrone (beige) -NR
4F9863879GVTP Offers

[Name] [Note]
Camut beige/cardamom beige -MC
4F9863888A Offers

[Name] [Note] [QTY]
Luggage compartment trim right 1
4F9863888ASQA Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
Replacements: 4F9863888B SQA
4F9863888ASQB Offers

[Name] [Note]
indigo blue -MF
4F9863888ASQC Offers

[Name] [Note]
agate grey/light platinum -NQ
4F9863888AVTP Offers

[Name] [Note]
Camut beige/cardamom beige -MC
4F9863888ASQD Offers

[Name] [Note]
kamut beige/torrone (beige) -NR
4F9863879G Offers

[Name] [Note] [QTY]
Luggage compartment trim left 1
N90939303 Offers

[Name] [Note] [QTY]
Hexagon socket oval head bolt (combi), self-locking M5X20 4
4F98672614PK Offers

[Name]
soul (black)
4F9867261 Offers

[Name] [Note] [QTY]
Rosette left a. right 2
4F9863900B Offers

[Name] [Note] [QTY]
Insulation strip right 1
Rework if necessary
4F9863899B Offers

[Name] [Note] [QTY]
Insulation strip left 1
Rework if necessary
4F9863553 Offers

[Name] [QTY]
Cover blind for luggage compartment 1
4F9863553ANN3 Offers

[Name] [Note]
agate grey -NQ
4F9863553NN3 Offers

[Name] [Note]
agate grey -NQ
4F9863553A Offers

[Name] [QTY]
Cover blind for luggage compartment 1
For vehicles with roller sunblind to rear window
4F9863553MM2 Offers

[Name] [Note]
Kamut beige -NR,MC
4F986355394H Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9863553PP4 Offers

[Name] [Note]
indigo blue -MF
4F9863553A94H Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9863553AMM2 Offers

[Name] [Note]
Kamut beige -NR,MC
4F9863553APP4 Offers

[Name] [Note]
indigo blue -MF
8D98625654PK Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
8D9862565 Offers

[Name] [QTY]
handle 1
8D98625651CT Offers

[Name] [Note]
agate grey -NQ
8D98625651FU Offers

[Name] [Note]
Kamut beige -NR,MC
8D98625656G6 Offers

[Name] [Note]
indigo blue -MF
4F9898661A Offers

[Name] [Note] [QTY]
repair set 1
clinch bolt left a. right
4F9898661A6G6 Offers

[Name] [Note]
indigo blue -MF
repair set
detent peg left 1
detent peg right 1
Pop rivet 3,2X4,8 2
4F9898661A1FU Offers

[Name] [Note]
Kamut beige -NR,MC
repair set
detent peg left 1
detent peg right 1
Pop rivet 3,2X4,8 2
4F9898661A1CT Offers

[Name] [Note]
agate grey -NQ
repair set
detent peg left 1
detent peg right 1
Pop rivet 3,2X4,8 2
4F9898661A4PK Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
repair set
detent peg left 1
detent peg right 1
Pop rivet 3,2X4,8 2
4A0867276 Offers

[Name] [Note] [QTY]
Clip 22,3 4
4F9861529DVV2 Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9861529DXX1 Offers

[Name] [Note]
indigo -MF
4F9861529D Offers

[Name] [QTY]
luggage comp. floor covering 1
4F9861529DYY4 Offers

[Name] [Note]
light platinum (grey) -NQ
4F9861529DZZ6 Offers

[Name] [Note]
Torrone (beige) -NR
4F9861529DU43 Offers

[Name] [Note]
Cardamom beige -MC
4B9887183C8X5 Offers

[Name] [Note]
Torrone (beige) -NR
4B9887183CK38 Offers

[Name] [Note]
Cardamom beige -MC
4B9887183C Offers

[Name] [QTY]
handle 1
luggage comp. floor covering
4B9887183CE59 Offers

[Name] [Note]
light platinum (grey) -NQ
4B9887183C4PK Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4B9887183C6G6 Offers

[Name] [Note]
indigo blue -MF
4F9864483B Offers

[Name] [QTY]
Trim for rear cross panel 1
811807577C Offers

[Name] [QTY]
insert nut 2
N90829803 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 5X14,5 2
8L4867276 Offers

[Name] [QTY]
Clip 2
4F98618491DH Offers

[Name] [Note]
agate grey -NQ
4F98618491GK Offers

[Name] [Note]
Kamut beige -NR,MC
4F98618494D9 Offers

[Name] [Note]
indigo -MF
4F9861849 Offers

[Name] [Note] [QTY]
fitting hook Folding 2
4F98618496PS Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9864106A Offers

[Name] [QTY]
Boot liner 1
for models with air suspension
4F9864106A01C Offers

[Name]
Satin black
N10433701 Offers

[Name] [Note] [QTY]
Speed nut 4,8X18,6X16 2
4F986410601C Offers

[Name]
Satin black
Replacements: 4F9864106A 01C; 4F9864797; 7L6868307
4F9864106 Offers

[Name] [QTY]
Boot liner 1
4F9864797A Offers

[Name] [QTY]
Cover 1
4F9864797 Offers

[Name] [QTY]
Cover 1
Pressure accumulator
for models with air suspension
7L6868307 Offers

[Name] [Note] [QTY]
Spreader rivet 5,8X10,8 8
4F9863547A Offers

[Name] [Model info] [QTY]
Cover for spare wheel well PR:1G0,1G8 1
4F9863547 Offers

[Name] [Model info] [QTY]
Cover for spare wheel well PR:3F4 1
4F9864747 Offers

[Name] [Note] [Model info] [QTY]
cover for luggage compartment trim left PR:5A4 1
4F9864747U43 Offers

[Name] [Note]
Cardamom beige -MC
4F9864747VV2 Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX
4F9864748ZZ6 Offers

[Name] [Note]
Torrone (beige) -NR
4F9864748VV2 Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9864748YY4 Offers

[Name] [Note]
light platinum (grey) -NQ
4F9864748XX1 Offers

[Name] [Note]
indigo -MF
4F9864748U43 Offers

[Name] [Note]
Cardamom beige -MC
4F9864748 Offers

[Name] [Note] [QTY]
cover for luggage compartment trim right 1
for vehicles with map net
4F9864747ZZ6 Offers

[Name] [Note]
Torrone (beige) -NR
4F9864747YY4 Offers

[Name] [Note]
light platinum (grey) -NQ
4F9864747XX1 Offers

[Name] [Note]
indigo -MF
4F9863254B Offers

[Name] [Note] [QTY]
Support right front 1
retaining rail
4F9863253B Offers

[Name] [Note] [QTY]
Support left front 1
retaining rail
4F9863253C Offers

[Name] [Note] [QTY]
Support rear 2
retaining rail
N10653201 Offers

[Name] [Note] [QTY]
Hex collared bolt M6X16 8
N98911503 Offers

[Name] [Note] [QTY]
Hexagon bolt 7/16"-20X20 2
4F9863555A Offers

[Name] [Note] [QTY]
retaining rail left 1
4F9863556A Offers

[Name] [Note] [QTY]
retaining rail right 1
N90972501 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M8X16 6
4F9863539 Offers

[Name] [QTY]
Lashing eye 4
4F9863989AVV2 Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9863989AXX1 Offers

[Name] [Note]
indigo -MF
4F9861586AYY4 Offers

[Name] [Note]
light platinum (grey) -NQ
4F9863989AZZ6 Offers

[Name] [Note]
Torrone (beige) -NR
4F9863989AU43 Offers

[Name] [Note]
Cardamom beige -MC
4F9861586A Offers

[Name] [Note] [QTY]
cover for luggage compartment trim right 1
lockable
4F9861586AVV2 Offers

[Name] [Note]
soul (black) -NK,NL,NM,QE,
QL,QQ,QU,QX,
ZM,ZQ
4F9861586AZZ6 Offers

[Name] [Note]
Torrone (beige) -NR
4F9863989AYY4 Offers

[Name] [Note]
light platinum (grey) -NQ
4F9861586AXX1 Offers

[Name] [Note]
indigo -MF
4F9861586AU43 Offers

[Name] [Note]
Cardamom beige -MC
4F9863989A Offers

[Name] [Note] [Model info] [QTY]
cover for luggage compartment trim left PR:5A5 1
[Name] [Note]
Net partition, removable
see illustration: 861-010
[Name] [Note]
Luggage net
No replacement part
for this use: 4F9 864 748
In corresponding colour
N90829803 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 5X14,5 2
811807577C Offers

[Name] [QTY]
insert nut 2
N90829803 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 5X14,5 2
4F9863584B Offers

[Name] [Note] [QTY]
Bracket right 1
Net partition
4F9863583B Offers

[Name] [Note] [QTY]
Bracket left 1
Net partition
