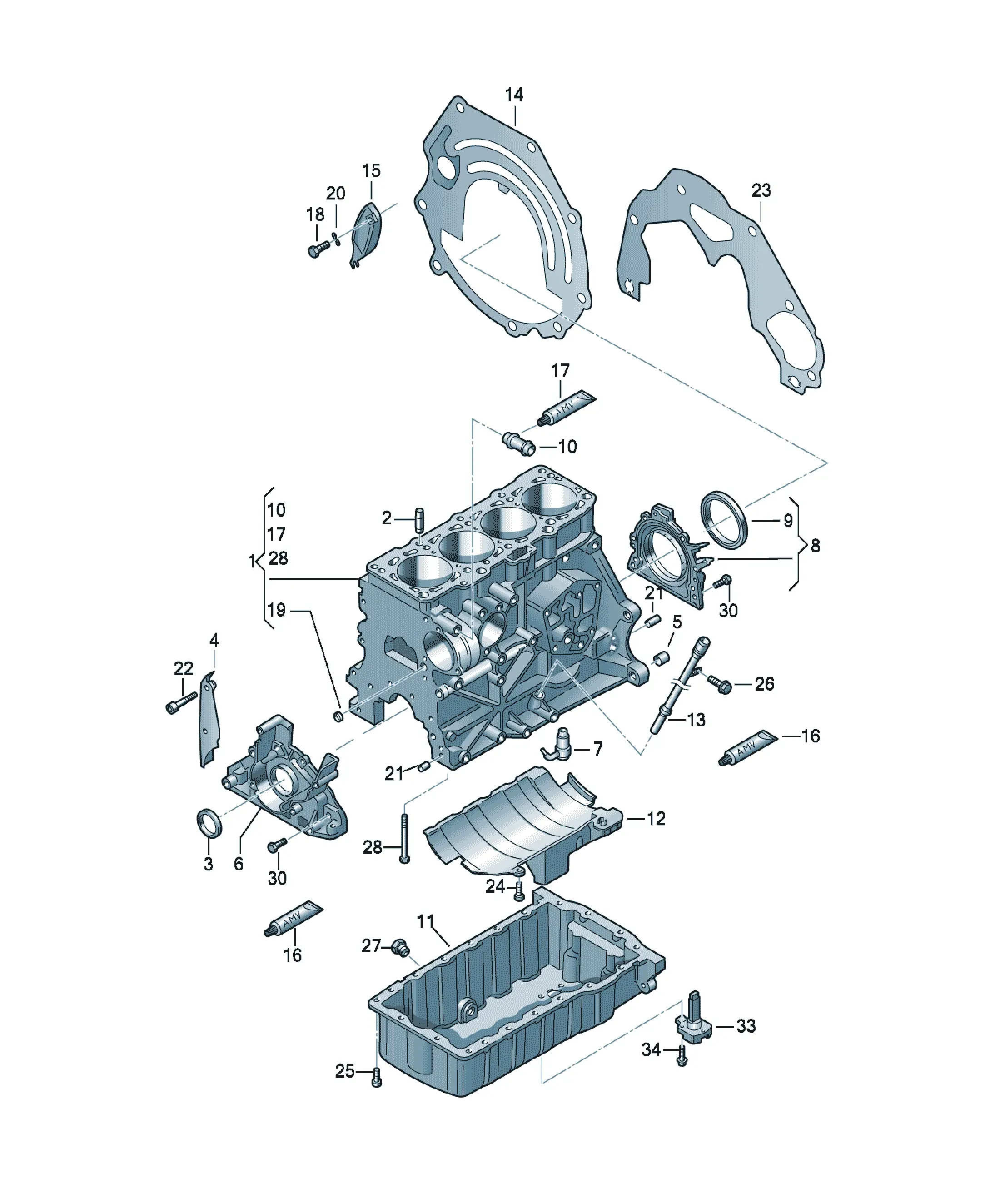

Cylinder block

[Name] [QTY]

Crankcase housing 1

[Name] [QTY]

Pipe union 1

[Name] [QTY]

Engine oil sump with opening for oil level sensor 1

[Name]

Not for this model

[Name] [Note]

see illustration: 115-050

Use item: 17

[Name] [Note] [Model info] [QTY]

Spacer ring 5,5MM 6-speed man. gearbox 1

[Name] [Note] [Model info] [QTY]

Spacer ring 5,5MM Automatic infin. gears 1

[Name] [Note] [QTY]

Silicone sealant 93G X

Replacements: D 176404M2

[Name] [Note] [QTY]

Locking fluid 18ML 1

Replacements: D 200005A2

[Name] [Note] [QTY]

End cap 14 5

[Name] [Note] [QTY]

dowel sleeve 14,15X21 2

[Name] [Note] [QTY]

Cylinder pin 8X14 4

[Name] [Note] [QTY]

Socket head bolt M10X60 2

[Name] [QTY]

Spacer plate 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X28 18

[Name] [Note] [QTY]

Hexagon bolt M10X95 2

[Name] [Note] [QTY]

Hex collared bolt M6X16 1

[Name] [Note] [QTY]

Seal bolt with sealing ring M14X1,5X22-TC- 1

S20

[Name] [Note] [QTY]

Hexagon bolt M10X80 10

Replacements: WHT006458

[Name] [Note] [QTY]

Shaft oil seal 35X48X10 1

[Name] [Note] [QTY]

hexagon socket head bolt with shoulder M7X21,5 12

[Name] [Note]

oil level sensor

see illustration: 919-040

Use item: 6

[Name] [Note]

see illustration: 919-040

Use item: 15

[Name] [QTY]

Cover 1

[Name] [Note] [QTY]

dowel sleeve 16X18,8 2

[Name] [Model info] [QTY]

Sealing flange BLB,BNA,BRE,

BRF,BVG 1

Replacements: 03G103153E

[Name] [Note] [QTY]

oil spray jet M10 4

Replacements: 038103157C

[Name] [Note] [QTY]

Sealing flange with sealing ring and trigger wheel rear 1
