Temperature sensor

Cooling system flange

Assembly diagrams

15 diagrams

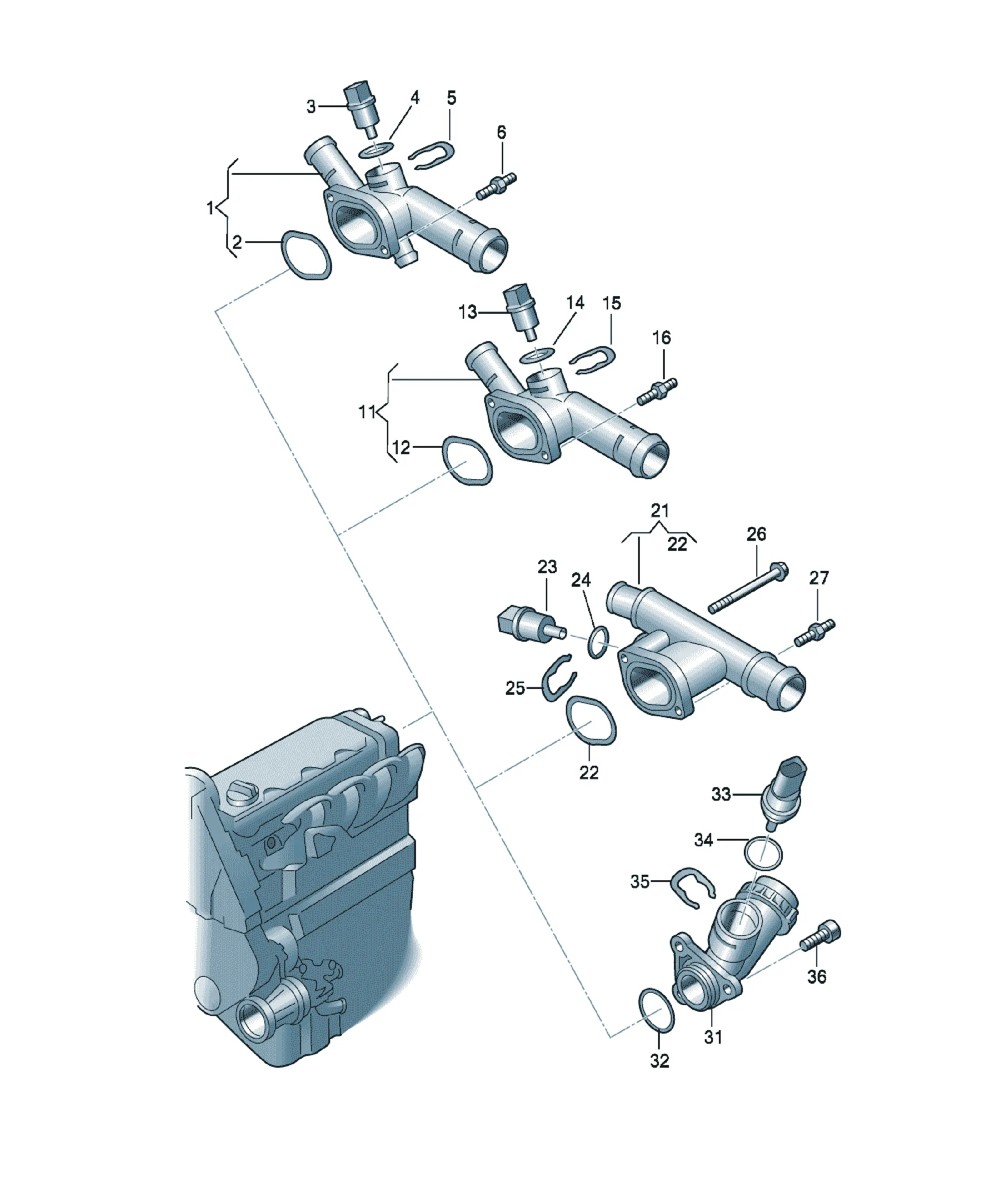

Cooling system flange diagram

Parts

7 parts

038121132G Offers

[Name] [QTY]
flange with sealing ring 1
037121688 Offers

[Name] [Note] [QTY]
seal ring 50X3,15 1
06A919501A Offers

[Name] [Note] [QTY]
Coolant temperature sender 2 pin 1
Replacements: 05C919501
mating connector
1J0973702 Flat contact housing with contact locking mechanism 2 pin 1
8K0973702 Flat contact housing with contact locking mechanism 2 pin 1
black
N90316801 Offers

[Name] [Note] [QTY]
O-ring 19,6X3,65 1
032121142 Offers

[Name] [QTY]
retaining spring 1
N10414501 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M6X75X37 1
Replacements: N 10414502
N91004802 Offers

[Name] [Note] [QTY]
double stud with hexagon drive M6X22/M6X12 1
