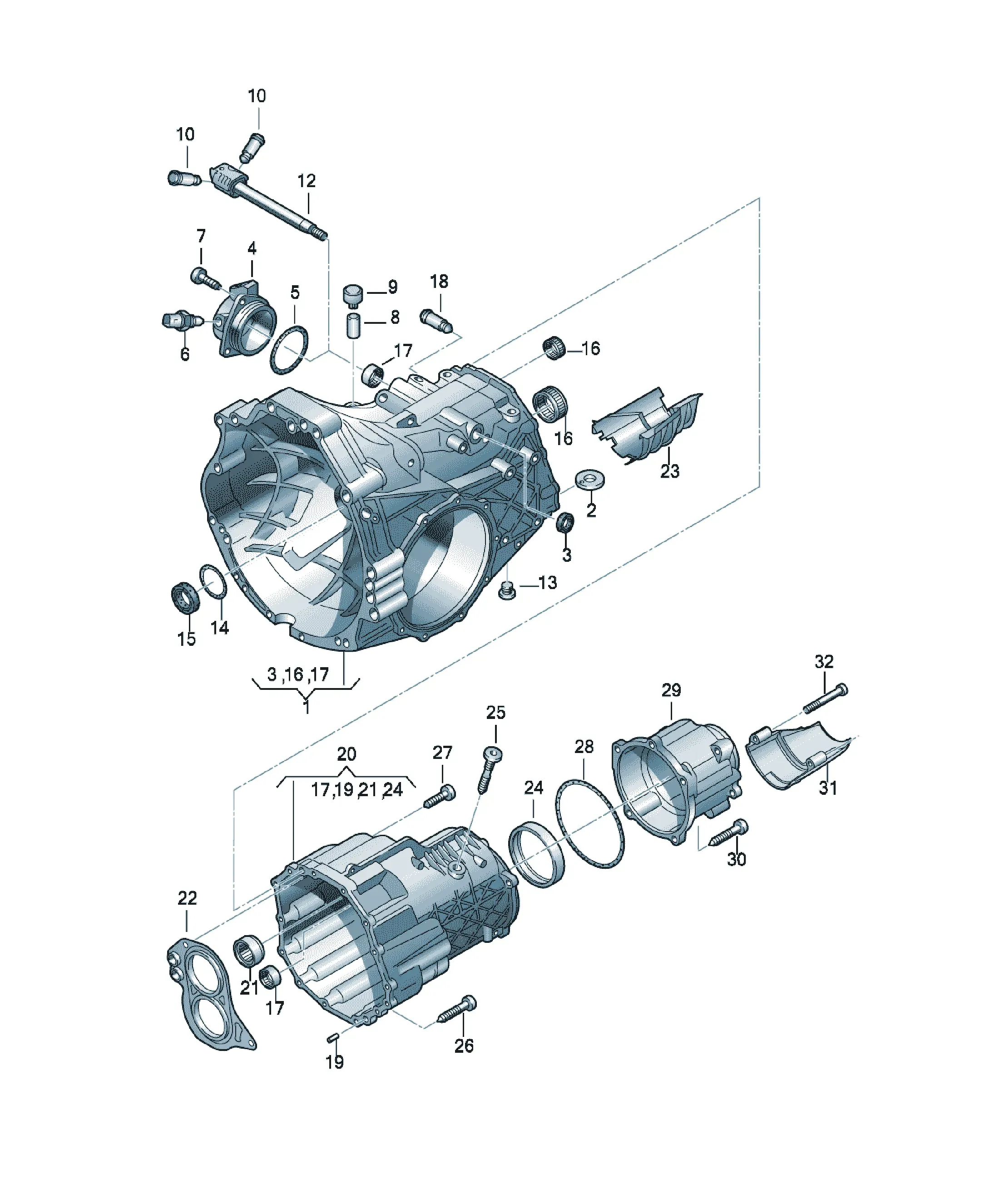

Gearbox housing

[Name] [Note] [QTY]

Cylinder pin 12X50 1

[Name] [Note] [QTY]

Gear housing 1

use if required: WHT 000 338 1

Accompanying details: WHT000338

[Name] [Note] [QTY]

locking sleeve silver 2

[Name] [Note]

Selector shaft with sel. cyl.

see illustration: 311-095

[Name] [Note] [QTY]

sealing plug M22X1,5 1

[Name] [Note]

O-ring

see illustration: 141-060

[Name] [QTY]

radial shaft seal 1

[Name] [Note] [QTY]

Needle bush 1

see illustration: 311-095

[Name] [Note] [QTY]

Ball sleeve 4

see illustration: 311-095

[Name] [Note] [QTY]

locking sleeve silver 2

[Name] [Note] [QTY]

Cylinder pin 10X23,5 1

[Name] [QTY]

Magnet 1

[Name] [QTY]

Gearbox cover 1

[Name] [Note] [QTY]

roller sleeve 25,5X44X22,75 1

[Name] [QTY]

Side member 1

[Name] [QTY]

Oil channel sump 1

[Name] [Note] [QTY]

Needle bush 75X83X16 1

[Name] [Note] [QTY]

Hex socket head locating bolt M8X56 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X48 13

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X30 2

[Name] [Note] [QTY]

O-ring 126,5X3 1

[Name] [QTY]

Housing for centre differential 1

[Name] [Note] [QTY]

Shaft oil seal 16X24X6 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X48 13

[Name] [QTY]

Guard plate 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X55 2

G 27 06 6>>

[Name] [QTY]

Cover for selector shaft 1

[Name] [QTY]

O-ring 1

[Name] [Note] [QTY]

switch for reversing light M14X1,5 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M8X22 3

[Name] [Note] [QTY]

Sleeve 12X30 1

[Name] [QTY]

Cap for venting the gearbox 1
