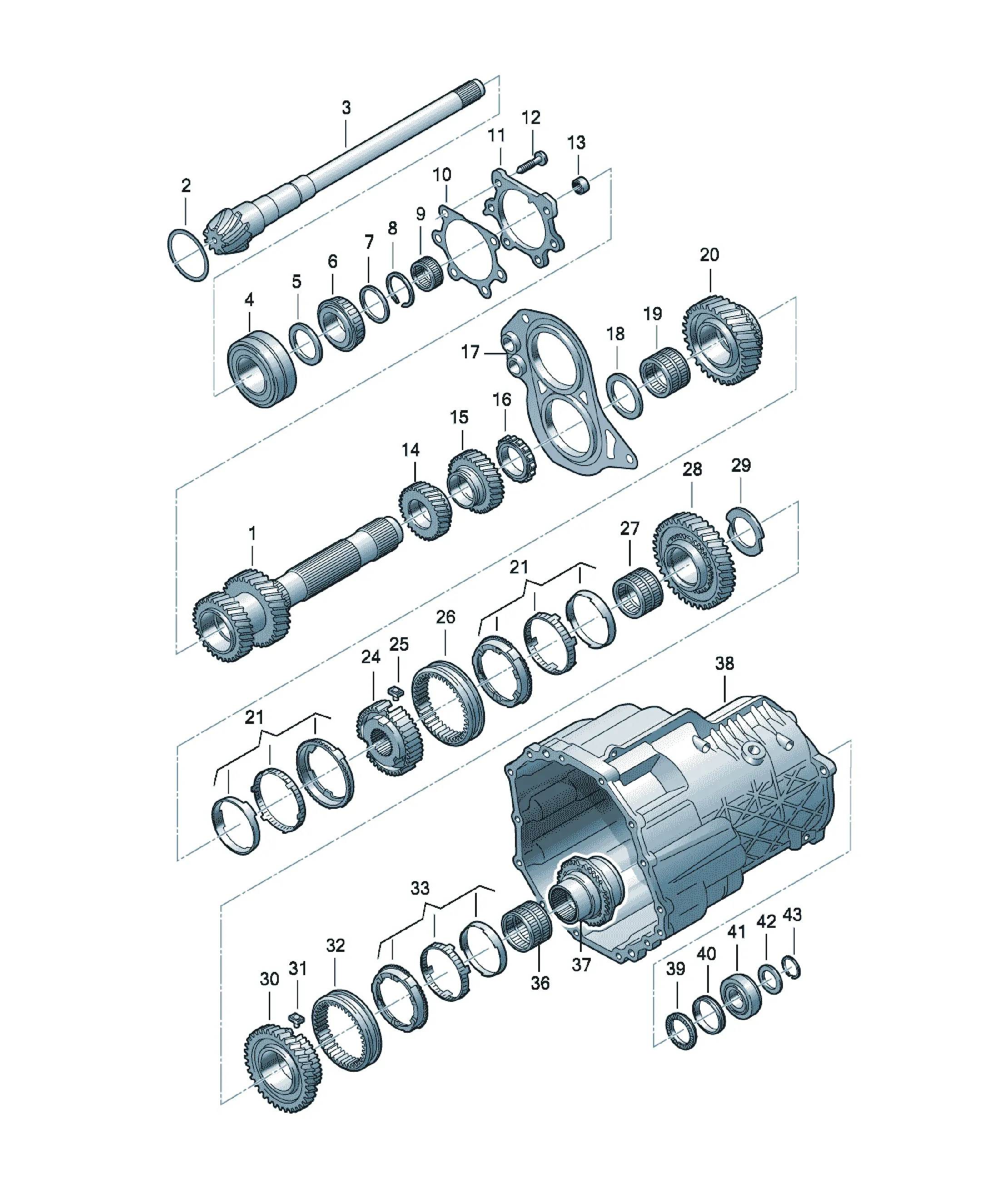

Transmission output shaft

Assembly diagrams

4 diagrams

Parts

103 parts

0A3311925B Offers

[Name] [Note] [QTY]
Hollow output shaft Z=37/30 1
3./4.gear
0A2311674C Offers

[Name] [Note] [QTY]
fitted washer 0,65 X
0A2311674D Offers

[Name] [Note] [QTY]
fitted washer 0,7 X
0A2311674B Offers

[Name] [Note] [QTY]
fitted washer 0,6 X
0A2311674A Offers

[Name] [Note] [QTY]
fitted washer 0,55 X
0A2311674 Offers

[Name] [Note] [QTY]
fitted washer 0,5 X
0A2311674J Offers

[Name] [Note] [QTY]
fitted washer 0,95 X
0A2311674H Offers

[Name] [Note] [QTY]
fitted washer 0,9 X
0A2311674G Offers

[Name] [Note] [QTY]
fitted washer 0,85 X
0A2311674F Offers

[Name] [Note] [QTY]
fitted washer 0,8 X
0A2311674E Offers

[Name] [Note] [QTY]
fitted washer 0,75 X
0A2311594 Offers

[Name] [QTY]
Retaining plate 1
0A2326117B Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M10X45 1
01E311807 Offers

[Name] [Note] [QTY]
Needle bush 12X18X12 1
0A3311352B Offers

[Name] [Note] [QTY]
gear 6th gear 1
28/53
0A2311348A Offers

[Name] [Note] [QTY]
gear 5-speed 1
Z=29/44
0A2311219 Offers

[Name] [Note] [QTY]
cylinder roller bearing 45X69X15,95 1
[Name] [Note]
Side member
see illustration: 301-075
0A2311154C Offers

[Name] [Note] [QTY]
adjusting washer 4,4 X
0A2311154B Offers

[Name] [Note] [QTY]
adjusting washer 4,3 X
0A2311154A Offers

[Name] [Note] [QTY]
adjusting washer 4,2 X
0A2311154F Offers

[Name] [Note] [QTY]
adjusting washer 4,7 X
0A2311154G Offers

[Name] [Note] [QTY]
adjusting washer 4,8 X
0A2311154E Offers

[Name] [Note] [QTY]
adjusting washer 4,6 X
0A2311154 Offers

[Name] [Note] [QTY]
adjusting washer 4,1 X
0A2311154D Offers

[Name] [Note] [QTY]
adjusting washer 4,5 X
0A2311370B Offers

[Name] [Note] [QTY]
needle bearing - 2.gear 1
45X57X30
0A2311673E Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,8 X
0A2311673A Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,6 X
0A2311673B Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,65 X
0A2311673C Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,7 X
0A2311673D Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,75 X
0A2311673F Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,85 X
0A2311673G Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,9 X
0A2311673H Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,95 X
0A2311673J Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X1,0 X
0A2311673K Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X1,05 X
0A2311673 Offers

[Name] [Note] [QTY]
adjusting washer 85,1X93X0,55 X
0A2311261B Offers

[Name] [Note] [QTY]
change gear 2.gear 1
Z=41/20
0A2311283 Offers

[Name] [Note] [QTY]
synchronizer ring 1./2.gear 2
Items supplied
synchronizer ring 1
Conical ring 2
0A2311243B Offers

[Name] [Note] [QTY]
synchronizing hub 1./2.gear 1
0A2301246 Offers

[Name] [QTY]
thrust piece 3
0A2311255A Offers

[Name] [Note] [Model info] [QTY]
Sliding sleeve 1./2.gear GVB 1
Replacements: 0A2311255C
0A2311255C Offers

[Name] [Note] [Model info] [QTY]
Sliding sleeve 1./2.gear HVE,JMG 1
0A2311117A Offers

[Name] [Note] [QTY]
needle bearing - 1.gear 1
42,8X57X30
0A2311253 Offers

[Name] [Note] [QTY]
change gear 1.gear 1
Z=33/9
0A2311873 Offers

[Name] [QTY]
thrust washer 1
[Name] [Note]
Output shaft
see illustration: 409-040
0A2311217C Offers

[Name] [Note] [QTY]
sliding wheel for reverse gear Z=30/9 1
0A2301246 Offers

[Name] [QTY]
thrust piece 3
0A2311764B Offers

[Name] [Note] [QTY]
synchronizing hub Reverse gear 1
0A2311283B Offers

[Name] [Note] [QTY]
synchronizer ring Reverse gear 1
Items supplied
comprising:
0A2311207 Offers

[Name] [Note] [QTY]
needle bearing - Reverse gear 1
53X58X26,8
0A3311288 Offers

[Name] [Note] [QTY]
Clutch body Reverse gear 1
[Name] [Note]
Transmission housing cover
see illustration: 301-075
0A3311495 Offers

[Name] [Note] [QTY]
Double hexagon nut M38X1,25 1
0A3311133 Offers

[Name] [Note] [QTY]
duoble ball bearing 48X93X37 2
0A3311876C Offers

[Name] [QTY]
Spacer ring 1
0A3311375 Offers

[Name] [Note] [QTY]
Taper roller bearing 28X61X18,2 1
0A3311674E Offers

[Name] [Note] [QTY]
fitted washer 1,2 X
0A3311674D Offers

[Name] [Note] [QTY]
fitted washer 1,1 X
0A3311674C Offers

[Name] [Note] [QTY]
fitted washer 1.0 X
0A3311674F Offers

[Name] [Note] [QTY]
fitted washer 1,3 X
0A3311674A Offers

[Name] [Note] [QTY]
fitted washer 0,8 X
0A3311674 Offers

[Name] [Note] [QTY]
fitted washer 0,7 X
0A3311674B Offers

[Name] [Note] [QTY]
fitted washer 0,9 X
0A3311377C Offers

[Name] [Note] [QTY]
Securing ring 26,5X1,85 X
0A3311377D Offers

[Name] [Note] [QTY]
Securing ring 26,5X1,9 X
0A3311377 Offers

[Name] [Note] [QTY]
Securing ring 26,5X1,7 X
0A3311377A Offers

[Name] [Note] [QTY]
Securing ring 26,5X1,75 X
0A3311377B Offers

[Name] [Note] [QTY]
Securing ring 26,5X1,8 X
0A3311817C Offers

[Name] [Note] [QTY]
adjusting washer 2,6 X
0A3311817A Offers

[Name] [Note] [QTY]
adjusting washer 2,4 X
0A3311817 Offers

[Name] [Note] [QTY]
adjusting washer 2,3 X
0A3311817E Offers

[Name] [Note] [QTY]
adjusting washer 2,8 X
0A3311817B Offers

[Name] [Note] [QTY]
adjusting washer 2,5 X
0A3311817D Offers

[Name] [Note] [QTY]
adjusting washer 2,7 X
0A3311427 Offers

[Name] [Note] [QTY]
Taper roller bearing 38X59X18,3 1
0A3311673 Offers

[Name] [Note] [QTY]
fitted washer 38X44X2 1
0A3311327AB Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,5 X
0A3311327AC Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,55 X
0A3311327M Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,1 X
0A3311327 Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,5 X
0A3311327A Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,55 X
0A3311327B Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,6 X
0A3311327D Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,7 X
0A3311327E Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,75 X
0A3311327F Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,8 X
0A3311327G Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,85 X
0A3311327H Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,9 X
0A3311327J Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,95 X
0A3311327K Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,0 X
0A3311327L Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,05 X
0A3311327C Offers

[Name] [Note] [QTY]
Securing ring 41,6X1,65 X
0A3311327N Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,15 X
0A3311327P Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,2 X
0A3311327Q Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,25 X
0A3311327R Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,3 X
0A3311327S Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,35 X
0A3311327T Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,4 X
0A3311327AA Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,45 X
0A3311327AD Offers

[Name] [Note] [QTY]
Securing ring 41,6X2,6 X
01E311931 Offers

[Name] [Note] [QTY]
needle bearing - 16X33X28 1
