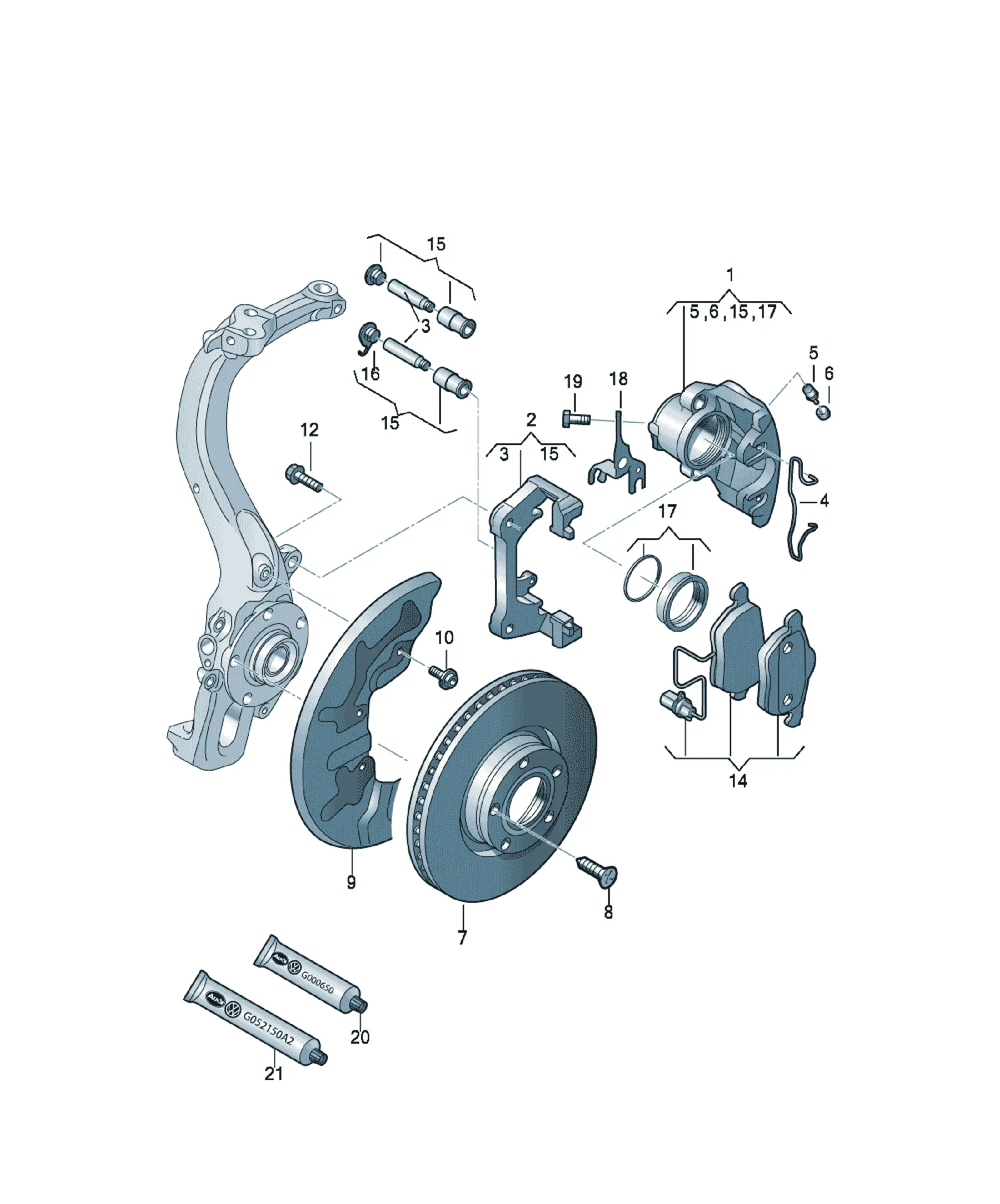

Brake caliper

[Name] [Note] [QTY]

1 set brake discs with brake pads front 1

repair set

4F0615301D Brake disc (vented) 314X25 5/112 2

8E0698151K 1 set: brake pads with wear indicator for disc brake 288X25MM 1

312X25MM

front

N 90876802 bolt,hex.hd.with shoul.(combi) M14X1,5X38 4

N 10648301 Hex socket countersunk bolt M6X16 2

[Name] [Note] [QTY]

Brake caliper housing left 1

Items supplied

guide bush 2

[Name] [Note] [QTY]

Brake caliper housing right 1

Items supplied

guide bush 2

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X12 8

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M14X1,5X38 4

[Name] [Note] [QTY]

1 set: brake pads with wear indicator for disc brake 314X25MM 1

Replacements: 8E0698151T

repair set

8E0615115L disc brake pad outer 2

8E0615116K brake lining with cable left inner 1

8E0615116L brake lining with cable right inner 1

[Name] [QTY]

1 set: guide bushes 2

Replacements: 8V0698647

repair set

Damping sleeve 2

Bungs 1

4A0615134A Cap with cable holder 1

[Name] [QTY]

Cap with cable holder X

Replacements: 5K0615134

[Name] [QTY]

Set of gaskets for brake caliper housing 2

repair set

Protective cap 1

Seal 1

[Name] [Note]

Retainer for brake hose

see illustration: 611-020

[Name] [Note]

Hexagon bolt

see illustration: 611-020

[Name] [QTY]

brake carrier with pad retaining pin 2

[Name] [Note] [QTY]

Solid lubricant paste 100G X

[Name] [Note] [QTY]

Lithium lubricating grease 180G X

[Name] [QTY]

guide pin 4

[Name] [QTY]

retaining spring 2

[Name] [QTY]

Breather valve 2

[Name] [QTY]

dust cap 2

[Name] [Note] [QTY]

Brake disc (vented) 314X25MM 5/112 2

[Name] [Note] [QTY]

Hex socket countersunk bolt M6X16 2

[Name] [Note] [QTY]

Cover plate for brake disc left 1

[Name] [Note] [QTY]

Cover plate for brake disc right 1
