Electrical system

Radiator fan

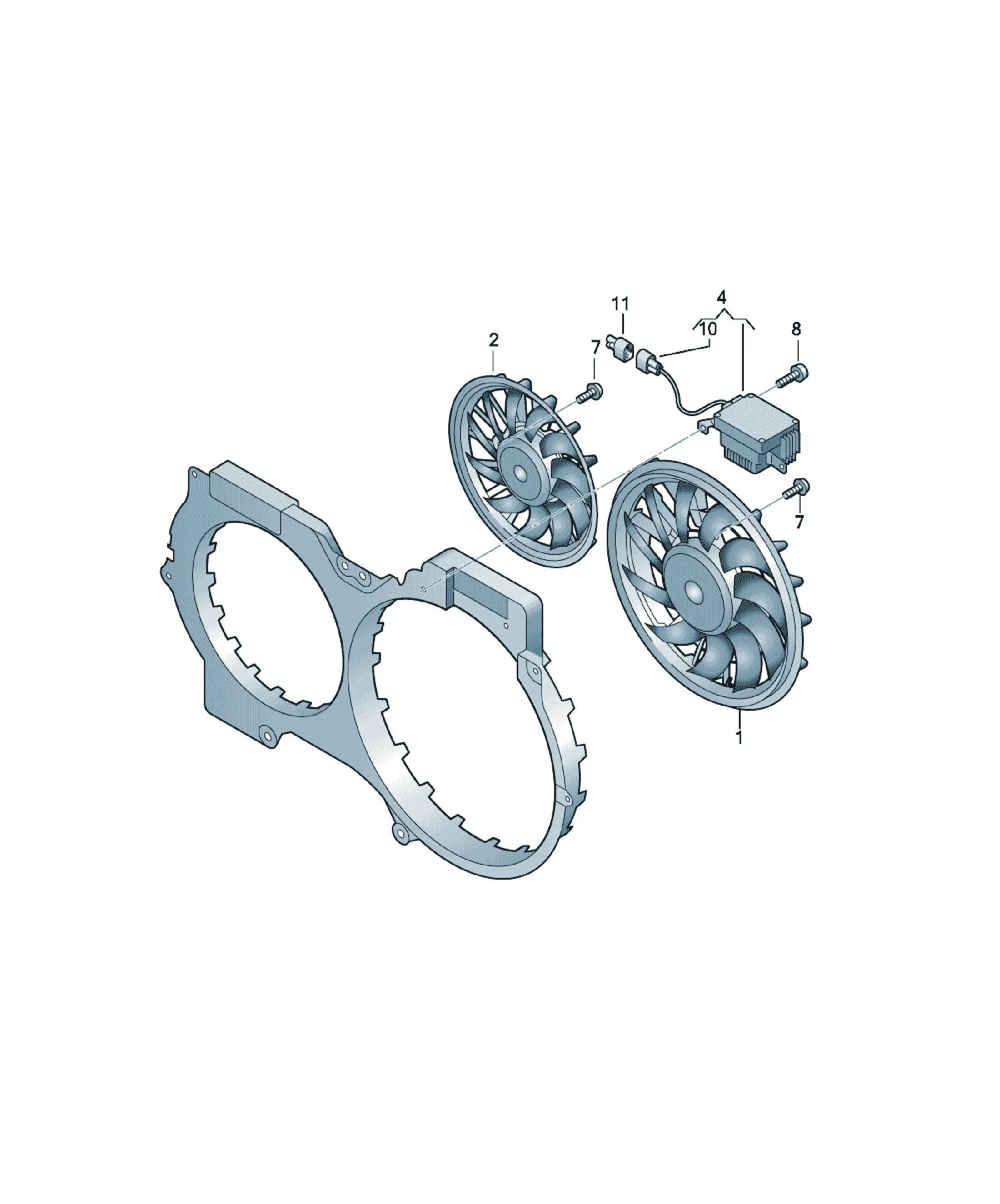

Assembly diagrams

2 diagrams

Parts

26 parts

4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 400W 383MM BBJ,AUK,BKH, 1
left BYU,BDX
4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 400W 383MM BLB,BNA,BRE, 1
left BRF,BPJ,BVG,
BYK
4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 400W 383MM BLB,BNA,BRE, 1
BRF,BPJ,BVG,
BYK
4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan
F >> 4F-7-020 171* 400W 383MM BDW 1
left
4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 400W 383MM BDW 1
D - 26.06.2006>> left
4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 400W 383MM BBJ,AUK,BKH, 1
BYU,BDX
4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan
F >> 4F-7-020 171* 400W 383MM BDW 1
4F0959455 Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 400W 383MM BDW,BBJ,AUK, 1
left BKH,BYU,BDX
1J0906444 Offers

[Name] [Note] [QTY]
flat connector housing 4 pin 1
mating connector
1J0906234 Flat contact housing 4 pin 1
black
1K0906234 Flat contact housing 4 pin 1
black
Possible single wire:
000979024E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979136E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Flat male connector with detent lug 4,8
000979228E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 2,5
Flat male connector with detent lug 4,8
000979307E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+105C
Flat male connector with detent lug 4,8
000979418E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X
-40C/+125C
with cable crosssection: 6,0
flat connector 9,5
1J0906234 Offers

[Name] [Note] [QTY]
Flat contact housing 4 pin 1
mating connector
1J0906444 flat connector housing 4 pin 1
Possible single wire:
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X
-40C/+125C
with cable crosssection: 6,0
flat contact with retaining lug 4,8
000979412E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' X
-40C/+125C
with cable crosssection: 6,0
flat contact 9,5
000979417E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+125C
with cable crosssection: 6,0
flat contact 9,5
000979500AA Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
single wiring seal 1K0 972 744
000979500AF Single lead with 1 contact in the bag 1500MM X
-40C/+105C
with cable crosssection: 10QMM
Cable colour: yellow
4F0959455A Offers

[Name] [Note] [Model info] [QTY]
Radiator fan
F >> 4F-7-020 171* 200W 280MM BDW 1
right
4F0959455A Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 200W 280MM BLB,BNA,BRE, 1
right BRF,BPJ,BVG,
BYK
4F0959455A Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 200W 280MM BDW,BBJ,AUK, 1
right BKH,BYU,BDX
4F0959455A Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 200W 280MM BBJ,AUK,BKH, 1
right BYU,BDX
4F0959455A Offers

[Name] [Note] [Model info] [QTY]
Radiator fan 200W 280MM BDW 1
D - 26.06.2006>> right
4F0959501G Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan
D - 26.06.2006>> 600W BDW 1
mating connector
1J0906234 Flat contact housing 4 pin 1
black
4F0959501F Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan 400W BBJ,AUK,BKH, 1
BYU,BDX
mating connector
1J0906234 Flat contact housing 4 pin 1
black
4F0959501F Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan
F >> 4F-7-020 171* 400W BDW 1
mating connector
1J0906234 Flat contact housing 4 pin 1
black
4F0959501G Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan 600W BDW,BBJ,AUK, 1
BKH,BYU,BDX
mating connector
1J0906234 Flat contact housing 4 pin 1
black
4F0959501G Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan 600W BBJ,AUK,BKH, 1
BYU,BDX
mating connector
1J0906234 Flat contact housing 4 pin 1
black
4F0959501G Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan
F >> 4F-7-020 171* 600W BDW 1
mating connector
1J0906234 Flat contact housing 4 pin 1
black
4F0959501F Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan 400W BLB,BNA,BRE, 1
BRF,BPJ,BVG,
BYK
mating connector
1J0906234 Flat contact housing 4 pin 1
black
4F0959501G Offers

[Name] [Note] [Model info] [QTY]
Control unit for radiator fan 600W BLB,BNA,BRE, 1
BRF,BPJ,BVG,
BYK
mating connector
1J0906234 Flat contact housing 4 pin 1
black
N90785002 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M5X14,5 3
[Name] [QTY]
No replacement part 2
[Name]
No replacement part
