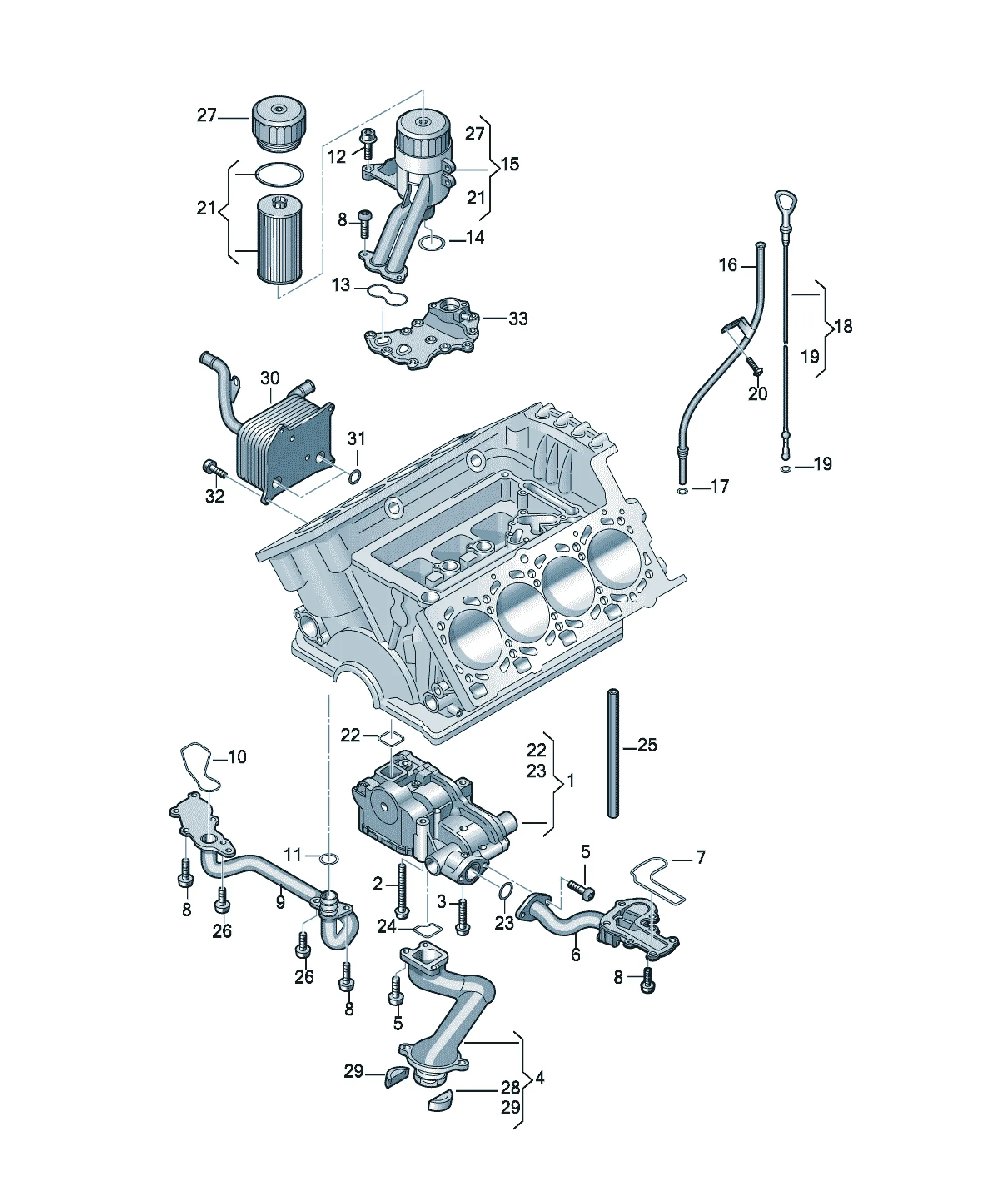

Oil pump

[Name] [Note] [QTY]

sealing plug M10X1X10 1

[Name] [Note] [QTY]

seal ring 10X14 1

[Name] [QTY]

oil pump 1

[Name] [Note] [QTY]

Seal 19X2,5 2

[Name] [Note] [QTY]

O-ring 20X2,5 1

[Name] [Note] [QTY]

Hexagon socket head bolt M8X40 2

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

O-ring 22X3,55 1

[Name] [QTY]

Oil filter bracket 1

[Name] [QTY]

tube for oil dipstick 1

[Name] [Note] [QTY]

O-ring 12X2 1

[Name] [QTY]

Oil dipstick 1

[Name] [Note] [QTY]

O-ring 5X1,9 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X55 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16-H 2

[Name] [QTY]

filter element with gasket 1

Replacements: 079198405E

repair set

079115561F oil filter 1

N 90782302 O-ring 71X3,50 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Seal

Intake connection

F >> 4F-8-075 000* 1

[Name] [QTY]

Input shaft

for oil pump

F >> 4F-8-030 000* 1

Replacements: 079115120T; 079109481C

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 13

[Name] [QTY]

End cap 1

Replacements: 079115433D

[Name] [QTY]

Protective cap 1

[Name] [QTY]

Protective cap 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X90X70 2

[Name] [QTY]

Oil cooler 1

Replacements: 079117015P

[Name] [Note] [QTY]

O-ring 24X2,5 2

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 13

[Name] [Note] [QTY]

Intake connection

F >> 4F-8-075 000* 1

also use: 079 115 131 B 1

Accompanying details: 079115131B

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X25

F >> 4F-8-075 000* 3

[Name] [QTY]

oil pipe 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X18 2

[Name] [Note] [QTY]

Oval socket head bolt with hex drive M6X18 13

[Name] [QTY]

oil pipe 1
