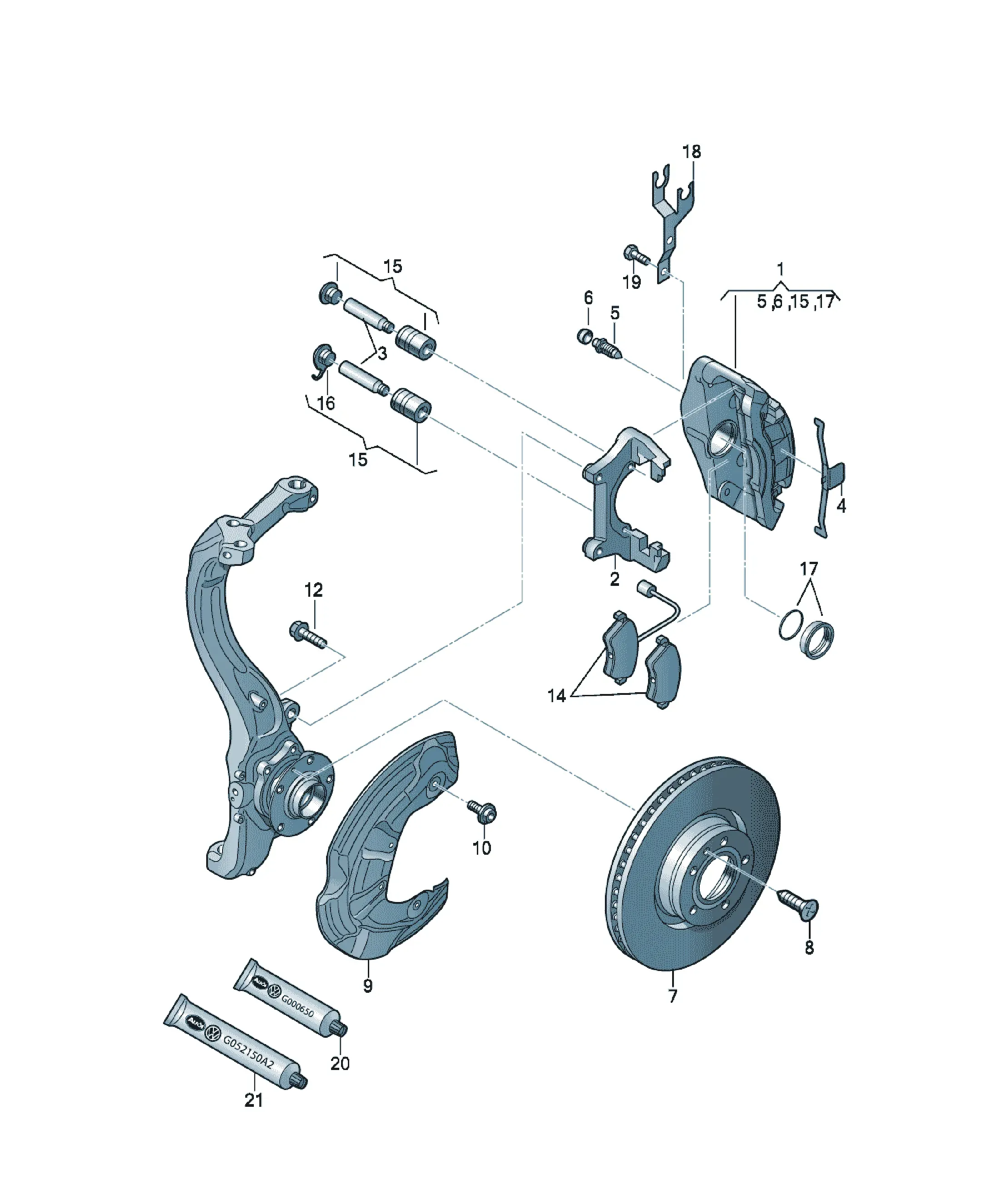

Brake caliper

[Name] [Note] [QTY]

Brake caliper housing right 1

[Name] [Note] [QTY]

Brake caliper housing right 1

[Name] [Note] [QTY]

Brake caliper housing left 1

[Name] [Note] [QTY]

Brake caliper housing left 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 8

[Name] [Note] [QTY]

bolt,hex.hd.with shoul.(combi) M14X1,5X38 4

[Name] [Note] [QTY]

1 set: brake pads with wear indicator for disc brake 347X30MM 1

Replacements: 8E0698151AA

repair set

8E0615115K disc brake pad outer 2

8E0615116J brake lining with cable inner 2

sender wire (pad wear indicator)

[Name] [Note] [QTY]

1 set: brake pads with wear indicator for disc brake 321X30MM 1

Replacements: 4F0698151Q

repair set

4F0615115D Brake lining outer 2

4F0615116F brake lining with cable inner 2

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

1 set: guide bushes 2

Replacements: 8V0698647

repair set

Damping sleeve 2

Bungs 1

4A0615134A Cap with cable holder 1

[Name] [QTY]

Cap with cable holder X

Replacements: 5K0615134

[Name] [QTY]

Set of gaskets for brake caliper housing 2

repair set

Protective cap 1

seal ring 1

[Name] [Note]

Bracket

see illustration: 611-020

[Name] [Note]

Hexagon bolt

see illustration: 611-020

[Name] [QTY]

calliper carrier 2

[Name] [QTY]

calliper carrier 2

[Name] [Note] [QTY]

Solid lubricant paste 100G X

[Name] [Note] [QTY]

Lithium lubricating grease 180G X

[Name] [QTY]

guide pin 4

[Name] [QTY]

retaining spring 2

[Name] [QTY]

Breather valve 2

[Name] [QTY]

dust cap 2

[Name] [Note] [QTY]

Brake disc (vented) 347X30MM 5/112 2

[Name] [Note] [QTY]

Brake disc (vented) 321X30MM 5/112 2

[Name] [Note] [QTY]

Hex socket countersunk bolt M6X16 2

[Name] [Note] [QTY]

Cover plate for brake disc right 1

[Name] [Note] [QTY]

Cover plate for brake disc left 1
