Compressor

A/C compressor

Assembly diagrams

4 diagrams

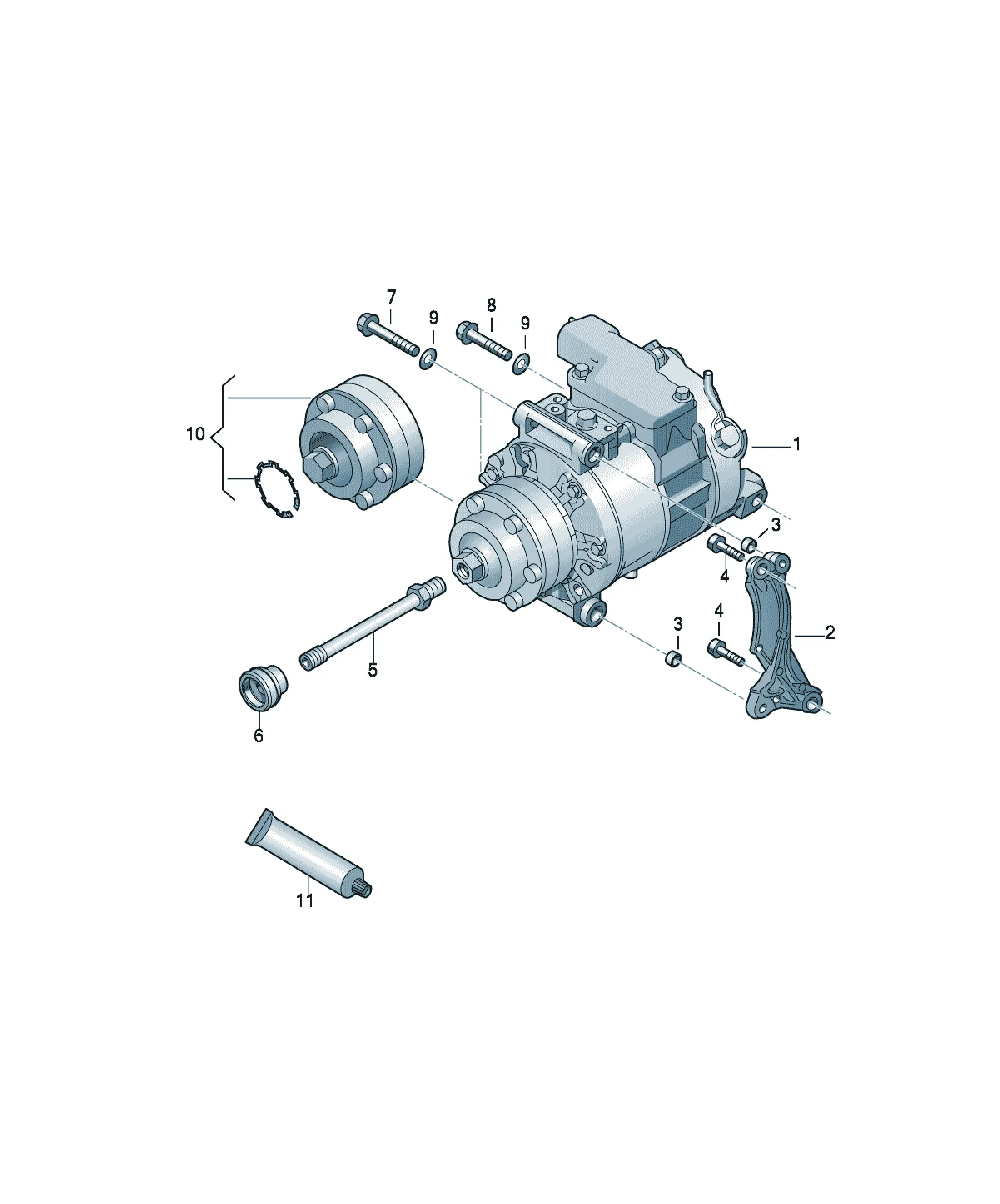

A/C compressor diagram

Parts

16 parts

Cable holder
8E0971845P Offers

[Name] [QTY]
Bracket 1
Хомут
N10207701 Offers

[Name] [Note] [QTY]
clamp 34,6X7X0,6 1
4F0260805AH Offers

[Name] [Note] [QTY]
A/C compressor DENSO 1
[Name]
No replacement part
[Name]
pulley
No replacement part
G000100 Offers

[Name] [Note] [QTY]
Grease for clutch plate splines 80G 1
07L260885G Offers

[Name] [QTY]
Bracket for A/C compressor 1
079260885B Offers

[Name] [QTY]
Bracket 1
A/C compressor
07K260817 Offers

[Name] [Note] [QTY]
Centre sleeve 11,15X6,5 2
Replacements: 03L260817
N91128701 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X32 2
079260095D Offers

[Name] [QTY]
Input shaft 1
07L260095C Offers

[Name] [QTY]
Input shaft 1
079260753B Offers

[Name] [QTY]
Grommet 1
N10027004 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X90 3
N10585002 Offers

[Name] [Note] [QTY]
Hexagon bolt M8X110X41 1
N0152785 Offers

[Name] [Note] [QTY]
Washer 8X16X2 1
