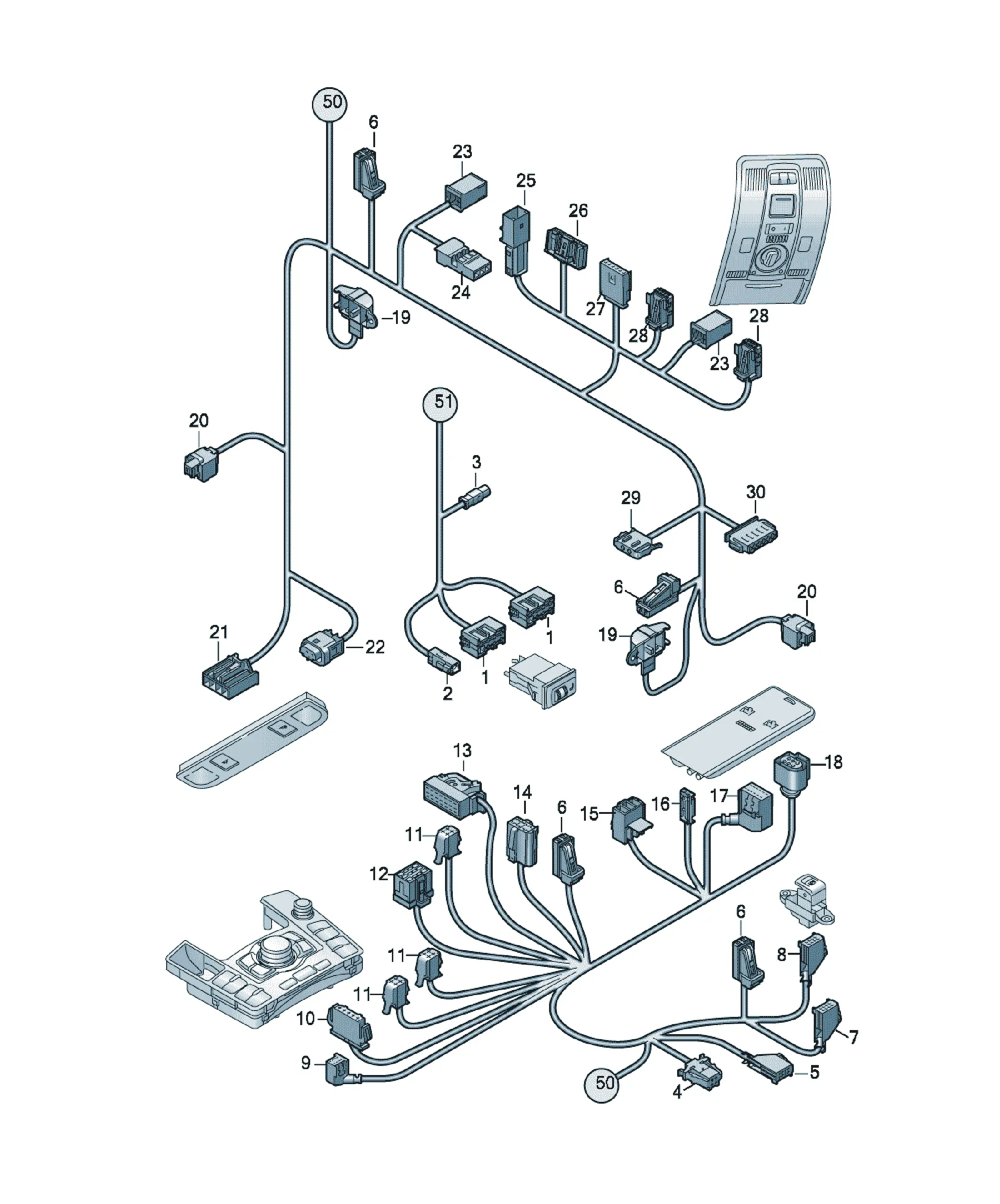

Electrical connectors

[Name]

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

------------------------------

[Name] [Note]

Cable guide

and

relay plate

see illustration: 971-080

[Name] [Note]

adapter aerial wire

see catalogue: electr.connec- ting elements

[Name] [Note]

wiring harness for speed sensor

see illustration: 927-000

[Name] [Note] [QTY]

Flat contact housing 7 pin 2

Connection piece black

switch with rheostat for seat heating rear

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [Model info] [QTY]

Flat contact housing 5 pin 1

Connection piece

components for special electrical functions

taxi

mating connector

893971995 Flat contact housing 5 pin 1

4B0971995 flat connector housing 5 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [Model info] [QTY]

Flat contact housing 4 pin 3

Connection piece

components for special electrical functions

police

Replacements: 1J0971974

mating connector

1J0972732 Flat contact housing 4 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [Model info] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

black

only to be used for: green

Connection piece

components for special electrical functions

taxi

mating connector

4F0937743 Flat connector housing with contact locking mechanism 10 pin 1

black

also to be used for: violet

green

Possible single wire:

000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X

-40C/+125C

flat contact with retaining lug 0,5

1,5

GEGENSTUECK

000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 1,5

000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

(Copper wires galvanised)

000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 1,5

000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X

-40C/+105C

flat contact with retaining lug 1,5

000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 2,8

000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact with retaining lug 2,8

000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 2,8

000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

flat connector housing 75-pin 1

Control unit for airbag yellow/grey

Possible single wire:

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 3 pin 1

Connection piece transparent

Cigarette lighter

mating connector

357919321 Flat contact housing 3 pin "AUS" 1

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing 3 pin 1

Connection piece transparent

Cigarette lighter rear

mating connector

357919321 Flat contact housing 3 pin "AUS" 1

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

Connection piece black

Vent left a. right

mating connector

8E0972763 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

Connection piece black

Cellphone mounting holder

mating connector

4F0972112 Flat contact housing with contact locking mechanism 12 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

Combi sensor for acceleration and yaw rate

mating connector

3B0973813 Flat connector housing with contact locking mechanism 6 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat contact housing 2 pin 2

Connection piece black

for sun visor bearing left a. right

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Removable housing for aerial female connector 1 point 1

Connection piece

Cellphone mounting holder

mating connector

6Q0035575K Removable housing for aerial pin connector 1 point X

water blue

only to be used for: all colours

use if required aerial wire adapter:

000 098 692 X

Possible single wire:

Remove if required: 6Q0.035.576.K 1

------------------------------

000098650 Aerial connection line 300MM X

000098651 Aerial connection line 500MM X

000098652 Aerial connection line 1000MM X

000098652A Aerial connection line 1500MM X

000098653 Aerial connection line 2000MM X

000098653A Aerial connection line 2500MM X

000098654 Aerial connection line 3000MM X

000098654A Aerial connection line 3500MM X

000098655 Aerial connection line 4000MM X

000098655A Aerial connection line 4500MM X

000098656 Aerial connection line 5000MM X

000098656A Aerial connection line 5500MM X

000098657 Aerial connection line 6000MM X

000098657A Aerial connection line 6500MM X

000098658 Aerial connection line 7000MM X

000098658A Aerial connection line 7500MM X

000098659 Aerial connection line 8000MM X

000098703 aerial intermediate wire with earthing clip 300MM X

000098703A adapter aerial wire 300MM 1

[Name] [Note] [QTY]

Adapter cable loom 2 pin 2

also use: 000 979 940

Connection piece

Head airbag unit left a. right

Accompanying details: 000979940

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

interior light rear

mating connector

8E0972714 flat connector housing 4 pin 1

black

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

black

Connection piece

Aerial

for models with tyre pressure monitor (wireless radio sys.)

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 6 pin X

Connection piece black

interior light front 1

Interior mirror, automatic anti-dazzle

mating connector

8E0971834 Flat contact housing 6 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 3 pin 1

Connection piece black

Rain sensor

mating connector

1K0973333 Flat contact housing with contact locking mechanism 3 pin 1

black

3D0973332 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 1

Connection piece

microphone

for vehicles with bose sound system

mating connector

8D0972623AA Flat contact housing with contact locking mechanism 2 pin 1

black

4B0972623 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 12 pin 1

Connection piece black

interior light

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

flat connector housing 6 pin 1

Connection piece black

Controls for garage door operation

mating connector

4E0971980 Flat contact housing 6 pin X

black

4E0971980B Flat contact housing 6 pin X

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 4 pin X

Connection piece black

movement detector 1

Microphone for hands- free device

mating connector

8K0972994 flat connector housing 4 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

[Name] [Note] [QTY]

Flat contact housing 2 pin 1

Connection piece black

for solar sliding roof

mating connector

191972762 flat connector housing 2 pin 1

1J0972762 flat connector housing 2 pin 1

1H0972762 contact bridge 2 pin 1

Possible single wire:

000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 4,8

000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact with retaining lug 4,8

000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X

-40C/+125C

flat contact with retaining lug 4,8

000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X

-40C/+105C

flat contact with retaining lug 4,8

[Name] [Note] [QTY]

Removable housing for aerial pin connector 1 point 1

Coupling element

Aerial cable

for vehicles with telephone

mating connector

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

use if required aerial wire adapter:

000 098 703

000 098 703 A

[Name] [Note] [QTY]

Flat contact housing 6 pin 1

Connection piece black

Sliding roof motor

mating connector

893971996 flat connector housing 6 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing 4 pin 1

Connection piece black

Selector mechanism

mating connector

3B0972732 Flat contact housing 4 pin 1

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

black

Connection piece

Selector mechanism

mating connector

1K0971992 Flat connector housing with contact locking mechanism 10 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note]

Individual parts

area: Dash panel

see illustration: 971-081

[Name] [Note]

Individual parts

area: right

see illustration: 971-084

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin X

black

Connection piece

ashtray light front 1

Aerial for access and start authorisation (KESSY) 1

vanity light left a. right 2

mating connector

4E0972575 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing 8 pin 1

Connection piece black

Start/stop switch

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 10 pin 1

black

Connection piece

Switch for electromechanical parking brake -EPB-

mating connector

1K0971992 Flat connector housing with contact locking mechanism 10 pin 1

black

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 16 pin 1

Connection piece brown

Control panel

Replacements: 8W0972416

Possible single wire:

000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 E

000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63

counterpart to: 000 979 012 EA

000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

flat connector/sleeve with retaining lug 0,63
