Fuel pump, high-pressure pump (HPFP)

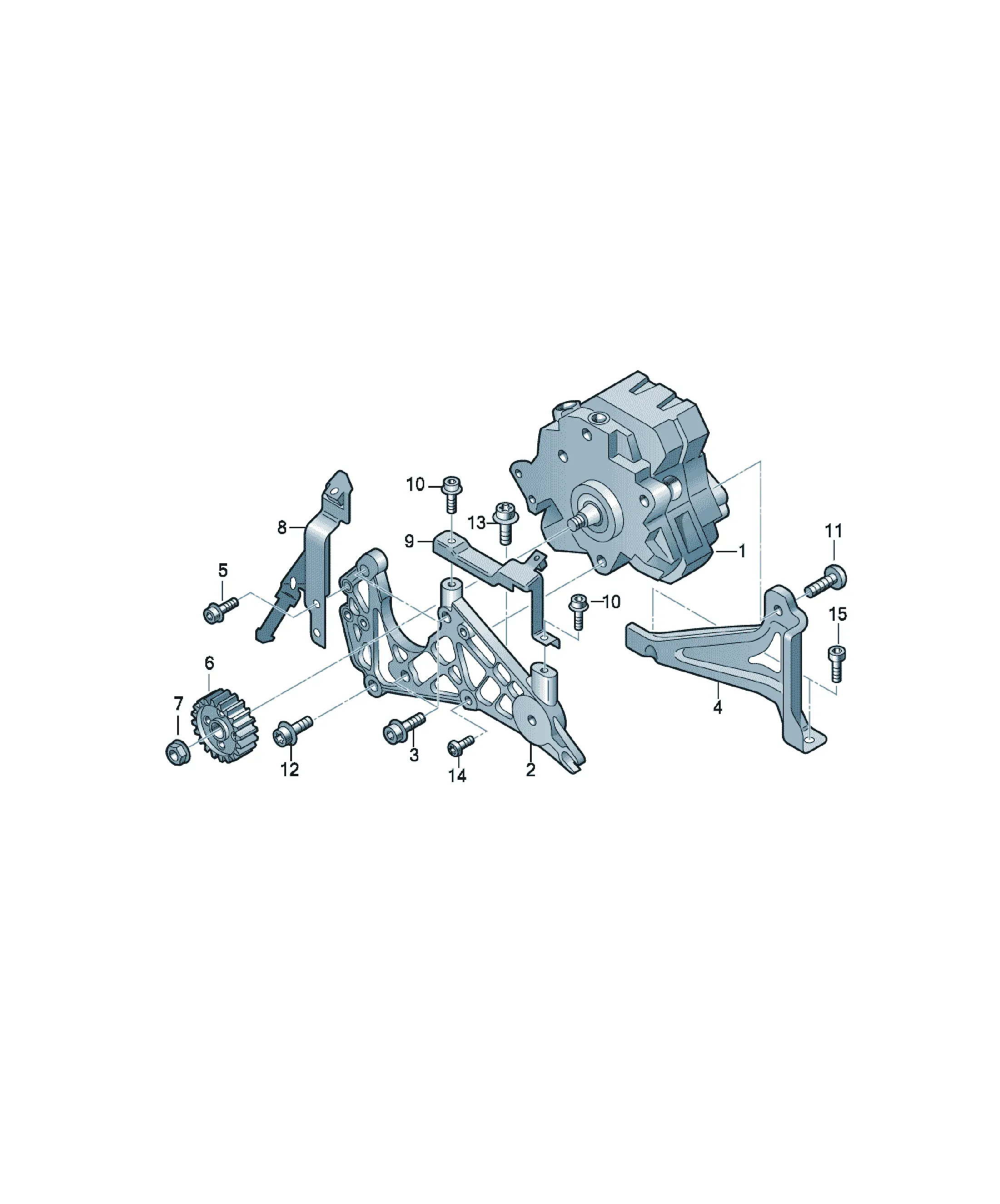

High pressure fuel pump

Assembly diagrams

5 diagrams

Parts

24 parts

Винт с плоской головкой и внутренним Torx
N91068001 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X28 1
Винт с цилиндрической головкой с внутренним шестигранником
N01473911 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M8X16 2
059130755N Offers

[Name] [QTY]
high pressure pump 1
D >> - 16.01.2006
mating connector
4D0971992 Flat connector housing with contact locking mechanism 2 pin 1
black/violet
059130851AX Offers

[Name] [QTY]
high pressure pump 1
D >> - 16.01.2006
Replacements: 059130755N
Old part
059130755E high pressure pump 1
Labelled with part number
059130755J high pressure pump 1
Labelled with part number
059130755N high pressure pump 1
Labelled with part number
059130755S Offers

[Name] [QTY]
high pressure pump 1
D - 16.01.2006>>
mating connector
4D0971992 Flat connector housing with contact locking mechanism 2 pin 1
black/violet
059130851X Offers

[Name] [QTY]
high pressure pump 1
D - 16.01.2006>>
Replacements: 059130755S
Old part
059130755H high pressure pump 1
Labelled with part number
059130755L high pressure pump 1
Labelled with part number
059130755S high pressure pump 1
Labelled with part number
N91073301 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 2
N90920001 Offers

[Name] [Note] [QTY]
Hexagon socket head bolt M8X10 1
N90870601 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X35-ITR-W 1
Replacements: N 10240801
N90870601 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X35-ITR-W 1
Replacements: N 10240801
N10156206 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X30 1
N01473911 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M8X16 2
059130147H Offers

[Name] [QTY]
Console 1
D >> - 16.01.2006
059130147J Offers

[Name] [QTY]
Console 1
D - 16.01.2006>>
Replacements: 059130147Q
N91084201 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M8X25 X
only for: 059 130 147 J
N90870602 Offers

[Name] [Note] [QTY]
Socket head collared bolt with inner multipoint head M8X35 X
only for: 059 130 147 H
059130163E Offers

[Name] [QTY]
Bracket 1
D - 16.01.2006>>
059130163C Offers

[Name] [QTY]
Bracket 1
D >> - 16.01.2006
N91073301 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 2
059130111H Offers

[Name] [QTY]
toothed belt pulley 1
D >> - 16.01.2006
059130111K Offers

[Name] [QTY]
toothed belt pulley 1
D - 16.01.2006>>
N10240304 Offers

[Name] [Note] [QTY]
Hexagon collar nut M14X1,5 1
059130407C Offers

[Name] [QTY]
Bracket 1
059130180B Offers

[Name] [QTY]
Bracket 1
