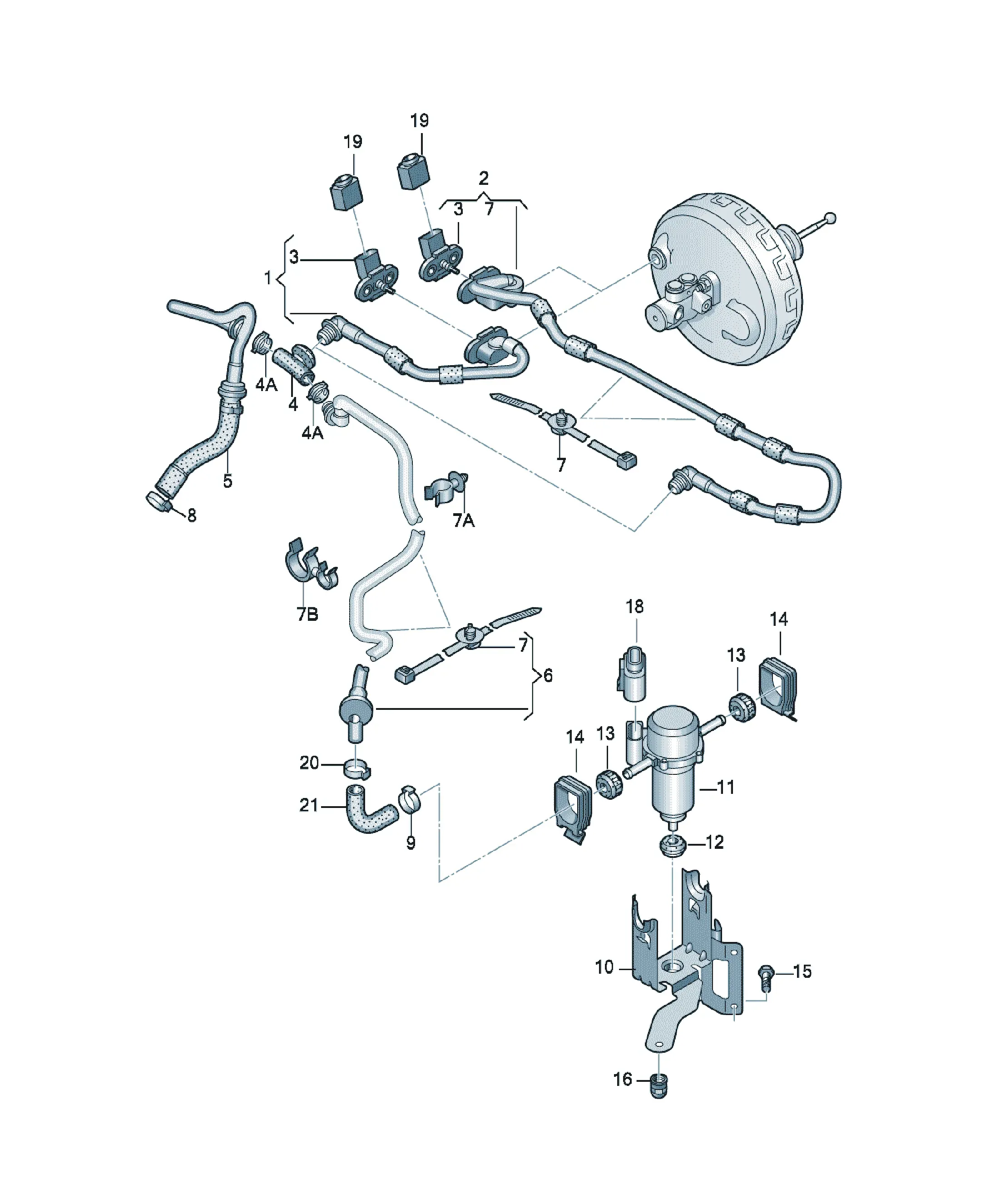

Brake system vacuum line

[Name] [Note] [QTY]

Vacuum pipe with non-return valve lhd 1

[Name] [QTY]

Bracket 1

for models with electric vacuum pump

[Name] [Model info] [QTY]

Electric vacuum pump for brake BBJ 1

Replacements: 8E0927317H

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Model info] [QTY]

Electric vacuum pump for brake BVJ 1

Replacements: 8E0927317J

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Stop buffer 1

[Name] [QTY]

Stop buffer 1

[Name] [QTY]

Clip 2

[Name] [Note] [QTY]

hex.hd. thread cutting bolt M6X22

F >> 4F-7-050 000* 2

[Name] [Note] [QTY]

hexagon nut, self-locking M8 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 1

black

mating connector

8D0973822 Flat connector housing with contact locking mechanism 2 pin 1

Possible single wire:

000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

counterpart to: 000 979 022 E

000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 2,8

000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+125C

flat contact 2,8

000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X

-40C/+105C

flat contact 2,8

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin 1

mating connector

1K0973804 Flat contact housing with contact locking mechanism 4 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

[Name] [Note] [QTY]

Vacuum pipe with non-return valve rhd 1

[Name] [Note] [QTY]

clamp 23,5X7X0,6 1

[Name] [QTY]

angled hose 1

[Name] [QTY]

Pressure sensor 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

optional:

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [QTY]

Grommet 1

Replacements: 8K0611743B

[Name] [Model info] [QTY]

Vacuum pipe 8-cylinder+ 1

BVJ

[Name] [Model info] [QTY]

Vacuum pipe with non-return valve 6-cylinder+ 1

BBJ

Replacements: 4F0611931EJ; 8K0611743C

[Name] [Model info] [QTY]

Vacuum pipe with non-return valve 6-cylinder+ 1

BBJ

Replacements: 4F0611931EF; 8K0611743C

[Name] [Model info] [QTY]

Vacuum pipe with non-return valve 6-cylinder+ 1

BBJ

Replacements: 4F0611931EK; 8K0611743C

[Name] [Model info] [QTY]

Vacuum pipe with non-return valve 8-cylinder+ 1

BVJ

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 2

For hole/material thickness: 6,5/0,3-3

[Name] [Note] [Model info] [QTY]

Hose bracket 13X6,5 BVJ 1

[Name] [Note] [Model info] [QTY]

Bracket 19X12X11 BVJ 1

Replacements: N 10291602

[Name] [Note] [QTY]

clamp 21X7X0,60 1

[Name] [Note] [QTY]

Clamp 12-22X9X0,4 1
