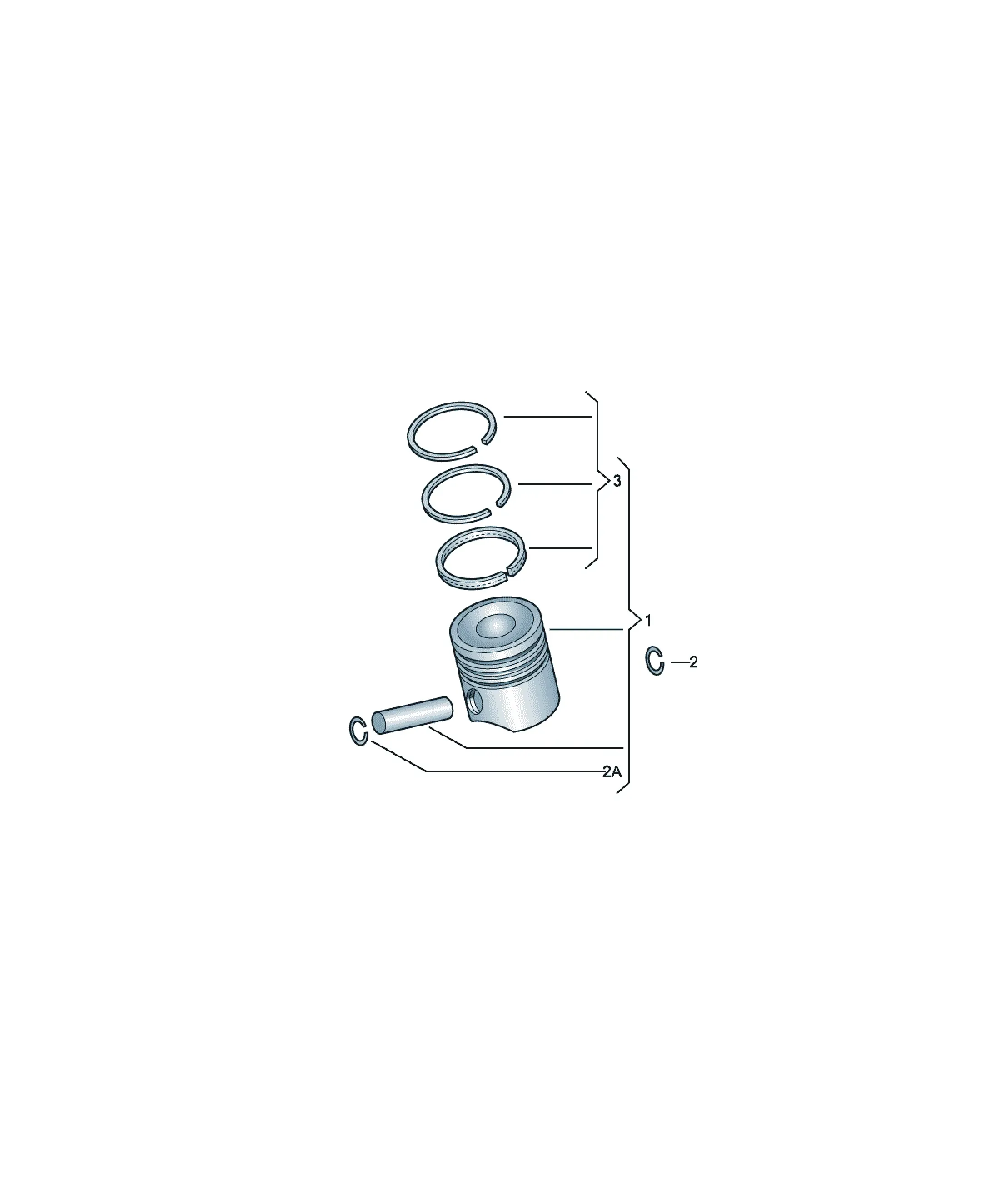

Piston assembly

[Name] [Note] [QTY]

piston complete Cylinder 5-8 4

Replacements: 079107065AK

[Name] [Note] [QTY]

piston complete Cylinders 1-4

F >> 4F-8-048 000* 4

Replacements: 079107066BC

[Name] [Note] [Model info] [QTY]

piston complete 82,5

F >> 4F-6-065 000* BPJ 4

[Name] [Note] [Model info] [QTY]

piston complete 82,5

F 4F-6-065 001>>* BPJ,BYK 4

Replacements: 06D107066T

[Name] [Note] [QTY]

piston complete cylinders 6-10 5

[Name] [Note] [QTY]

piston complete Cylinders 1-4 4

Replacements: 079107066AK

[Name] [Note] [QTY]

piston complete Cylinder 5-8

F >> 4F-8-048 000* 4

Replacements: 079107065BC

[Name] [Note] [QTY]

piston complete cylinders 1-5 5

[Name] [Note] [Model info] [QTY]

piston complete ALCAN BLB,BNA,BRE, 4

for number plate: V200 BRF,BVG

[Name] [Note]

Dimension group 1 80,95

[Name] [Note]

Dimension group 3 80,97

[Name] [Note] [Model info] [QTY]

piston complete MAHLE BLB,BNA,BRE, 4

BRF,BVG

[Name] [Note]

Dimension group 1 80,95

[Name] [Note] [QTY]

snap ring 20X1,6 8

[Name] [Note] [Model info] [QTY]

Securing ring 20X1,5 BPJ,BYK 4

[Name] [Note] [QTY]

snap ring C19X1,5 8

[Name] [Note] [QTY]

snap ring 20X1,6 10

[Name] [Note] [Model info] [QTY]

snap ring 26X1,5 BLB,BNA,BRE, 4

BRF,BVG

[Name] [Note] [Model info] [QTY]

snap ring 26X1,5 BLB,BNA,BRE, 4

BRF,BVG

[Name] [Note] [QTY]

snap ring 20X1,6 10

[Name] [Note] [Model info] [QTY]

Securing ring 20X1,5 BPJ,BYK 4

[Name] [Note] [QTY]

snap ring 20X1,6 8

[Name] [Note] [QTY]

snap ring C19X1,5 8

[Name] [Note] [Model info] [QTY]

1 set: piston rings 82,5 BPJ,BYK 4

Replacements: 06D198151E

repair set

06D107301D piston ring, upper 82,5X1,2 1

053107311B piston ring, lower 82,5X1,5 1

078107321A oil scraper ring 82,5X2 1

[Name] [Note] [Model info] [QTY]

1 set: piston rings 81 BLB,BNA,BRE, 4

BRF,BVG

repair set

038107301A piston ring, upper 81X1,75 1

046107311E piston ring, lower 81X2 1

077107321C oil scraper ring 81X3 1

[Name] [Note] [QTY]

1 set: piston rings 84,51 10

repair set

079107301D piston ring, upper 84,5 1

079107311A piston ring, lower 84,5 1

079107321F oil scraper ring 84,5 1

[Name] [Note] [QTY]

1 set: piston rings 84,5 8

repair set

06E107301G piston ring, upper 84,5X1,2 1

06E107311J piston ring, lower 84,5X1,5 1

079107321A oil scraper ring 84,5X2 1

[Name] [Note] [QTY]

1 set: piston rings 84,5

F >> 4F-7-120 000* 8

repair set

06E107301G piston ring, upper 84,5X1,2 1

06E107311J piston ring, lower 84,5X1,5 1

079107321A oil scraper ring 84,5X2 1
