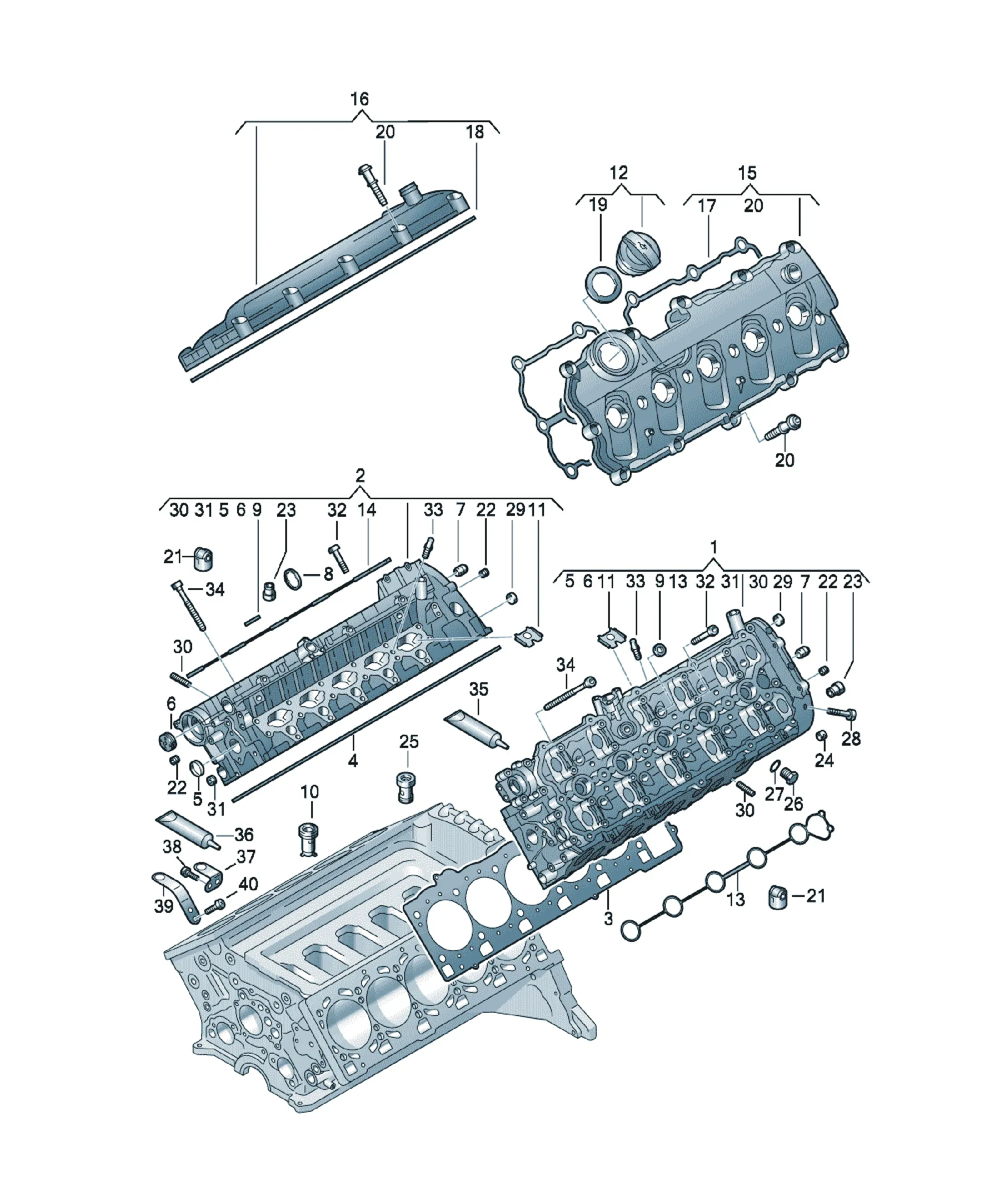

Cylinder head

[Name] [QTY]

threaded insert 1

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head (Kombi) M8X25 2

Transportation shackle

[Name] [Note] [QTY]

Complete cylinder head cylinders 6-10

left

F >> 4F-8-045 000* 1

Replacements: 07L103903AX; N 10704501

Old part

07L103063 Complete cylinder head 1

07L103063LX Complete cylinder head 1

Cylinder head cast no.: 07L 103 373 J

Cylinder head with valves and camshaft

With hydraulic compensation element

With roller rocker finger

[Name] [Note] [QTY]

Complete cylinder head cylinders 6-10

left

F >> 4F-8-045 000* 1

Replacements: 07L103063AG; N 10704501

[Name] [Note] [QTY]

Complete cylinder head cylinders 6-10

left

F >> 4F-8-045 000* 1

Replacements: 07L103063AG

Old part

07L103063AG Complete cylinder head 1

07L103903AX Complete cylinder head 1

Cylinder head with valves and camshaft

Cylinder head cast no.: 07L 103 373 AB

With hydraulic compensation element

With roller rocker finger

[Name] [QTY]

Non-return valve 4

[Name] [QTY]

partition 10

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Seal cylinders 6-10 1

left

[Name] [Note] [QTY]

Seal ZYLINDER 1-5 1

right

[Name] [Note] [QTY]

cylinder head cover with gasket left 1

D - 25.09.2007>>

[Name] [Note] [QTY]

cylinder head cover with gasket left 1

D >> - 25.09.2007

[Name] [Note] [QTY]

cylinder head cover with gasket right 1

[Name] [Note] [QTY]

Seal left 1

D >> - 25.09.2007

Replacements: 07L103471Q

[Name] [Note] [QTY]

Seal left 1

D - 25.09.2007>>

[Name] [Note] [QTY]

Seal right 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Complete cylinder head cylinders 1-5 1

right

Replacements: 07L103064AG

Old part

07L103064AG Complete cylinder head 1

07L103904AX Complete cylinder head 1

Cylinder head with valves and camshaft

Cylinder head cast no.: 07L 103 374 AB

With hydraulic compensation element

With roller rocker finger

[Name] [Note] [QTY]

Complete cylinder head cylinders 1-5

right

F >> 4F-8-045 000* 1

Replacements: 07L103064AG; N 10704501

[Name] [QTY]

Hexagon socket flat head bolt with guide sleeve 24

[Name] [QTY]

Bungs 10

[Name] [QTY]

oil spray jet 1

[Name] [Note] [QTY]

sealing plug M18X1,50 3

[Name] [Note] [QTY]

seal ring 18X22 3

[Name] [Note] [QTY]

round hd. screw M6X50 8

D >> - 01.10.2007

[Name] [Note] [QTY]

round hd. screw M6X50 6

D - 01.10.2007>>

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M6X35 2

D - 01.10.2007>>

[Name] [Note] [QTY]

End cap 14 2

[Name] [Note] [QTY]

Cylinder head gasket cylinders 6-10 1

left

[Name] [Note] [QTY]

Threaded pin M8X44 30

[Name] [Note] [QTY]

sealing plug M10X1 2

Replacements: N 10630302

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X35X16 28

[Name] [Note] [QTY]

Guide pin M6X10 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M10X113 24

[Name] [Note] [QTY]

Silicon sealant 50ML 1

adhesives and sealing compound

[Name] [Note] [QTY]

Locking fluid high-strength 1

Locking fluid

[Name]

Transportation shackle

No replacement part

[Name] [Note] [QTY]

Screw with int. serrations M8X20 4

Transportation shackle

[Name] [Note] [QTY]

Cylinder head gasket cylinders 1-5 1

right

[Name] [Note] [QTY]

End cap 36,6 1

[Name] [Note] [QTY]

End cap 26MM 1

also use: D 154 000 A1 1

Accompanying details: D 154000A1

[Name] [QTY]

Non-return valve 4

Replacements: 06E103175C

[Name] [Note] [QTY]

O-ring 37,6X4 2

[Name] [QTY]

Washer 24
