Radiator

Gearbox oil cooling system

Assembly diagrams

7 diagrams

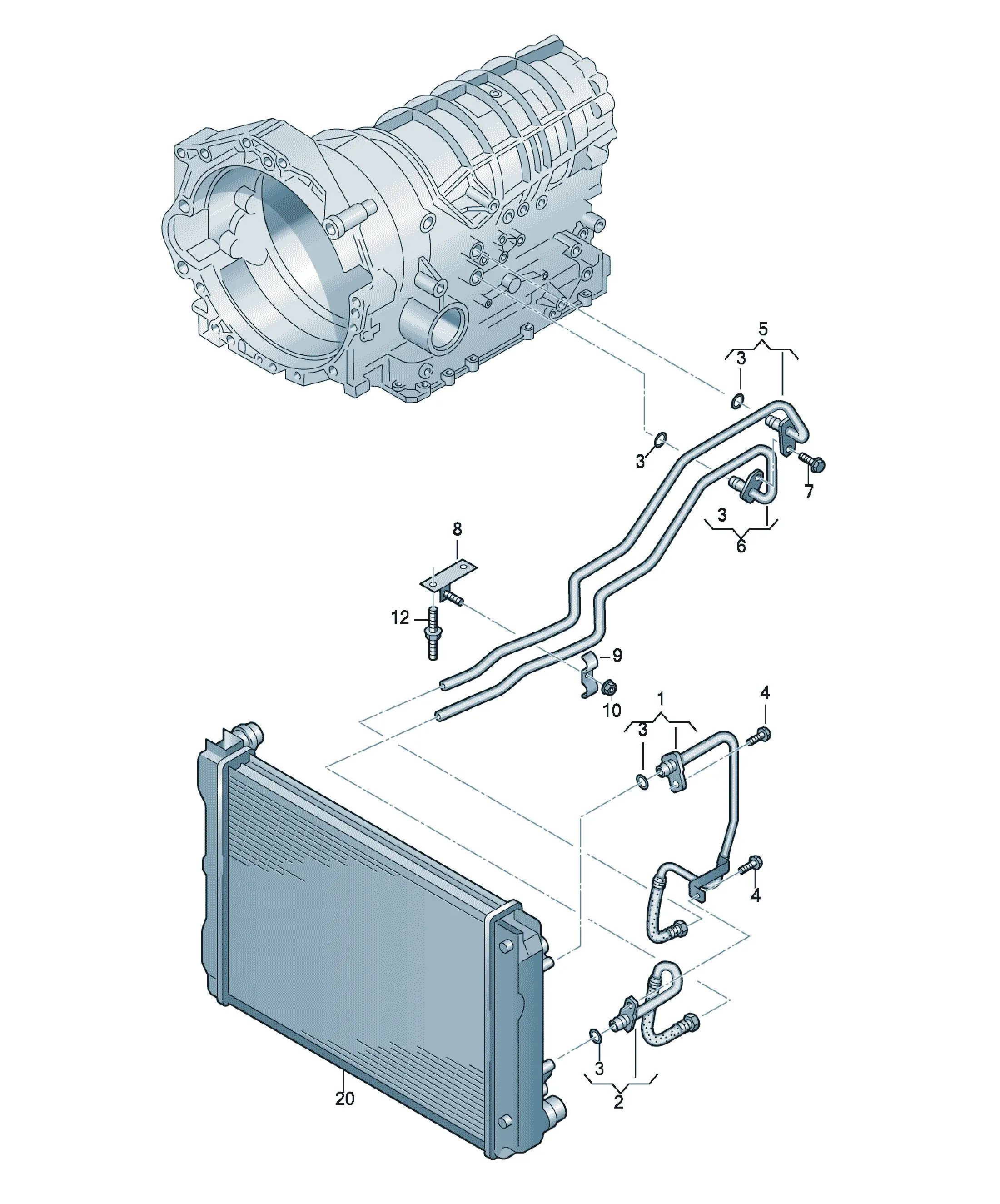

Gearbox oil cooling system diagram

Parts

22 parts

Cooling system nozzle rubber bushing
035121625F Offers

[Name] [QTY]
Protective hose 2
Защитный рукав
893117211A Offers

[Name] [QTY]
Protective hose 2
4F0317826J Offers

[Name] [QTY]
Oil pressure line 1
4F0317826D Offers

[Name] [QTY]
Oil pressure line 1
N90286703 Offers

[Name] [Note] [QTY]
hex. nut, self-locking with washer M6 1
N91004802 Offers

[Name] [Note] [QTY]
double stud with hexagon drive M6X22/M6X12 2
N90286703 Offers

[Name] [Note] [QTY]
hex. nut, self-locking with washer M6 1
4F0317825D Offers

[Name] [QTY]
Oil pressure line 1
4F0317825J Offers

[Name] [QTY]
Oil pressure line 1
[Name] [Note]
Cooler for coolant
see illustration: 121-072
N90666001 Offers

[Name] [Note] [QTY]
O-ring 11,5X3 4
Replacements: N 90666003
N10082912 Offers

[Name] [Note] [QTY]
bolt, hex. hd. (combi.) self-locking M6X16 1
N10115404 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head (combination) M6X18 2
4F0317818J Offers

[Name] [QTY]
Oil pressure line 1
4F0317818D Offers

[Name] [QTY]
Oil pressure line 1
4F0317817J Offers

[Name] [QTY]
Oil pressure line 1
4F0317817D Offers

[Name] [QTY]
Oil pressure line 1
N0903295 Offers

[Name] [Note] [QTY]
hexagon head bolt (combi) M8X26 1
N10082912 Offers

[Name] [Note] [QTY]
bolt, hex. hd. (combi.) self-locking M6X16 1
4F0317827J Offers

[Name] [QTY]
Bracket 1
4F0317827D Offers

[Name] [QTY]
Bracket 1
4A0317171D Offers

[Name] [QTY]
Clamp 1
