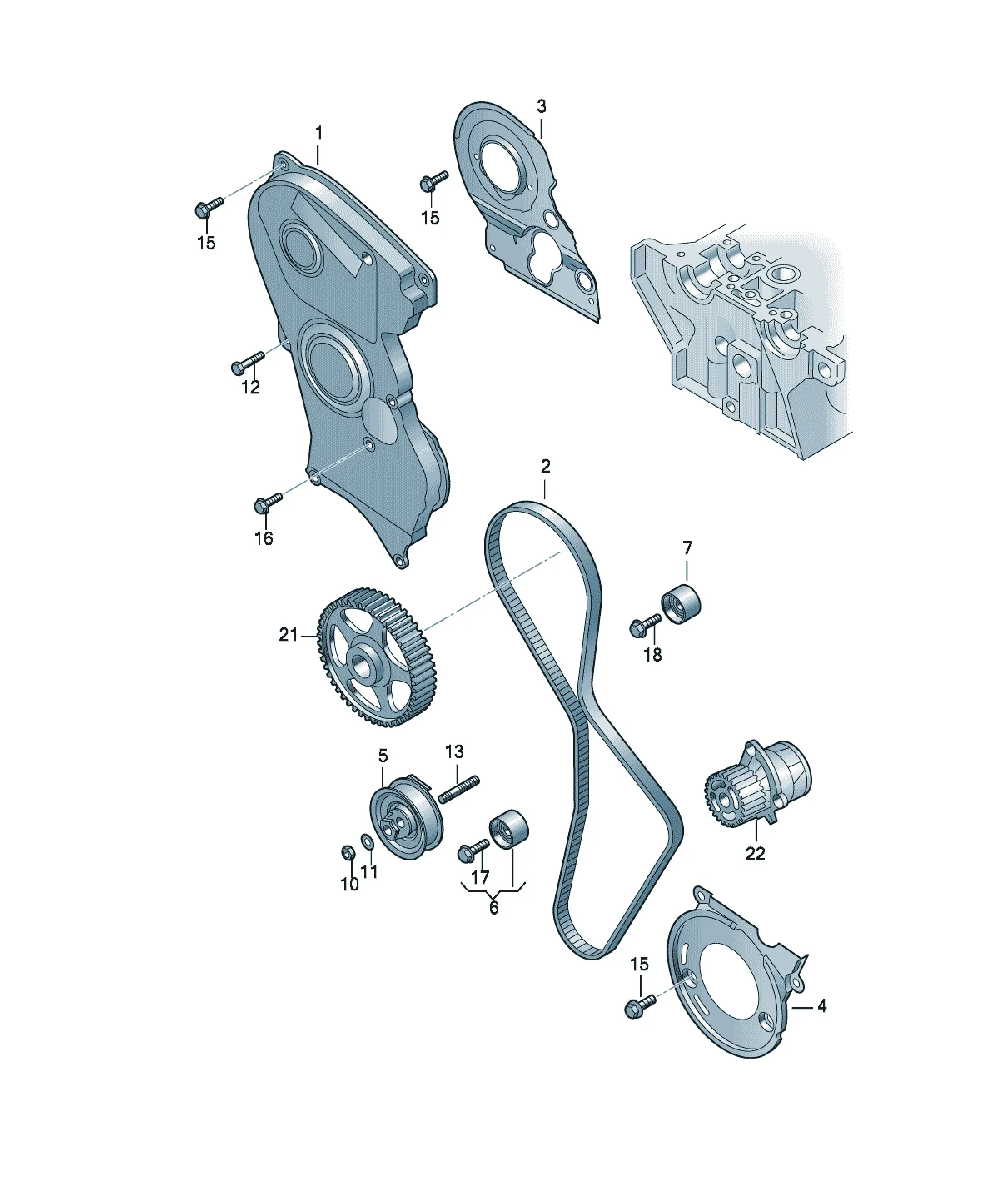

Timing drive

[Name] [Note] [QTY]

Toothed belt guard upper 1

[Name] [Note] [QTY]

Toothed belt guard upper

F >> 4F-6-120 000* 1

[Name] [Note] [QTY]

Hexagon nut M8

F >> 4F-6-175 000* 1

[Name] [Note] [QTY]

Hexagon nut M8

F 4F-6-175 001>>* 1

[Name] [Note] [QTY]

Washer 8X16X2 1

[Name] [Note] [QTY]

Hexagon bolt M6X50

F >> 4F-6-120 000* 1

[Name]

F 4F-6-120 001>>*

No replacement part

[Name] [Note] [QTY]

Threaded pin M8X45 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt, self-locking M6X16

F 4F-6-120 001>>* 8

[Name] [Note] [QTY]

bolt, hex. hd. (combi.) self-locking M6X16

F >> 4F-6-120 000* 8

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X22 2

[Name] [Note] [QTY]

Hexagon bolt M10X1,25X26 1

[Name] [Note] [QTY]

Hex collared bolt AM8X45 1

[Name] [Note] [QTY]

toothed belt Z=148 1

[Name] [Note]

toothed belt pulley

see illustration: 109-005

Use item: 4

[Name] [Note]

Coolant pump

see illustration: 121-005

Use item: 1

[Name] [Note] [QTY]

Toothed belt guard upper 1

[Name] [Note] [QTY]

Toothed belt guard lower

F >> 4F-6-120 000* 1

[Name] [Note] [QTY]

Toothed belt guard lower

F 4F-6-120 001>>* 1

[Name] [QTY]

Tensioning roller 1

Replacements: 06D109243C

[Name] [QTY]

idler pulley 1

[Name] [QTY]

idler pulley 1
