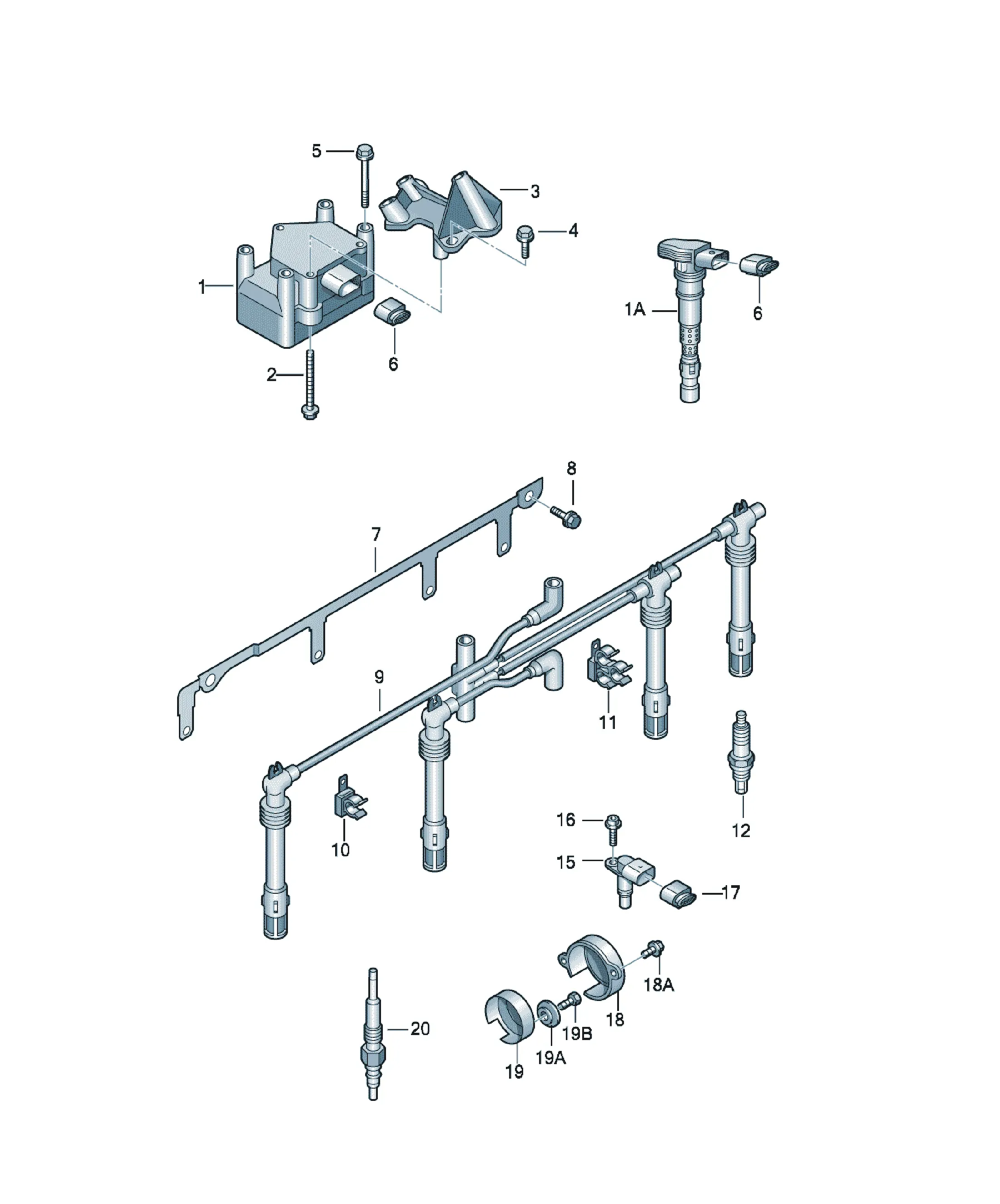

Ignition system

[Name]

Caution: No mixed installation of different manufacturers permitted. When replacing individual parts, only use the manufact. that is currently installed. A change in manufacturer is possible when replacing all fitted parts.

[Name] [Note] [QTY]

spark plug 'longlife' BOSCH 4

Replacements: 06H905601A

[Name] [Note] [QTY]

spark plug 'longlife' NGK 4

[Name] [QTY]

impulse sender 1

Camshaft

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

3D0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 1

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 3 pin 1

black

mating connector

1J0973803 Flat contact housing with contact locking mechanism 3 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 E

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

counterpart to: 000 979 020 EA

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [QTY]

ignition coil with spark plug connector 4

Replacements: 07K905715G

mating connector

8K0973724 Flat contact housing 4 pin 1

black

1J0973724 Flat contact housing 4 pin 1

black

4B0973724 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [Model info] [QTY]

Glow plug M8X1X30 BLB,BNA 4

[Name] [Note] [Model info] [QTY]

Glow plug M8X1X30 NGK BRE,BRF,BVG 4

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 4 pin X

black

Possible single wire:

000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 2,8

000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 2,8

000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 2,5 X

-40C/+105C

flat contact 2,8
