Central electrical unit

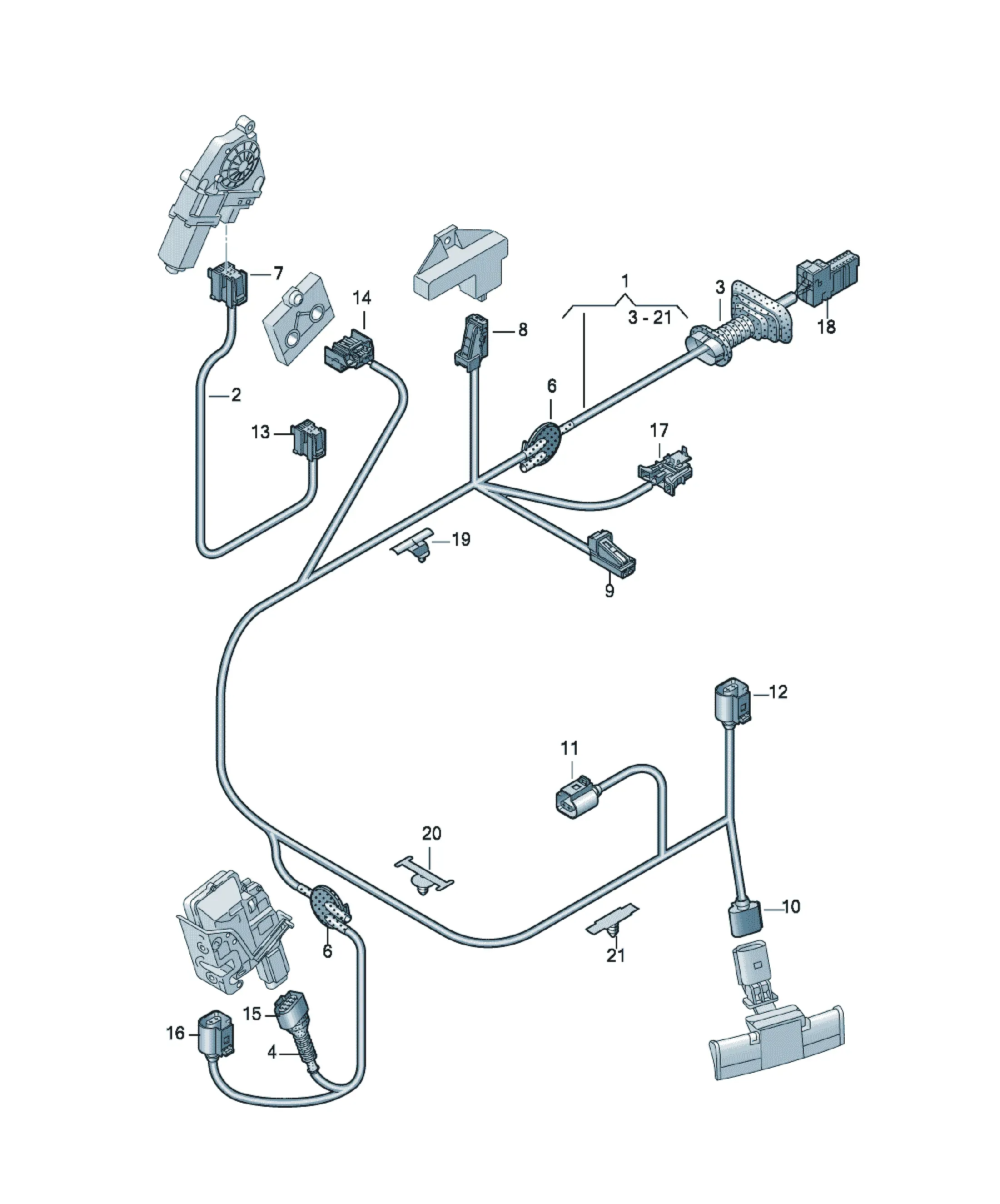

Door wiring harness

Assembly diagrams

3 diagrams

Parts

29 parts

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name]
* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS
4F1971687AA Offers

[Name] [QTY]
Wiring set for door 2
For vehicles with KESSY (access and start auth.)
4F1971687J Offers

[Name] [QTY]
Wiring set for door 2
for models with power latching system
4F1971687L Offers

[Name] [QTY]
Wiring set for door 2
For vehicles with door power latch and KESSY (access and start authorisation)
4F1971687N Offers

[Name] [QTY]
Wiring set for door 2
4F1971687Q Offers

[Name] [QTY]
Wiring set for door 2
For vehicles with KESSY (access and start auth.)
4F1971687S Offers

[Name] [QTY]
Wiring set for door 2
1J0973702B Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
red
Connection piece
Sensor for door handle
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
black
Connection piece
Micro switch
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702C Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
orange
Mounting bar
mating connector
6X0973802C flat connector housing 2 pin 1
orange
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1K0972923 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 6 pin 2
black
Connection piece
Door control unit
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
1K0971975 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 20 pin 2
Connection piece
Door control unit
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
000979027E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979027EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
flat contact with retaining lug 0,5
4,8-6,3MM
000979152E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979152EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979243E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 4,8-6,3MM
000979243EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact with retaining lug 4,8-6,3MM
000979308E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+105C
flat contact with retaining lug 4,8-6,3MM
000979308EC 1 set single wires each with 2 silver-plated contacts, in bag of 4 'Order qty. 4' X
-40C/+125C
with cable crosssection: 4,0
flat contact with retaining lug 4,8-6,3MM
000979425E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+125C
with cable crosssection: 6,0
flat contact 4,8-6,3MM
000979425EC 1 set single wires each with 2 silver-plated contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+125C
with cable crosssection: 6,0
flat contact 4,8-6,3MM
1J0973715 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 10 pin 2
Connection piece
door lock with childproof catch electric
mating connector
6X0973815 Flat contact housing with contact locking mechanism 10 pin 1
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973714 Offers

[Name] [Note] [QTY]
Flat contact housing 8 pin 2
Connection piece black
Door lock
mating connector
1J0973814 Flat contact housing 8 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
black
for models with power latching system
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4B0971942 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
Connection piece
mid-range bass speaker
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
8E0972702 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 20 pin 2
Coupling element
Central wiring set
mating connector
8H0972701 Flat contact housing with contact locking mechanism 20 pin 1
8E0972701 Flat contact housing with contact locking mechanism 20 pin 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 EA
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979407E 1 set single wires each with 2 contacts, in bag of 3 'Order qty. 3' 6,0 X
-40C/+105C
flat contact with retaining lug 4,8
8L0971848A Offers

[Name] [Note] [QTY]
Cable holder X
For hole/material thickness: 6,5MM/0,6-3MM
4F0971687A Offers

[Name] [QTY]
Wire set 2
for electric window regulators
1M0971843 Offers

[Name] [Note] [QTY]
Cable holder with seal X
For hole/material thickness: 6,5/0,6-2,2MM
4B0971848 Offers

[Name] [Note] [QTY]
Bundling clip f wiring harness X
For hole/material thickness: 6,5/0,6-3MM
8E0959845B Offers

[Name] [Note] [QTY]
bellows with retaining frame 37,5X78,5/40 2
4B0906102 Offers

[Name] [QTY]
Grommet 2
for vehicles with electric child safety catch
443906102G Offers

[Name] [Note] [QTY]
Grommet 13,5X19 2
4F0971841E Offers

[Name] [Note] [Model info] [QTY]
Double grommet 46X8X8MM PR:GZ0 4
4F0971841G Offers

[Name] [Note] [Model info] [QTY]
Grommet 46X8X8 PR:GZ2 4
1K0972923 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 6 pin 2
black
Connection piece
Window regulator motor
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
4B0971832 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
Connection piece
Aerial for access and start authorisation (KESSY)
mating connector
4E0972575 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
4B0971832 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
Connection piece
Treble speaker
mating connector
4E0972575 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979044EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat connector/sleeve with retaining lug 0,63
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63

Door wiring harness

Assembly diagrams

Parts

Catalog

More

Contact us
