Gear control

Selector shaft

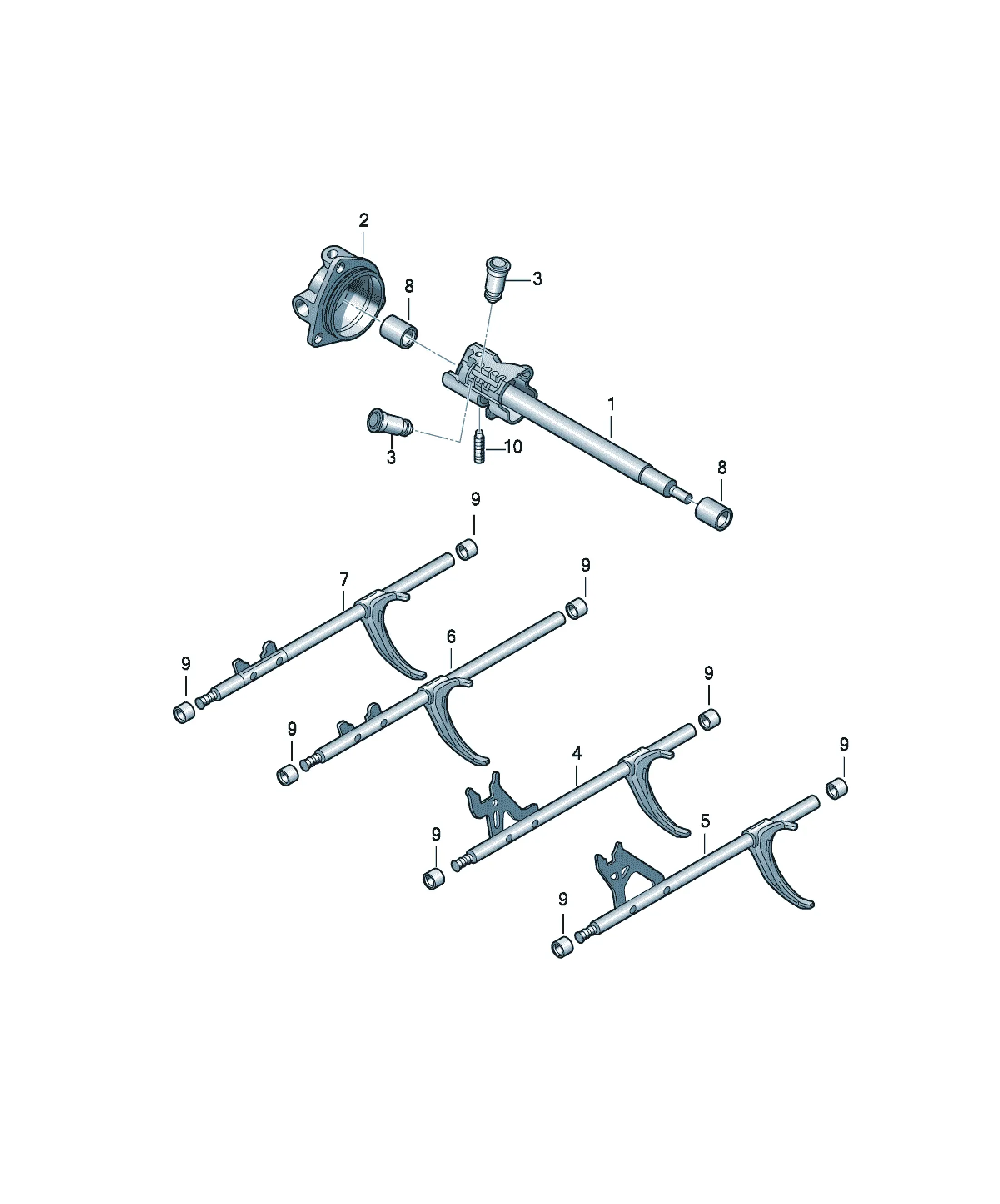

Assembly diagrams

3 diagrams

Parts

21 parts

0A2311505 Offers

[Name] [Model info] [QTY]
Selector shaft with sel. cyl. FZJ 1
0A2311505A Offers

[Name] [Model info] [QTY]
Selector shaft with sel. cyl. HVE,JMG 1
0A2311505 Offers

[Name] [Model info] [QTY]
Selector shaft with sel. cyl. GVB 1
0A2311505A Offers

[Name] [Model info] [QTY]
Selector shaft with sel. cyl. HVD,JMC 1
WHT000338 Offers

[Name] [Note] [QTY]
Cylinder pin 12X50 1
[Name] [Note]
Cover for selector shaft
see illustration: 301-075
[Name] [Note]
Cover for selector shaft
see illustration: 301-045
[Name] [Note]
locking screw
see illustration: 301-075
[Name] [Note]
locking screw
see illustration: 301-045
0A2311536A Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 1./2.gear HVD,JMC 1
0A2311536A Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 1./2.gear HVE,JMG 1
0A2311536 Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 1./2.gear GVB 1
0A2311536 Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 1./2.gear FZJ 1
0A2311558 Offers

[Name] [Note] [QTY]
selector shaft with selec.fork Reverse gear 1
0A2311576A Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 3./4.gear HVD,JMC 1
0A2311576 Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 3./4.gear GVB 1
0A2311576A Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 3./4.gear HVE,JMG 1
0A2311576 Offers

[Name] [Note] [Model info] [QTY]
selector shaft with selec.fork 3./4.gear FZJ 1
0A2311633 Offers

[Name] [Note] [QTY]
selector shaft with selec.fork 5th/6th gear 1
01E311572 Offers

[Name] [Note] [QTY]
Ball sleeve 16X24X25,5 2
0A2311572 Offers

[Name] [Note] [QTY]
Ball sleeve 16X22X20 8
