Radiator, fan

Cooling fan shroud

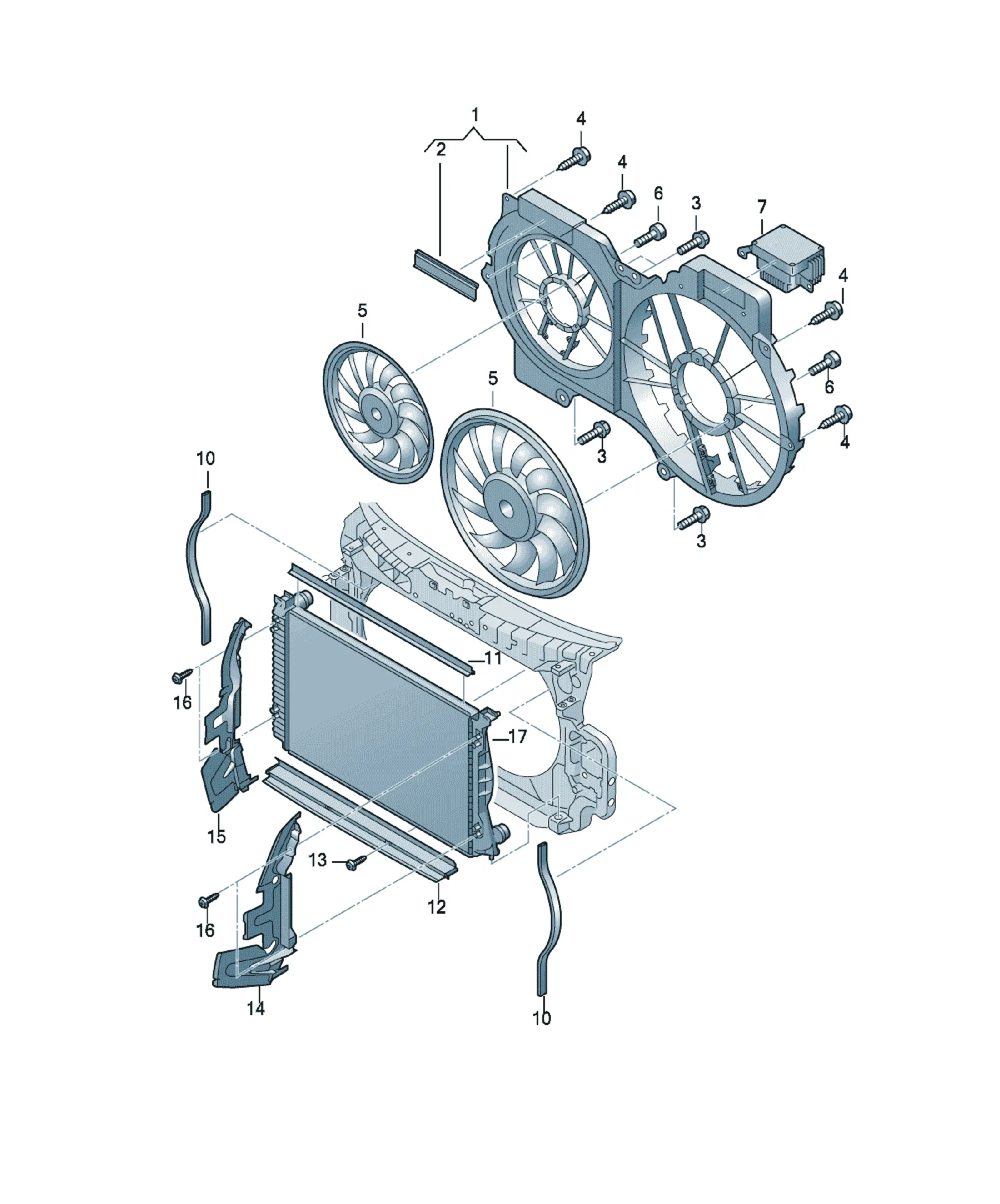

Assembly diagrams

5 diagrams

Parts

72 parts

4F0121207A Offers

[Name] [Model info] [QTY]
Twin fan ring
F >> 4F-7-020 100 BDW 1
4F0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring BLB,BNA,BRE, 1
BRF,BPJ,BYK
4F0121207A Offers

[Name] [Model info] [QTY]
Twin fan ring BDW,BBJ,AUK, 1
BDX
4F0121207A Offers

[Name] [Model info] [QTY]
Twin fan ring BBJ,AUK,BDX 1
BYU,BKH
4F0121207A Offers

[Name] [Model info] [QTY]
Twin fan ring BDW+PR:8Z6 1
4F0121207A Offers

[Name] [Model info] [QTY]
Twin fan ring BDW+ 1
PR:8Z5+1D4
4F0121207A Offers

[Name] [Model info] [QTY]
Twin fan ring BDW+ 1
PR:8Z4,8Z6,
8Z9
4F0121207E Offers

[Name] [Model info] [QTY]
Twin fan ring BLB,BNA,BRE, 1
BRF,BPJ,BVG
4F0121207A Offers

[Name] [Model info] [QTY]
Twin fan ring BBJ,AUK,BDX 1
4F0121221L Offers

[Name] [Note] [Model info] [QTY]
Sealing strip 20X48X505 BLB,BNA,BRE, 2
BRF,BPJ,BVG
4F0121221 Offers

[Name] [Note] [Model info] [QTY]
Sealing strip 20X30X505 BBJ,BDW,AUK, 2
BDX
4F0121221 Offers

[Name] [Note] [Model info] [QTY]
Sealing strip 20X30X505 BDW,BBJ,AUK, 2
BDX
4F0121221 Offers

[Name] [Note] [Model info] [QTY]
Sealing strip 20X30X505 BDW,BBJ,AUK, 2
BYU,BKH,BDX
4F0121221L Offers

[Name] [Note] [Model info] [QTY]
Sealing strip 20X48X505 BLB,BNA,BRE, 2
BRF,BPJ,BYK
4F0121331A Offers

[Name] [Note] [Model info] [QTY]
Seal upper BLB,BNA,BRE, 1
BRF,BPJ,BYK
4F0121331 Offers

[Name] [Note] [Model info] [QTY]
Seal upper BDW,BBJ,AUK, 1
BYU,BKH,BDX
4F0121331 Offers

[Name] [Note] [Model info] [QTY]
Seal upper BBJ,BDW,AUK, 1
BDX
4F0121331 Offers

[Name] [Note] [Model info] [QTY]
Seal upper BDW,BBJ,AUK, 1
BDX,AUK
4F0121331A Offers

[Name] [Note] [Model info] [QTY]
Seal upper BLB,BNA,BRE, 1
BRF,BPJ,BVG
4F0121292G Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K7+ 1
BLB,BNA,BRE,
BRF,BPJ,BYK
4F0121292F Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K5+BDW, 1
BBJ,BKH
4F0121292F Offers

[Name] [Note] [Model info] [QTY]
Cover lower BDX 1
4F0121292F Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K7,2K8+ 1
BBJ,AUK,BDW,
BYU,BKH
4F0121292F Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1,2K2+ 1
(for modified vehicles) BBJ,AUK,BKH
BDW,BYU
4F0121292G Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1,2K2+ 1
(for modified vehicles) BLB,BNA,BRE,
BRF
4F0121292C Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1,2K2, 1
2K5+BPJ,BYK
4F0121292C Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1,2K2+ 1
BLB,BNA,BRE,
BRF
4F0121292A Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1,2K2+ 1
BBJ,AUK,BYU,
BKH,BDW
4F0121292F Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1+BDW, 1
(for modified vehicles) BBJ,AUK U
4F0121292F Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K7+BDW, 1
BBJ,AUK
4F0121292G Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1+ 1
(for modified vehicles) BLB,BNA,BRE,
BRF,BVG
4F0121292G Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K7+ 1
BLB,BNA,BRE,
BRF,BPJ,BVG
4F0121292C Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1+ 1
BLB,BNA,BRE,
BRF,BPJ,BVG
4F0121292A Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1+BDW, 1
BBJ,AUK
4F0121292F Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1+BDW, 1
(for modified vehicles) BBJ,AUK
4F0121292A Offers

[Name] [Note] [Model info] [QTY]
Cover lower PR:2K1+BDW, 1
BBJ,AUK,BYU
N10526301 Offers

[Name] [Note] [QTY]
self-tapping screw
F >> 4F-6-250 000 4X14 4
Replacements: N 10526302
4F0121283B Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K5+BDW, 1
BKH,BDX,BBJ
4F0121283G Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K7+ 1
BLB,BNA,BRE,
BRF,BPJ,BYK
4F0121283AJ Offers

[Name] [Note] [Model info] [QTY]
Air guide left "ROK"+BYK 1
4F0121283B Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K2,2K8+ 1
BDW,BBJ,AUK,
BYU,BKH
4F0121283C Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K7+ 1
BDW,BBJ,AUK,
BDX
4F0121283B Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K2,2K8+ 1
BDW,BBJ,AUK
4F0121283G Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K7+ 1
BLB,BNA,BRE,
BRF,BPJ,BVG
4F0121283C Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K7+ 1
BBJ,BDW,AUK,
BDX
4F0121283B Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K2,2K8+ 1
BBJ,BDW,AUK
4F0121283B Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K5+BDX 1
4F0121283G Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K7+ 1
BLB,BNA,BRE,
BRF,BVG
4F0121283C Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:2K1,2K7+ 1
BDW,BBJ,AUK,
BYU,BKH,BDX
4F0121284C Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K1,2K7+ 1
BDW,BBJ,AUK,
BDX
4F0121284C Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K1,2K7+ 1
BDW,BBJ,AUK,
BYU,BKH,BDX
4F0121284B Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K2,2K8+ 1
BDW,BBJ,AUK,
BYU,BKH
4F0121284B Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K5+BDW, 1
BKH,BDX,BBJ
4F0121284G Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K1,2K7+ 1
BLB,BNA,BRE,
BRF,BPJ,BYK
4F0121284AJ Offers

[Name] [Note] [Model info] [QTY]
Air guide right "ROK"+BYK 1
4F0121284C Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K1,2K7+ 1
BBJ,BDW,AUK,
BDX
4F0121284B Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K2,2K8+ 1
BBJ,BDW,AUK
4F0121284B Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K5+BDX 1
4F0121284G Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K1,2K7+ 1
BLB,BNA,BRE,
BRF,BPJ,BVG
4F0121284B Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:2K2,2K8+ 1
BDW,BBJ,AUK
N10526301 Offers

[Name] [Note] [QTY]
self-tapping screw
F >> 4F-6-250 000 4X14 4
Replacements: N 10526302
[Name] [Note]
Cooler for coolant
see illustration: 121-071
8E0121223A Offers

[Name] [QTY]
Radiator louvre 1
N90955801 Offers

[Name] [Note] [QTY]
bolt, hex. hd. (combi.) self-locking M6X25 4
N90594201 Offers

[Name] [Note] [QTY]
oval head panel screw (combi)
F >> 4F-6-250 000 E4X16 4
Replacements: N 90594202
[Name] [Note]
Radiator fan
see illustration: 959-050
[Name] [Note]
Radiator fan
see illustration: 959-060
N90785001 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt
F >> 4F-6-250 000 M5X14 6
Replacements: N 90785002
N90785002 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M5X14,5 6
N90785001 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt
F >> 4F-6-250 000 M5X14,5 6
Replacements: N 90785002
[Name] [Note]
Control unit
see illustration: 959-050
[Name] [Note]
Control unit
see illustration: 959-060
