Locks

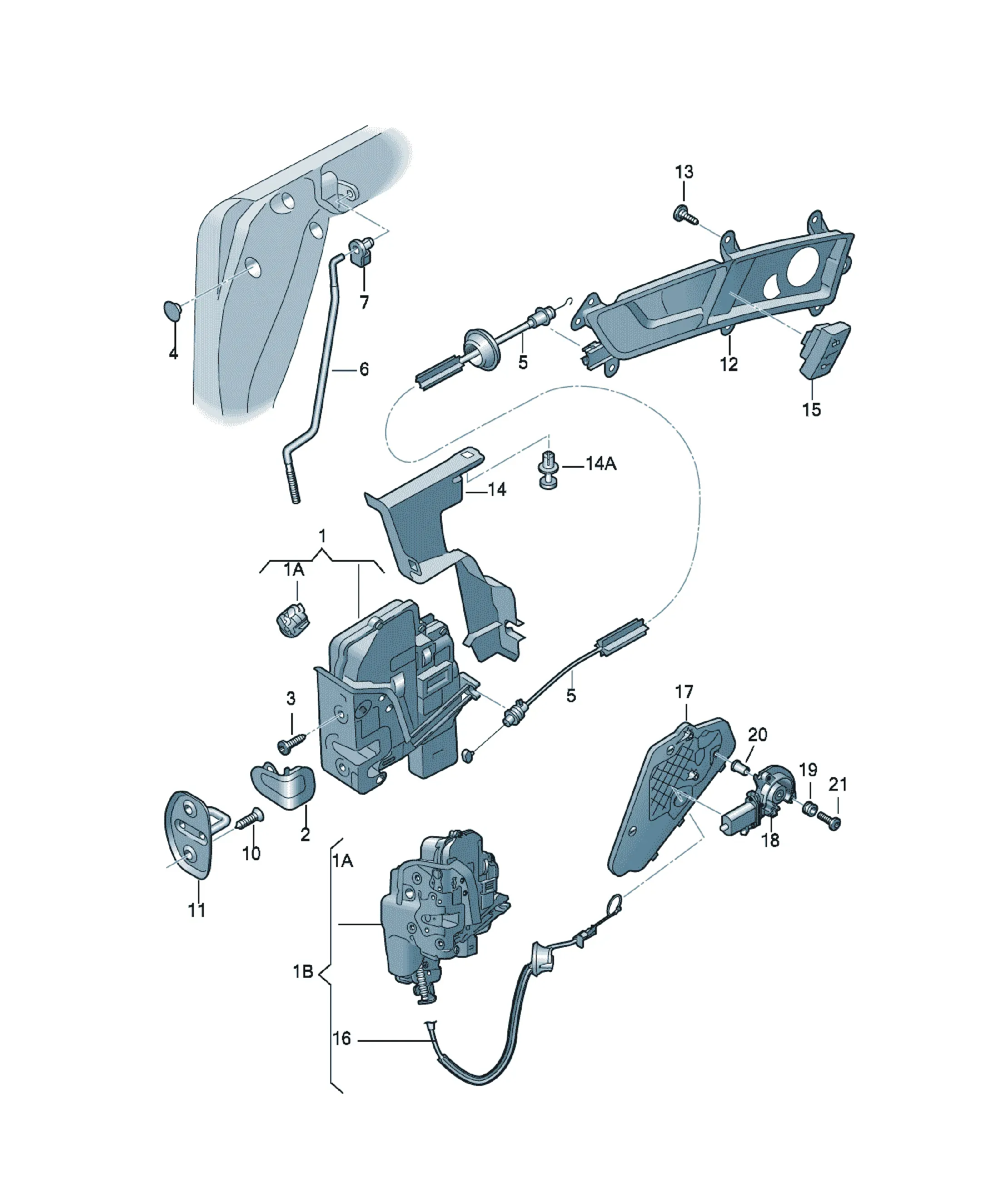

Door lock actuator

Assembly diagrams

5 diagrams

Parts

39 parts

4F2837016B Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch driver side PR:GZ0 1
rhd
mating connector
1J0973715 Flat contact housing with contact locking mechanism 10 pin 1
4F2837015 Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch passenger side PR:GZ0 1
rhd
4F1837015E Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch driver side PR:GZ0+A8S 1
lhd
4F1837016A Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch passenger side PR:GZ0+A8U 1
4F1837015F Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch driver side PR:GZ0+A8U 1
4F1837016 Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch passenger side PR:GZ0+A8S 1
lhd
mating connector
1J0973714 Flat contact housing 8 pin 1
black
N91017401 Offers

[Name] [Note] [QTY]
countersunk multi-point socket head bolt M8X22 4
8E0837033 Offers

[Name] [QTY]
Lock striker 2
4F0837019B Offers

[Name] [Note] [QTY]
Inner actuator passenger side 1
rhd
4F0837020C Offers

[Name] [Note] [QTY]
Inner actuator driver side 1
rhd
4F0837020B Offers

[Name] [Note] [QTY]
Inner actuator passenger side 1
lhd
4F0837019C Offers

[Name] [Note] [QTY]
Inner actuator driver side 1
lhd
N10415903 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt 4X12 12
4F1837349A Offers

[Name] [Note] [QTY]
door lock cover left lhd 1
Replacements: 4F1837349B
4F2837350A Offers

[Name] [Note] [QTY]
door lock cover right rhd 1
Replacements: 4F2837350C
4Z7853934 Offers

[Name] [QTY]
Spreader rivet 1
[Name] [Note]
safety switch for central locking system
see illustration: 959-000
[Name] [Note] [Model info]
Bowden cable PR:GZ2
No replacement part
Included in position: 1B
4F0837916B Offers

[Name] [Note] [Model info] [QTY]
cover for door inner panel right PR:GZ2 1
4F0837915B Offers

[Name] [Note] [Model info] [QTY]
cover for door inner panel left PR:GZ2 1
4F0837059 Offers

[Name] [Note] [Model info] [QTY]
Drive unit left PR:GZ2 1
Replacements: 4F0837059A
4F0837060 Offers

[Name] [Note] [Model info] [QTY]
Drive unit right PR:GZ2 1
Replacements: 4F0837060A
3D0837849 Offers

[Name] [Model info] [QTY]
Rubber bush PR:GZ2 6
4F0837171 Offers

[Name] [Note] [QTY]
Clip left a. right 2
4F2837016A Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch driver side PR:GZ2 1
rhd
mating connector
1J0973715 Flat contact housing with contact locking mechanism 10 pin 1
3D0973703 Flat contact housing with contact locking mechanism 3 pin 1
4F1837015D Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch driver side PR:GZ2+A8S 1
lhd
4F1837016D Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch passenger side PR:GZ2+A8S 1
lhd
4F1837015C Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch driver side PR:GZ2+A8U 1
4F2837015A Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch passenger side PR:GZ2 1
rhd
mating connector
1J0973714 Flat contact housing 8 pin 1
3D0973703 Flat contact housing with contact locking mechanism 3 pin 1
4F1837016C Offers

[Name] [Note] [Model info] [QTY]
door lock with door contact switch passenger side PR:GZ2+A8U 1
4F0837087 Offers

[Name] [QTY]
Underlay 2
3D0837271 Offers

[Name] [Model info] [QTY]
bush PR:GZ2 6
N10507201 Offers

[Name] [Note] [Model info] [QTY]
fillister hd. bolt 5X20 PR:GZ2 6
WHT000836 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X14 4
3B0837111B41 Offers

[Name]
Satin black
3B0837111 Offers

[Name] [QTY]
Bungs 2
4F0837085A Offers

[Name] [Note] [QTY]
Bowden cable left a. right 2
4F0837133B Offers

[Name] [QTY]
operating rod 2
893839821 Offers

[Name] [QTY]
Clip 2
