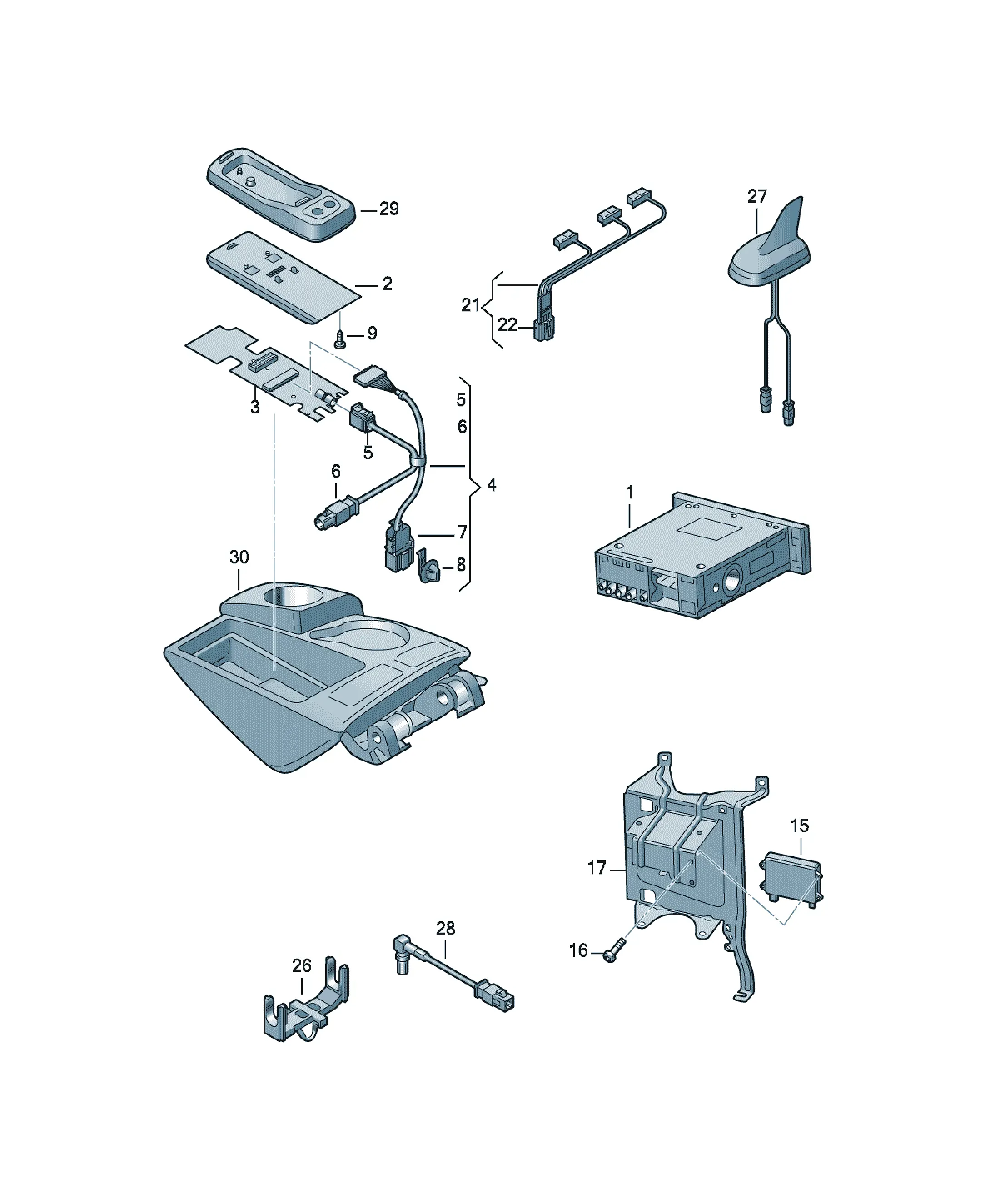

Mobile phone preparation kit

[Name] [Note] [Model info]

Control unit for infor- mation electronics

For vehicles with cellphone preparation

see illustration: 035-000 PR:8YQ,8AJ,

8DP

035-005 PR:8DY,8DS,

8DZ,8UV,8YF,

I6H

[Name] [Note] [Model info] [QTY]

2-way signal amplifier for mobile communications 'COMPENSER' PR:9ZF 1

D - 28.05.2012>>

mating connector

8E0971832 Flat contact housing with contact locking mechanism 4 pin 1

black

6Q0035576K Removable housing for aerial female connector 1 point 2

[Name] [Note] [Model info] [QTY]

2-way signal amplifier for mobile communications 'COMPENSER' PR:9ZF 1

D >> - 28.05.2012

mating connector

8E0971832 Flat contact housing with contact locking mechanism 4 pin 1

black

6Q0035576K Removable housing for aerial female connector 1 point 2

[Name] [Note] [Model info] [QTY]

round hd. screw M4X8 PR:9ZF 3

D >> - 28.05.2012

[Name] [Model info] [QTY]

Oval hexagon socket head bolt PR:9ZF 3

D - 28.05.2012>>

[Name] [Note]

mounting f.electr.contr.units

see illustration: 035-040

[Name] [Model info] [QTY]

Cellphone mounting holder PR:9ZF 1

[Name]

soul (black)

[Name] [Note] [Model info] [QTY]

1 set microphones with wiring loom lhd PR:9W0 1

'2 MIKROFONE'

For vehicles with voice activation and sound system

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [Note] [QTY]

1 set microphones with wiring loom lhd 1

'3 MIKROFONE'

For vehicles with hands-free device, voice activation and sound system

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

[Name] [Note] [QTY]

1 set microphones with wiring loom rhd 1

'3 MIKROFONE'

For vehicles with hands-free device, voice activation and sound system

mating connector

6Q0972706B Flat contact housing with contact locking mechanism 6 pin 1

white

[Name] [Note] [Model info] [QTY]

1 set microphones with wiring loom rhd PR:9W0 1

'2 MIKROFONE'

For vehicles with voice activation and sound system

mating connector

6Q0972706B Flat contact housing with contact locking mechanism 6 pin 1

white

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 6 pin 1

rhd

white

mating connector

6Q0972706B Flat contact housing with contact locking mechanism 6 pin 1

white

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 6 pin 1

lhd

blue

mating connector

6Q0972706 Flat contact housing with contact locking mechanism 6 pin 1

blue

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 A

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

-40C/+125C

Flat male connector with detent lug 0,63

[Name] [Note] [QTY]

bracket for connector housing 1 point 1

Aerial cable

[Name] [Note] [QTY]

bracket for connector housing 2 point 1

Aerial cable

[Name] [Note]

roof antenna

see illustration: 035-015

[Name] [Note]

adapter aerial wire

see catalogue: electr.connec- ting elements

[Name]

Adapter for cellphone

See AUDI genuine accessories

[Name] [Model info] [QTY]

P.C. board PR:9ZF 1

Cellphone mounting holder

Items supplied

8R0919059 P.C. board 90-00860-0003 1

Console for cellphone mounting

Hexagon socket flat head bolt 3

N 1452.22.60.1

mating connector

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

[Name] [Note]

Armrest

see illustration: 863-060

[Name] [Model info] [QTY]

wiring harness for telephone PR:9ZF 1

for model with telephone hand set in the centre armrest

mating connector

8K0973754A Flat contact housing 4 pin 1

brown

6Q0035576K Removable housing for aerial female connector 1 point 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Removable housing for aerial bracket female connector 1 pin PR:9ZF 1

light blue

only to be used for: all colours

[Name] [Note] [Model info] [QTY]

Removable housing for aerial pin connector 1 point PR:9ZF 1

light blue

only to be used for: all colours

mating connector

6Q0035576K Removable housing for aerial female connector 1 point X

only to be used for: all colours

use if required aerial wire adapter:

000 098 703

000 098 703 A

[Name] [Note] [Model info] [QTY]

flat connector housing 4 pin PR:9ZF 1

brown

use if required: 1M0 937 510

Accompanying details: 1M0937510

mating connector

8E0972754A Flat contact housing 4 pin 1

brown

8K0973754A Flat contact housing 4 pin 1

brown

Possible single wire:

000979012E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 0,63

counterpart to: 000 979 009 E

000979012EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

Flat male connector with detent lug 0,63

000979165E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X

[Name] [Note] [Model info] [QTY]

bracket for connector housing PR:9ZF 1

For hole/material thickness: 6,5-7/0,7-6MM

[Name] [Note] [QTY]

Hexagon socket flat head bolt 4X8 5
