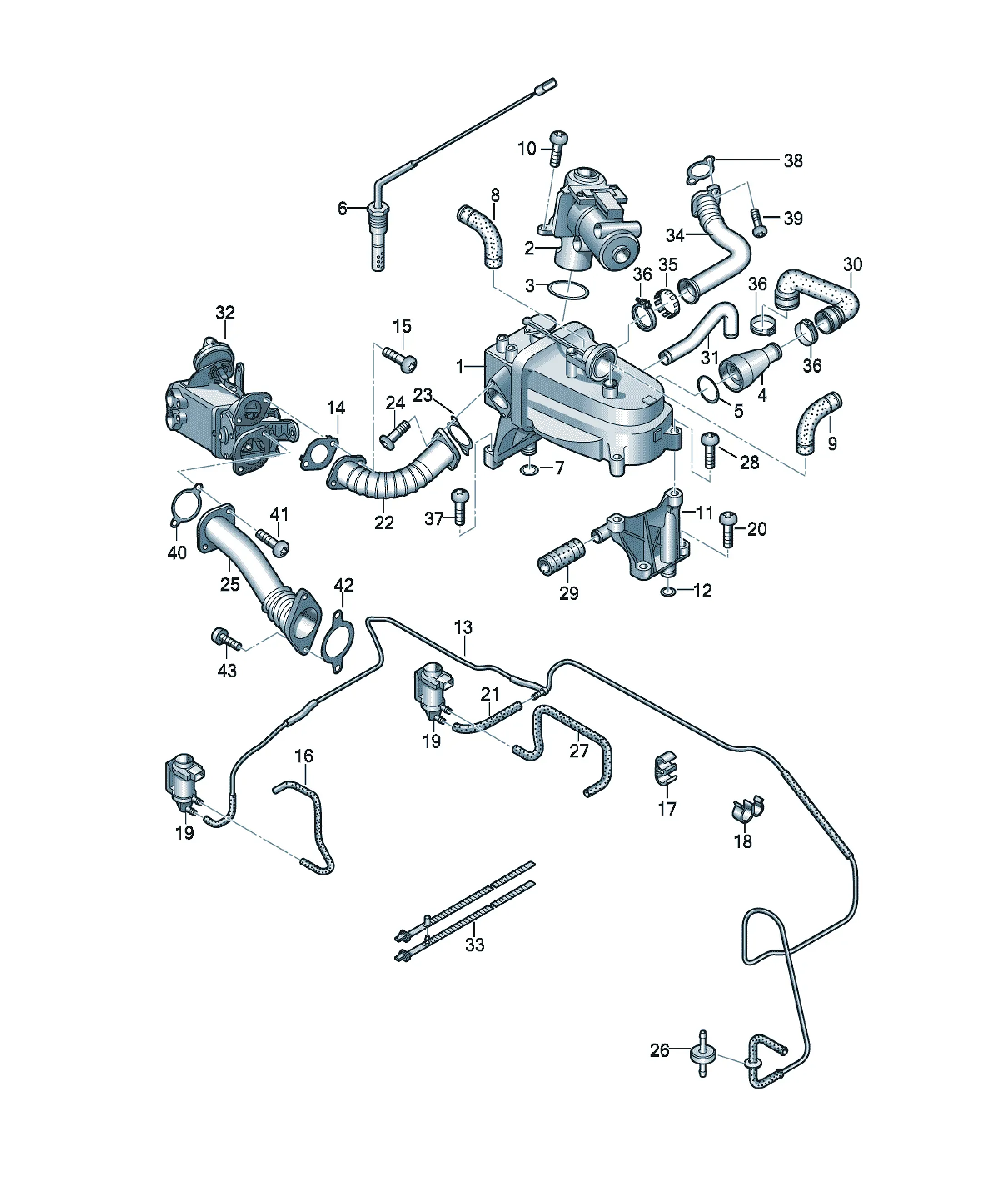

Vacuum and EGR system

[Name] [QTY]

retaining spring 1

[Name] [Note] [Model info] [QTY]

Cooler for exhaust recuperation CATA 1

contains additional positions: 2,3,4,5,6,7,8,

9

Replacements: 059131515FA

[Name] [Note] [Model info] [QTY]

Cooler for exhaust recuperation CCMA 1

contains additional positions: 2,3,4,5,6,7,8,

9

Replacements: 059131515ES

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X20 3

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

O-ring 16X2 1

[Name] [QTY]

Vacuum pipe 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 2

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [QTY]

Vacuum pipe 1

[Name] [Note] [QTY]

Clip 5/6 4

[Name] [Note] [QTY]

Clip 5/8 1

[Name] [QTY]

Solenoid valve 2

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

1K0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

8P0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

exhaust recirculation valve 1

Replacements: 059131502G

mating connector

1J0973713G Flat contact housing 6 pin 1

Grey

also to be used for: black

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 2

[Name] [QTY]

Vacuum pipe 1

[Name] [QTY]

Connecting pipe 1

Replacements: 059131534J

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [QTY]

Connecting pipe 1

Replacements: 059131521K

[Name] [QTY]

Non-return valve 1

[Name] [QTY]

Vacuum pipe 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 2

[Name] [Note]

see illustration: 121-024

[Name] [Note] [QTY]

O-ring 44X2,5 1

[Name] [Note]

supply pipe

see illustration, item: 121-024,37

[Name] [Note]

Return hose

see illustration, item: 121-024,38

[Name] [QTY]

Cooler for exhaust recuperation 1

Replacements: 059131512AC

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [QTY]

Connecting pipe 1

[Name] [QTY]

Seal 1

[Name] [QTY]

Clamp 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X30 2

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 2

[Name] [QTY]

Coolant regulator 1

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [QTY]

Seal 1

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 2

[Name] [Note] [QTY]

Spring band clamp 27X12 2

[Name] [Note] [QTY]

O-ring 26X2 1

[Name] [Note] [Model info] [QTY]

Exhaust gas temperature sender 2 pin CATA 1

orange

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [Model info] [QTY]

Exhaust gas temperature sender 2 pin CCMA 1

orange

mating connector

1J0973702C Flat contact housing with contact locking mechanism 2 pin 1

orange

8K0973702G Flat contact housing with contact locking mechanism 2 pin 1

orange

Possible single wire: 000 979 025 X

000 979 025 A X

000 979 150 X

000 979 150 A X

matching contact housing: 6X0 973 802 C

[Name] [Note] [QTY]

O-ring 11X3 1

[Name] [Note]

Return hose

see illustration: 121-024

[Name] [Note]

supply pipe

see illustration: 121-024
