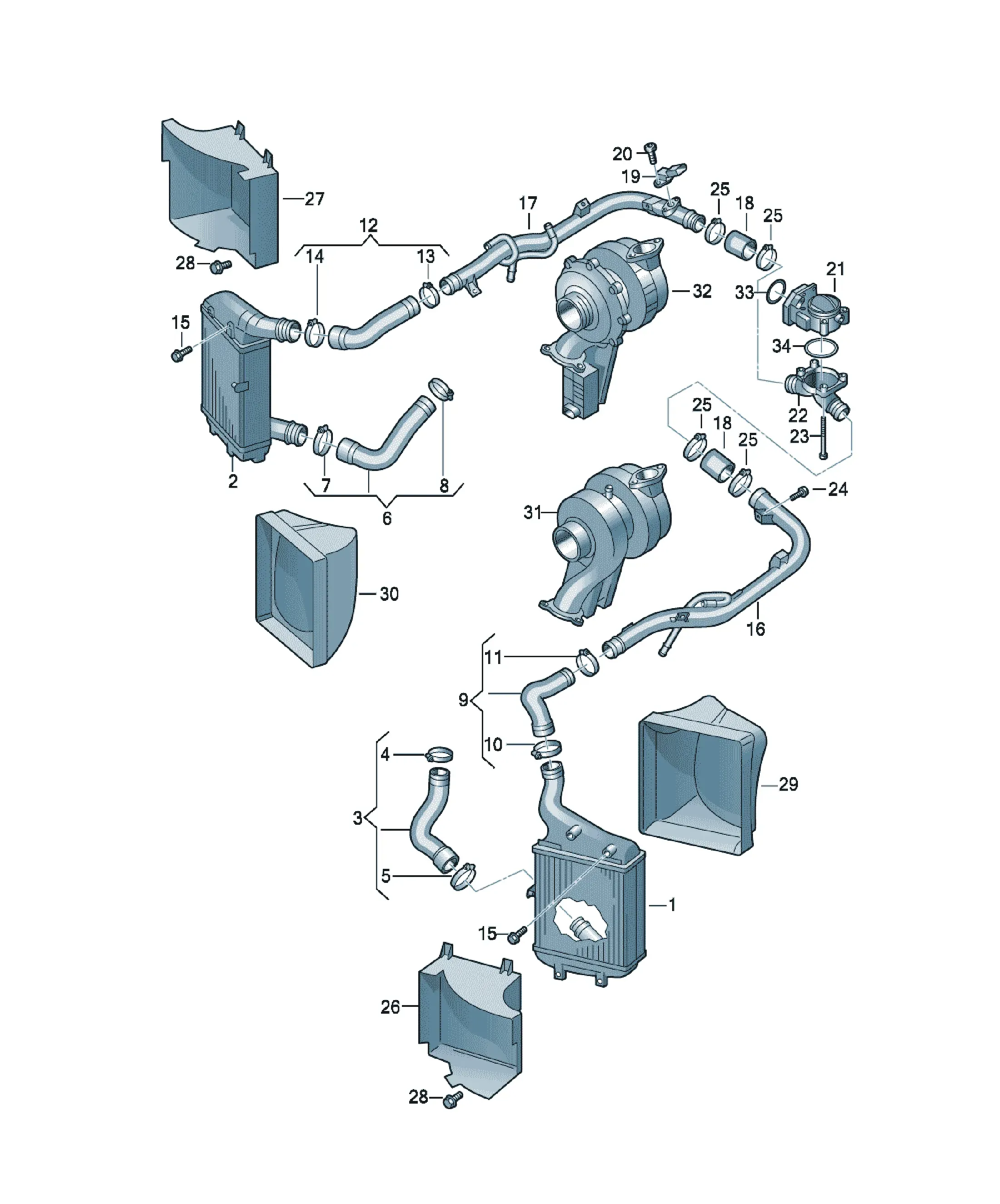

Charge air cooling system

[Name] [Note] [QTY]

Charge air cooler left 1

also use: 4L0 145 943 B 1

Accompanying details: 4L0145943B

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Pressure hose right upper 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Hex collared bolt M6X25 6

[Name] [Note] [QTY]

pressure pipe left upper 1

[Name] [Note] [QTY]

pressure pipe right upper 1

[Name] [QTY]

Pressure hose 2

[Name] [QTY]

Pressure sensor 1

Replacements: 03G906051M

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

optional: X

8K0973704 Flat contact housing with contact locking mechanism 4 pin 1

black

[Name] [Note] [QTY]

Charge air cooler right 1

also use: 4L0 145 944 B 1

Accompanying details: 4L0145944B

[Name] [Note] [QTY]

Hexagon socket flat head bolt, self-locking M6X16 2

[Name] [QTY]

Throttle valve 1

mating connector

1J0973704 Flat contact housing with contact locking mechanism 4 pin 1

[Name] [QTY]

Air guide housing 1

[Name] [Note] [QTY]

Hexagon socket head bolt M6X80 4

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X16 6

[Name] [Note] [QTY]

Hose clamp 50-70X12 1

[Name] [Note] [QTY]

Air guide left 1

[Name] [Note] [QTY]

Air guide right 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X10 4

[Name] [Note] [QTY]

Air guide for charge air cooler left 1

[Name] [Note] [QTY]

Pressure hose left lower 1

[Name] [Note] [QTY]

Air guide for charge air cooler right 1

[Name] [Note]

see illustration: 145-040

[Name] [Note]

see illustration: 145-040

[Name] [QTY]

O-ring 1

[Name] [QTY]

Square ring 1

[Name] [Note] [QTY]

Hose clamp 55-75X12 1

Replacements: N 10619901

[Name] [Note] [QTY]

Hose clamp 45-65X12 1

Replacements: N 10619801

[Name] [Note] [QTY]

Pressure hose right lower 1

[Name] [Note] [QTY]

Spring band clamp 55X75X12 1

Replacements: N 10619901

[Name] [Note] [QTY]

Hose clamp 45-65X12 1

[Name] [Note] [QTY]

Pressure hose left upper 1
