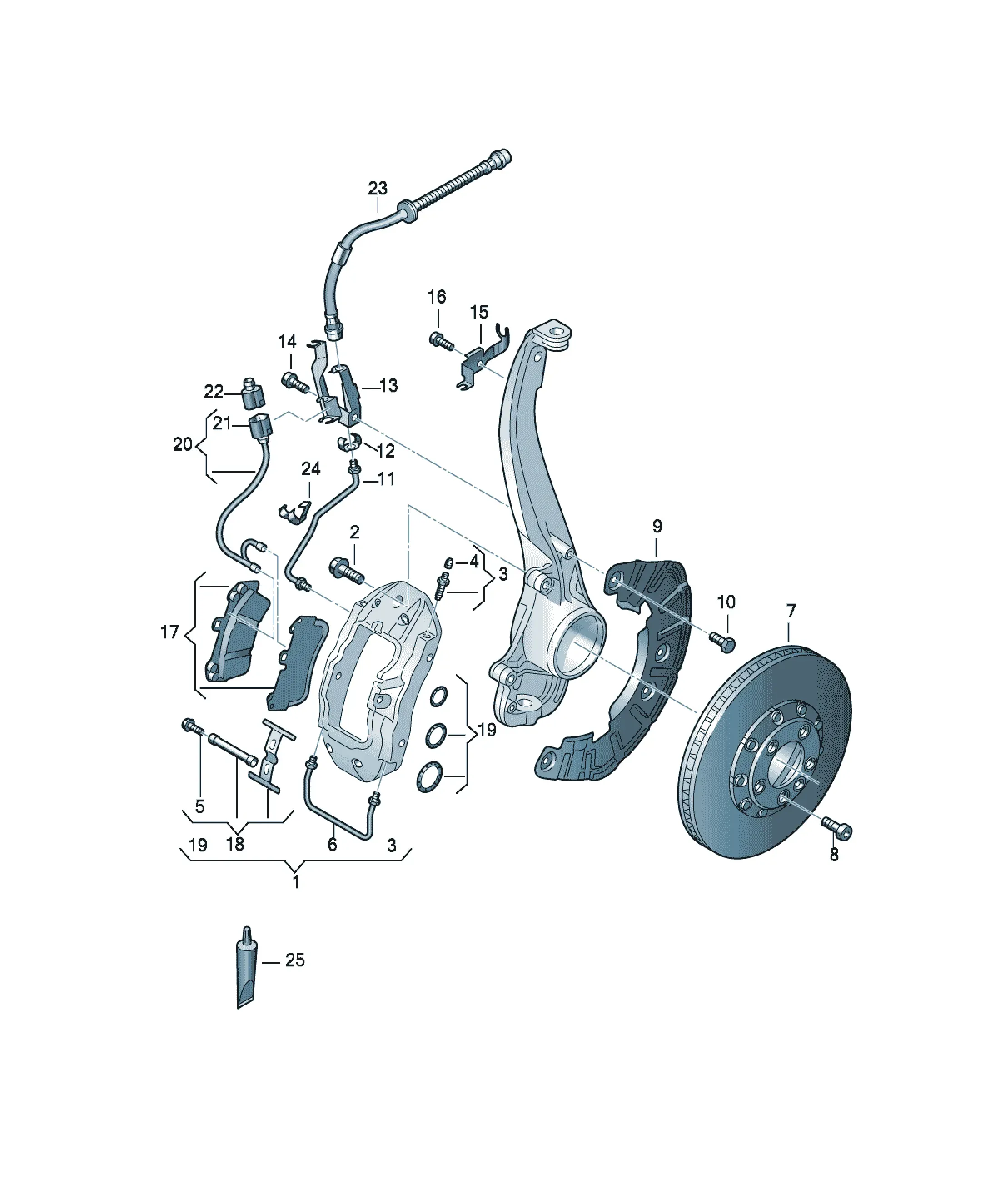

Brake caliper

[Name] [Note] [QTY]

caliper without brake pads right 1

black

[Name] [Note] [Model info] [QTY]

caliper without brake pads right PR:E5E 1

red

[Name] [Note] [Model info] [QTY]

caliper without brake pads left PR:E5E 1

red

[Name] [Note] [QTY]

caliper without brake pads left 1

black

[Name] [Note] [QTY]

Hexagon bolt M8X12 6

[Name] [Note] [QTY]

brake pipe from brake hose to piston housing left 1

D - 03.09.2012>>

[Name] [Note] [QTY]

brake pipe from brake hose to piston housing right 1

D >> - 03.09.2012

Replacements: 7P6614162

[Name] [Note] [QTY]

brake pipe from brake hose to piston housing right 1

D - 03.09.2012>>

[Name] [Note] [QTY]

brake pipe from brake hose to piston housing left 1

D >> - 03.09.2012

Replacements: 7P6614161

[Name] [QTY]

retaining spring 2

[Name] [Note] [QTY]

Bracket right 1

Replacements: 7P6971004

[Name] [Note] [QTY]

Bracket left 1

Replacements: 7P6971003

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M8X14 2

[Name] [Note] [QTY]

Bracket left upper 1

D >> - 14.05.2012

[Name] [Note] [QTY]

Bracket left upper 1

D - 14.05.2012>>

[Name] [Note] [QTY]

Bracket right upper 1

D - 14.05.2012>>

[Name] [Note] [QTY]

Bracket right upper 1

D >> - 14.05.2012

[Name] [Note] [QTY]

Oval hexagon socket head bolt M6X12 2

[Name] [Note] [QTY]

1 set of brake pads for disk brake 350X34MM 1

also use: 7L0 907 637 2

Accompanying details: 7L0907637

Replacements: 7L0698151R

repair set

7L0615115T Brake lining 4

[Name] [QTY]

1 set fixing parts for disc brake pads 1

repair set

radius rod 2

Spring 2

lock screw 2

[Name] [QTY]

Gasket set for fixed calliper 2

repair set

Protective cap 30MM 2

Protective cap 34MM 2

Protective cap 38MM 2

[Name] [Note] [QTY]

Hexagon bolt M16X1,5X48 4

[Name] [Note] [QTY]

contacts 280MM 2

brake pad wear display

mating connector

1J0973802 Flat connector housing with contact locking mechanism 2 pin 1

black

[Name] [Note] [QTY]

Flat contact housing with contact locking mechanism 2 pin 2

black

only to be used for: 7L0 907 637

counterpart to: 1J0 973 802

mating connector

1J0973802 Flat connector housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

flat contact 1,5

000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+105C

flat contact with retaining lug 1,5

000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

flat contact 1,5

(Copper wires galvanised)

000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

flat contact 1,5

000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

flat contact 1,5

[Name] [Note] [QTY]

Flat connector housing with contact locking mechanism 2 pin 2

black

counterpart to: 1J0 973 702

mating connector

1J0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

8K0973702 Flat contact housing with contact locking mechanism 2 pin 1

black

Possible single wire:

000979020E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979020EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+125C

Flat male connector with detent lug 1,5

000979132EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X

-40C/+105C

Flat male connector with detent lug 1,5

000979254E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X

-40C/+125C

Flat male connector with detent lug 1,5

[Name] [Note]

Brake hose

see illustration, item: 611-020,1

[Name] [Note] [QTY]

Lithium lubricating grease 180G 1

[Name] [QTY]

1 set bleeder valves with dust cap 2

and

dust cap

Items supplied

80A615273 Breather valve 2

80A611483 dust cap 2

[Name] [QTY]

dust cap 4

[Name] [Note] [QTY]

bolt, hex. hd. with shoulder, self-locking M8X16 2

[Name] [QTY]

Connecting pipe 2

[Name] [Note] [QTY]

Brake disc (vented) 350X34MM 5/130 1

right

[Name] [Note] [QTY]

Brake disc (vented) 350X34MM 5/130 1

left

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head M12X1,5X16X19 2

[Name] [QTY]

Cover plate for brake disc 2
