Rims / Wheels

Wheel rim

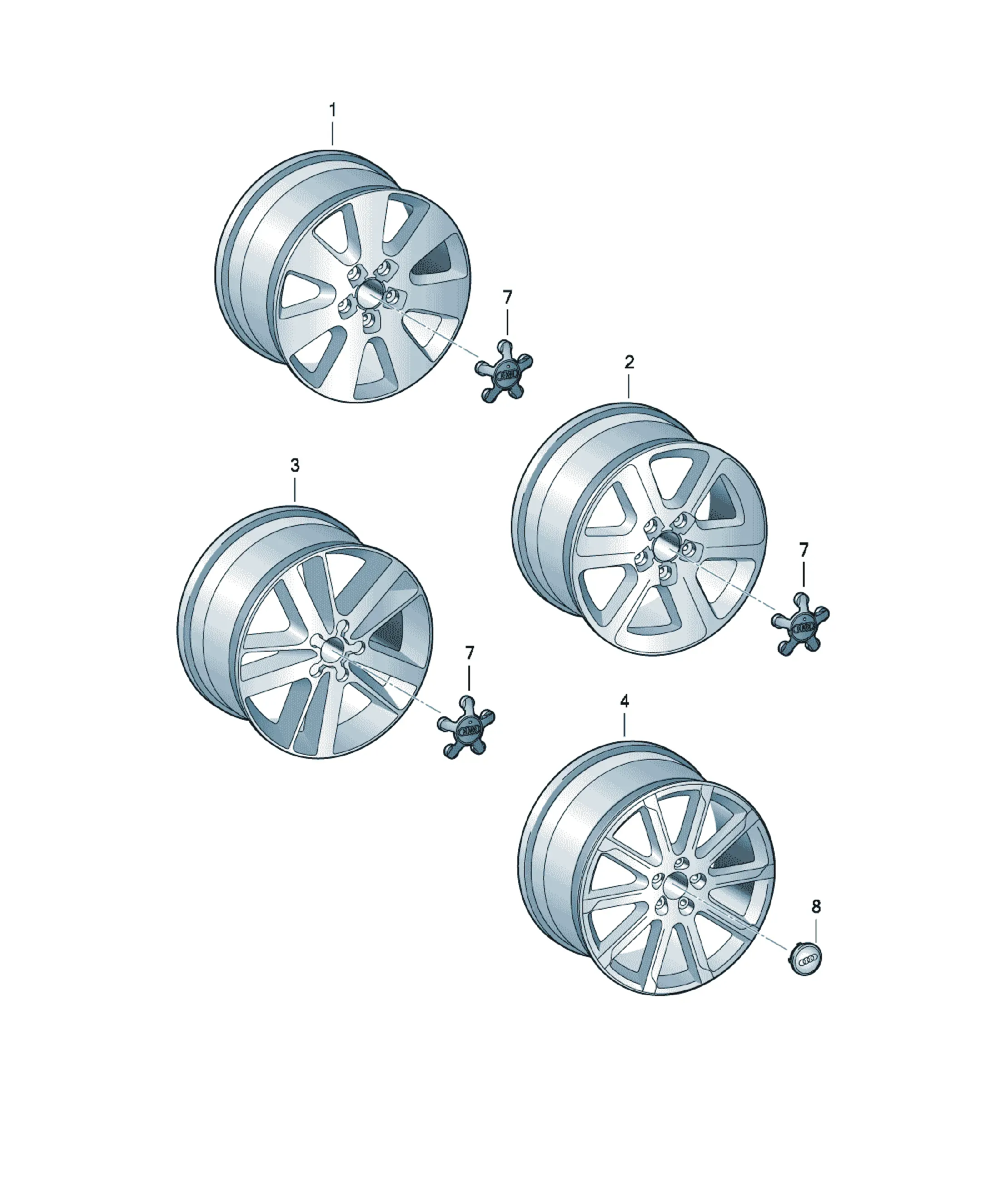

Assembly diagrams

8 diagrams

9 parts

* Please refer to your * vehicle documents and/or * service department catalogue * entitled 'Wheels and tyres' * for options of use for * rims and tyres approved * by the manufacturer

[Name]
* Please refer to your * vehicle documents and/or * service department catalogue * entitled 'Wheels and tyres' * for options of use for * rims and tyres approved * by the manufacturer
4L0601025AF Offers

[Name] [Note] [Model info] [QTY]
Aluminium rim 7,5JX18H2 ET53 PR:2YD 4
for winter tires 5/130
Colour code: 8Z8
D >> - 16.06.2014
Replacements: 4L0601025BG
4L0601025BG Offers

[Name] [Note] [Model info] [QTY]
Aluminium rim 7,5JX18H2 ET53 PR:2YD 4
for winter tires 5/130
Colour code: 8Z8
D - 16.06.2014>>
4L0601025AG Offers

[Name] [Note] [Model info] [QTY]
Aluminium rim 8 JX18H2 ET56 PR:7FB 4
for winter tires 5/130
Colour code: 8Z8
Replacements: 4L0601025BJ
4L0601025AJ Offers

[Name] [Note] [Model info] [QTY]
Aluminium rim 9 JX20H2 ET60 PR:3DA 4
for winter tires 5/130
Colour code: 16Z/K80
D >> - 01.10.2012
Replacements: 4L0601025BM
4L0601025BM Offers

[Name] [Note] [Model info] [QTY]
Aluminium rim 9 JX20H2 ET60 PR:3DA 4
for winter tires 5/130
Colour code: 16Z/K80
D - 01.10.2012>>
4L0601025BN Offers

[Name] [Note] [Model info] [QTY]
Aluminium rim 10JX20H2 ET44 PR:2WK 4
for winter tires 5/130
Colour code: 1H7
4L0601165D Offers

[Name] [Model info] [QTY]
Hub cap PR:2YD,7FB, 4
3DA
4L0601170 Offers

[Name] [Model info] [QTY]
Hub cap PR:2WK 4
Replacements: 4L0601170 7ZJ
