Engine electronics, sensors

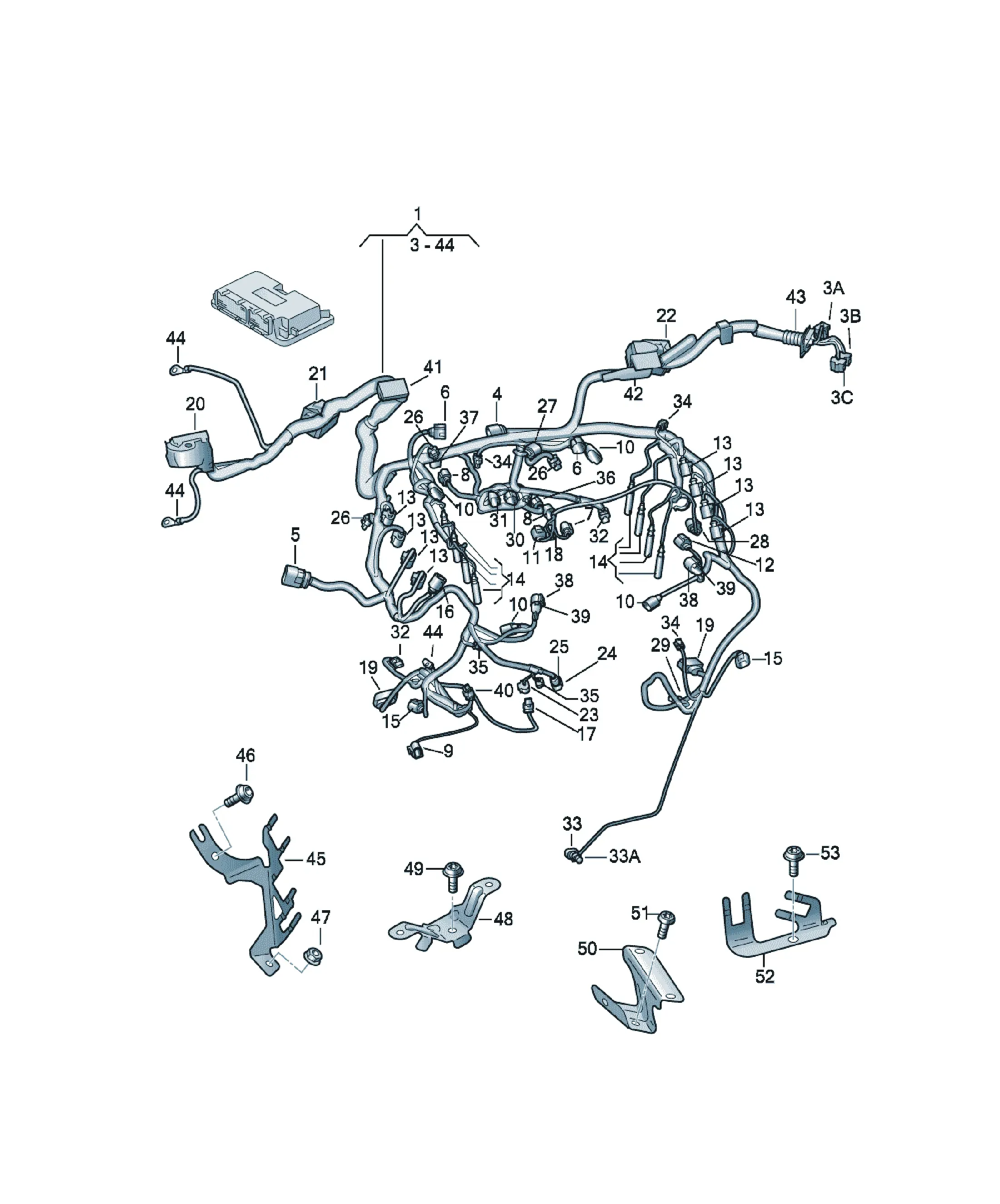

Engine wiring harness

Assembly diagrams

15 diagrams

Parts

58 parts

* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS

[Name]
* Corrug. tubes, T-pieces, * clips, holders, grommets, * cable ties, insulating * hose, wiring, * single wires and seals * see special catalogue: * ELECTRICAL * CONNECTING ELEMENTS
Protective cap
057915521 Offers

[Name] [Note] [QTY]
Protective cap KL.30 2
Connection piece
heater
4L1971610AB Offers

[Name] [Note] [Model info] [QTY]
Wiring set for engine lhd CCFC 1
4L2971610AC Offers

[Name] [Note] [Model info] [QTY]
Wiring set for engine rhd CCFC 1
8K0973705 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 5 pin X
Connection piece
Tumble flap for variable intake manifold
left a. right 2
Throttle valve positioner 2
mating connector
8K0973805 flat connector housing 5 pin 1
black
6N0973805 Flat contact housing 5 pin 1
Possible single wire:
000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 1,5
000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 0,5
1,5
(Copper wires galvanised)
000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 1,5
000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973722 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black
Connection piece
Cooler for exhaust recuperation
mating connector
8D0973822 Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
8P0973722 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black
Connection piece
Additional coolant pump
mating connector
8D0973822 Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire:
000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
4D0971992 Offers

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 8
black/violet
Connection piece
Injection valve
Possible single wire:
000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 2,8
000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X
-40C/+105C
flat contact 2,8
000979237EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact 2,8
07Z971782 Offers

[Name] [QTY]
Round insert sleeve with line 8
Connection piece
Glow plug
Replacements: 4G0971782
1J0973722 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 2
black
Connection piece
heater pipe left a. right
mating connector
8D0973822 Flat connector housing with contact locking mechanism 2 pin 1
Possible single wire:
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
4D0971992A Offers

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 1
black
Connection piece
Pressure regulating valve
Possible single wire:
000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 2,8
000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X
-40C/+105C
flat contact 2,8
4H0973703 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 1
Connection piece
impulse sender
Crankshaft
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
4H0973703 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 1
Connection piece
A/C compressor
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
4E0973715 Offers

[Name] [Note] [QTY]
Flat contact housing 5 pin 2
Connection piece
wastegate left a. right
Possible single wire:
000979032EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
flat contact with retaining lug 0,5
2,8
000979157EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
flat contact with retaining lug 1,0
2,8
7P6906235 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 105 pin 1
black
Connection piece
Control unit for diesel engine MASTER
use if required: 4H0 971 904
4H0 971 904 A
Accompanying details: 4H0971904; 4H0971904A
Possible single wire:
000979046E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve 1,2
000979046EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5
flat connector/sleeve 1,2
000979256E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,2
4H0971904 Sealing pin 0,35-0,75 QMM X
4H0971904A Sealing pin 1,0-1,5 QMM X
4H0906235 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 105 pin 1
black
Connection piece lhd
Control unit for diesel engine SLAVE
use if required: 4H0 971 904
4H0 971 904 A
Accompanying details: 4H0971904; 4H0971904A
Possible single wire:
000979046E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve 1,2
000979046EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5
flat connector/sleeve 1,2
000979256E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,2
4H0971904 Sealing pin 0,35-0,75 QMM X
4H0971904A Sealing pin 1,0-1,5 QMM X
4H0906235 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 105 pin 1
black
Connection piece rhd
Control unit for diesel engine SLAVE
use if required: 4H0 971 904
4H0 971 904 A
Accompanying details: 4H0971904; 4H0971904A
Possible single wire:
000979046E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve 1,2
000979046EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5
flat connector/sleeve 1,2
000979256E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,2
4H0971904 Sealing pin 0,35-0,75 QMM X
4H0971904A Sealing pin 1,0-1,5 QMM X
1J0973081 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 1 pin 1
black
Connection piece
Oil pressure switch
Low-pressure switch
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black
Connection piece
Oil pressure switch
High-pressure switch
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0971921K Offers

[Name] [Note] [QTY]
Protective cap 2 pin 1
Connection piece black
Oil pressure switch
High-pressure switch
4H0973703 Offers

[Name] [QTY]
Flat contact housing with contact locking mechanism X
Connection piece
impulse sender
Camshaft 1
Pressure sensor
Exhaust gas recirculation 2
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
4D0971992 Offers

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 1
black/blue
Connection piece
high pressure pump
Possible single wire:
000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 2,8
000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X
-40C/+105C
flat contact 2,8
000979237EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 2,5
flat contact 2,8
4D0971993 Offers

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 3 pin 1
black
Connection piece
Pressure sensor
Fuel line
Possible single wire:
000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 2,8
000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X
-40C/+105C
flat contact 2,8
07P973702 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black/yellow
Connection piece
control valve
oil pump
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
1J0973702A Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
brown
Connection piece
Exhaust gas temperature sender
(Before turbocharger)
mating connector
6X0973802A Flat contact housing with contact locking mechanism 2 pin 1
dark brown
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
black
Connection piece
Exhaust gas temperature sender
(Before turbocharger)
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4H0973703 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 2
black
Connection piece
speed sender
Exhaust gas turbocharger left a. right
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
3D0973703 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 3 pin 1
black
Connection piece
oil level sensor
mating connector
1J0973803 Flat contact housing with contact locking mechanism 3 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
6N0906102 Offers

[Name] [Note] [QTY]
Grommet 11,9X53 1
Connection piece black
oil level sensor
07P973702 Offers

[Name] [QTY]
Flat contact housing with contact locking mechanism X
Connection piece 1
Coolant temperature sender 1
Fuel temperature sender
Temperature sensor 1
Cylinder head
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
4H0973702A Offers

[Name] [QTY]
Flat contact housing X
Connection piece
Oil temperature sender
Temperature sensor 1
Exhaust gas recirculation
mating connector
5Q0973802 flat connector housing 2 pin 1
black
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
8K0973702A Offers

[Name] [Note] [Model info] [QTY]
Flat contact housing with contact locking mechanism 2 pin PR:7MG 1
brown
Connection piece
Exhaust gas temperature sender
(behind catalyst)
mating connector
6X0973802A Flat contact housing with contact locking mechanism 2 pin 1
dark brown
Possible single wire:
000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 1,5
000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 0,5
1,5
(Copper wires galvanised)
000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 1,5
000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
8K0973702 Offers

[Name] [Note] [Model info] [QTY]
Flat contact housing with contact locking mechanism 2 pin PR:7MG 1
black
Connection piece
Exhaust gas temperature sender
(behind catalyst)
mating connector
1J0973802 Flat connector housing with contact locking mechanism 2 pin 1
black
Possible single wire:
000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 1,5
000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 0,5
1,5
(Copper wires galvanised)
000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 1,5
000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4H0973712 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 4 pin 2
black
Connection piece
intake pipe for intake air pre-heating
mating connector
7L0973812 Flat connector housing with contact locking mechanism 4 pin X
4B0973812 Flat connector housing with contact locking mechanism 4 pin X
Possible single wire:
000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979025FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
(Copper wires galvanised)
000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 1,5
000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 1,5
000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 1,5
000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1E0971921 Offers

[Name] [Note] [QTY]
Bracket protective cover 4 pin 2
Connection piece black
intake pipe for intake air pre-heating
8D0937733B Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 10 pin 1
red
Coupling element
harness for engine compartment
mating connector
1J0937743B Flat connector housing with contact locking mechanism 10 pin 1
red
also to be used for: white
light-green
Possible single wire:
000979025E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
flat contact with retaining lug 0,5
1,5
GEGENSTUECK
000979025EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 1,5
000979025EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979026E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979026EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979150E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979150EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 1,5
000979150EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' 1,0 X
-40C/+105C
flat contact with retaining lug 1,5
000979151E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979151EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 2,8
000979242E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact with retaining lug 2,8
000979242EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 2,8
000979255E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
8E0972585 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 17-pin 1
black
Coupling element
harness for engine compartment
mating connector
8E0972575 Flat contact housing with contact locking mechanism 17-pin 1
black
also to be used for: white
dark brown
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 EA
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979135E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact with retaining lug 4,8
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
8E0972585A Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 17-pin 1
brown
Coupling element
harness for engine compartment
mating connector
8E0972575A Flat contact housing with contact locking mechanism 17-pin 1
brown
only to be used for: green
Possible single wire:
000979009E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 E
000979009EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
counterpart to: 000 979 012 EA
000979021E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 022 E
000979021EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979023E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 4,8
000979133E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979133EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979164E 1 set single wires (high temperature resistant) each with 2 contacts, in bag containing 5 items 'Order qty. 5' 0,75 X
-40C/+125C
flat connector/sleeve with retaining lug 0,63
000979225E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
flat contact 2,8
000979225EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact 2,8
000979227E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979227EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
flat contact with retaining lug 4,8
000979306E 1 set single wires each with 2 contacts, in bag of 4 'Order qty. 4' 4,0 X
-40C/+125C
flat contact with retaining lug 4,8
6X0973717 Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 14 pin 1
black
Coupling element
harness for engine compartment
mating connector
6X0973817 Flat contact housing with contact locking mechanism 14 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4H0973703 Offers

[Name] [QTY]
Flat contact housing with contact locking mechanism 1
Connection piece
Additional coolant pump
Possible single wire:
000979034E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979034EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 0,5QMM
flat contact with retaining lug 1,2MM
000979159E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
000979159EC 1 set single wires each with 2 silver-plated contacts, in bag of 5 'Order quantity. 5' X
-40C/+125C
with cable crosssection: 1,0QMM
flat contact with retaining lug 1,2MM
4L0971841L Offers

[Name] [QTY]
Grommet 1
water box
7L6971871B Offers

[Name] [QTY]
Grommet 1
water box
7L0941389D Offers

[Name] [QTY]
Grommet 1
[Name] [QTY]
cable shoe 3
see spec. catalogue >>ep198<< -elect. connecting elements
057971845D Offers

[Name] [QTY]
Bracket 1
Connection piece
Lambda probe
N10335206 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 1
Bracket
Connection piece
Lambda probe
171201969 Offers

[Name] [QTY]
Hexagon collar nut 2
Bracket
Connection piece
Lambda probe
057971845T Offers

[Name] [QTY]
holder for wiring harness 1
Heater element
N91126701 Offers

[Name] [Note] [QTY]
Flat head multi-point socket bolt M8X115X80 1
holder for wiring harness
Heater element
8D0973834 Offers

[Name] [Note] [QTY]
Flat contact housing 8 pin 1
Coupling element black
harness for engine compartment
mating connector
8D0973734 Flat contact housing 8 pin 1
black
Possible single wire:
000979022E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
Flat male connector with detent lug 2,8
counterpart to: 000 979 021 E
000979022EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
Flat male connector with detent lug 2,8
000979134E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Flat male connector with detent lug 2,8
000979134EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+105C
Flat male connector with detent lug 2,8
000979226E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+125C
Flat male connector with detent lug 2,8
000979226EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 2,5 X
-40C/+105C
Flat male connector with detent lug 2,8
7P6971845 Offers

[Name] [QTY]
Bracket 1
harness for engine compartment
N10405604 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 1
Bracket
harness for engine compartment
079905471R Offers

[Name] [QTY]
Bracket 1
Connection piece
Exhaust gas temperature sender
N91096701 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 1
1J0973713G Offers

[Name] [Note] [QTY]
Flat contact housing 6 pin 2
Connection piece black
engine mounting
exhaust recirculation valve
mating connector
4G0973813B Flat connector housing with contact locking mechanism 6 pin 1
Grey
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
1J0973702A Offers

[Name] [Note] [QTY]
Flat contact housing with contact locking mechanism 2 pin 1
brown
Connection piece
Temperature sensor
Cooler for exhaust recuperation
mating connector
6X0973802A Flat contact housing with contact locking mechanism 2 pin 1
dark brown
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
3D0973703 Offers

[Name] [Note] [Model info] [QTY]
Flat contact housing with contact locking mechanism 3 pin PR:7MG 2
black
Connection piece
Pressure sensor
emission warning sensor
mating connector
1J0973803 Flat contact housing with contact locking mechanism 3 pin 1
black
Possible single wire:
000979019E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 E
000979019EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 1,5
counterpart to: 000 979 020 EA
000979038EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+105C
flat contact with retaining lug 1,5
000979038FA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 0,5 X
flat contact 1,5
(Copper wires galvanised)
000979131E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979131EA 1 set single wires each with 2 gold-plated contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 1,5
000979253E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,5 X
-40C/+125C
flat contact 1,5
4D0971992B Offers

[Name] [Note] [QTY]
Flat connector housing with contact locking mechanism 2 pin 1
black/orange
Connection piece
Alternator
Possible single wire:
000979016E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 0,5 X
-40C/+125C
flat contact 2,8
000979141E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 1,0 X
-40C/+125C
flat contact 2,8
000979237E 1 set single wires each with 2 contacts, in bag of 5 'Order qty. 5' 2,5 1,0 X
-40C/+105C
flat contact 2,8

Engine wiring harness

Assembly diagrams

Parts

Catalog

More

Contact us
