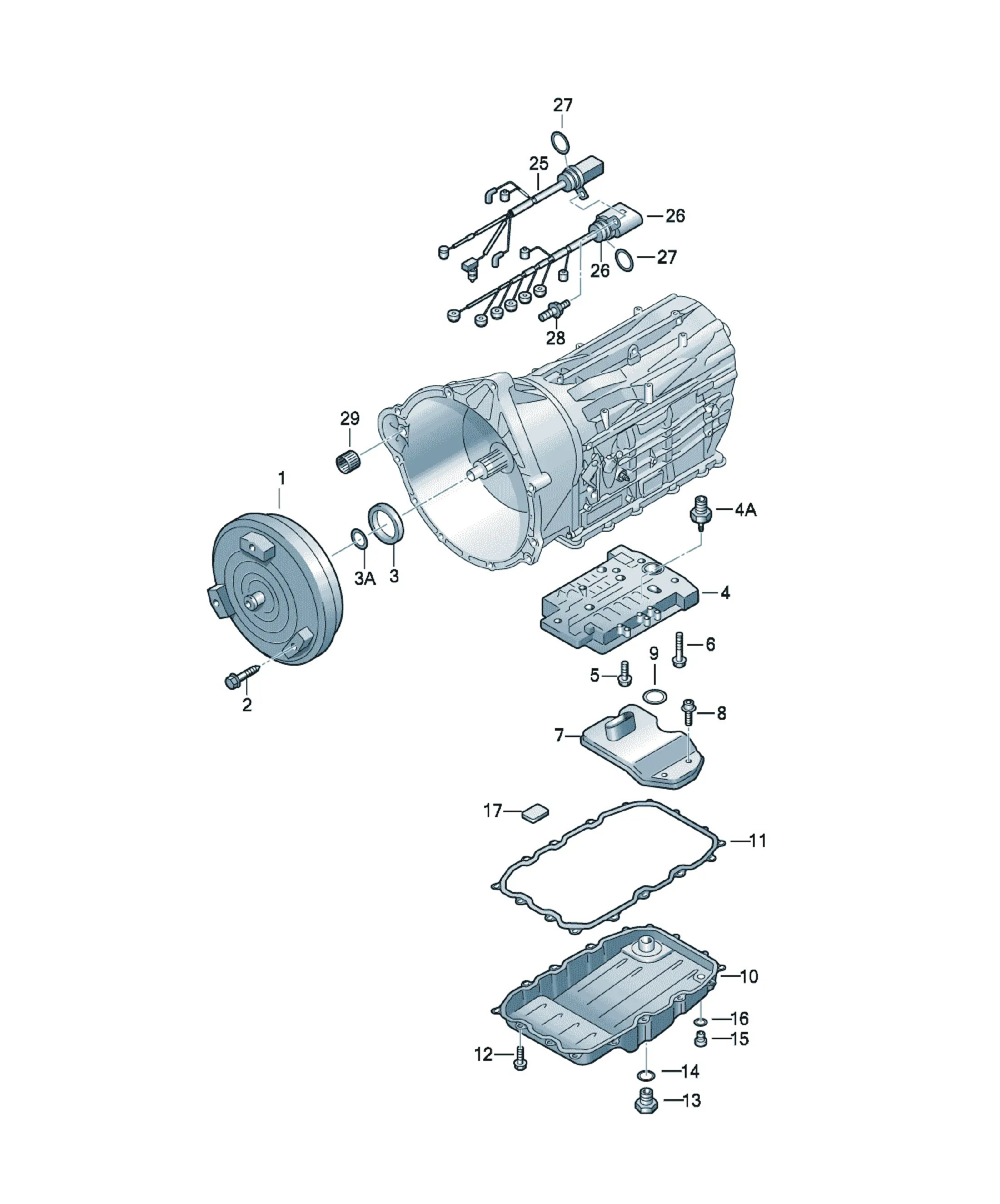

Automatic transmission

[Name] [Note] [QTY]

Gearbox speed sender G195 1

see illustration: 927-070

[Name] [Note] [QTY]

Hexagon nut M6 1

[Name] [QTY]

holder for wiring harness 1

multi-function switch for automatic gearbox

[Name] [Note]

Gearbox speed sender G182

No replacement part

[Name] [Model info] [QTY]

Converter KMF 1

[Name] [Model info] [QTY]

Converter KRK 1

[Name] [Model info] [QTY]

Converter KMB 1

[Name] [Model info] [QTY]

Converter KME 1

[Name] [QTY]

Transmission oil sump 1

[Name] [QTY]

gasket for oil sump 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X25 16

[Name] [Note] [QTY]

sealing plug M24X1,5 1

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

drain plug M10X9 1

[Name] [QTY]

seal ring 1

[Name] [QTY]

Magnet 4

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X1X17 6

[Name] [Note] [QTY]

Wiring set for 6-speed automatic gearbox 8 pin 1

see illustration: 927-070

[Name] [Note] [QTY]

Wiring set for 6-speed automatic gearbox 14 pin 1

see illustration: 927-070

[Name] [Note]

Adapter cable loom

see illustration: 971-075

[Name] [Note] [QTY]

O-ring 1

see illustration: 927-070

[Name] [Note] [QTY]

double stud with hexagon drive 1

see illustration: 927-070

[Name] [Note] [QTY]

radial shaft seal 43X62X8 1

[Name] [QTY]

seal ring 1

[Name] [Model info] [QTY]

valve body KME,KMB,KRK 1

Exchange program parts: 09D325039KX

[Name] [Model info] [QTY]

valve body KMF 1

Exchange program parts: 09D325039GX

[Name] [Note] [QTY]

Oil pressure switch G193/G194 2

see illustration: 927-070

[Name] [Note] [QTY]

Hex collared bolt M6X1X28 11

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X40 3

[Name] [QTY]

oil strainer 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X12 3

[Name] [QTY]

Seal 1
