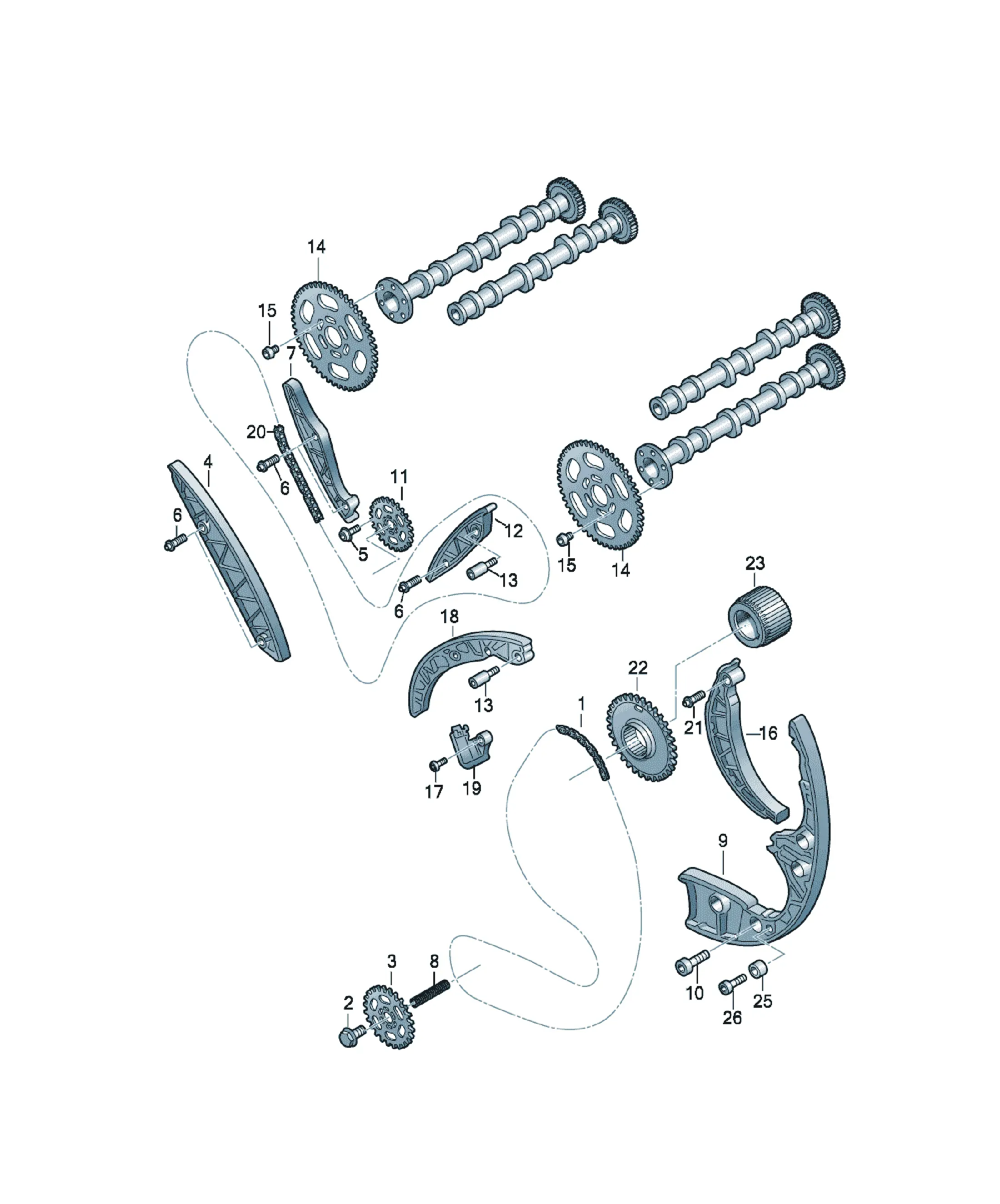

Timing drive

[Name] [QTY]

timing chain 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 6

[Name] [QTY]

Chain sprocket 1

[Name] [QTY]

slide rail 1

[Name] [QTY]

axle 5

[Name] [QTY]

Chain sprocket 1

[Name] [Note] [QTY]

Socket head collared bolt with inner multipoint head M8X12 10

[Name] [QTY]

slide rail 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 6

[Name] [QTY]

slide rail 1

[Name] [QTY]

chain tensioner 1

[Name] [Note] [QTY]

fitted bolt, hexagon head M10X20 1

[Name] [Model info] [QTY]

timing chain CLZB,CNRB 1

[Name] [QTY]

timing chain 1

Replacements: 059109229AA

[Name] [QTY]

Hexagon socket flat head bolt with guide sleeve 1

[Name] [Note] [QTY]

Chain sprocket 1

only for:

high pressure pump 059 130 141 F

[Name] [Note] [Model info] [QTY]

Chain sprocket CNRB,CLZB 1

only for:

high pressure pump 059 130 141 H

Replacements: 059109569S

[Name] [Note]

flange

see illustration: 130-037

[Name] [Note] [QTY]

spacer bush 6X15,5X8 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 6

[Name] [QTY]

Chain sprocket 1

[Name] [QTY]

slide rail 1

[Name] [Note] [QTY]

Screw with int. serrations M8X20 3

[Name] [QTY]

axle 5

[Name] [QTY]

slide rail 1

[Name] [QTY]

Pressure spring 1

[Name] [QTY]

chain tensioner 1

Replacements: 059109507R
