Vacuum pump

Vacuum pump

Assembly diagrams

5 diagrams

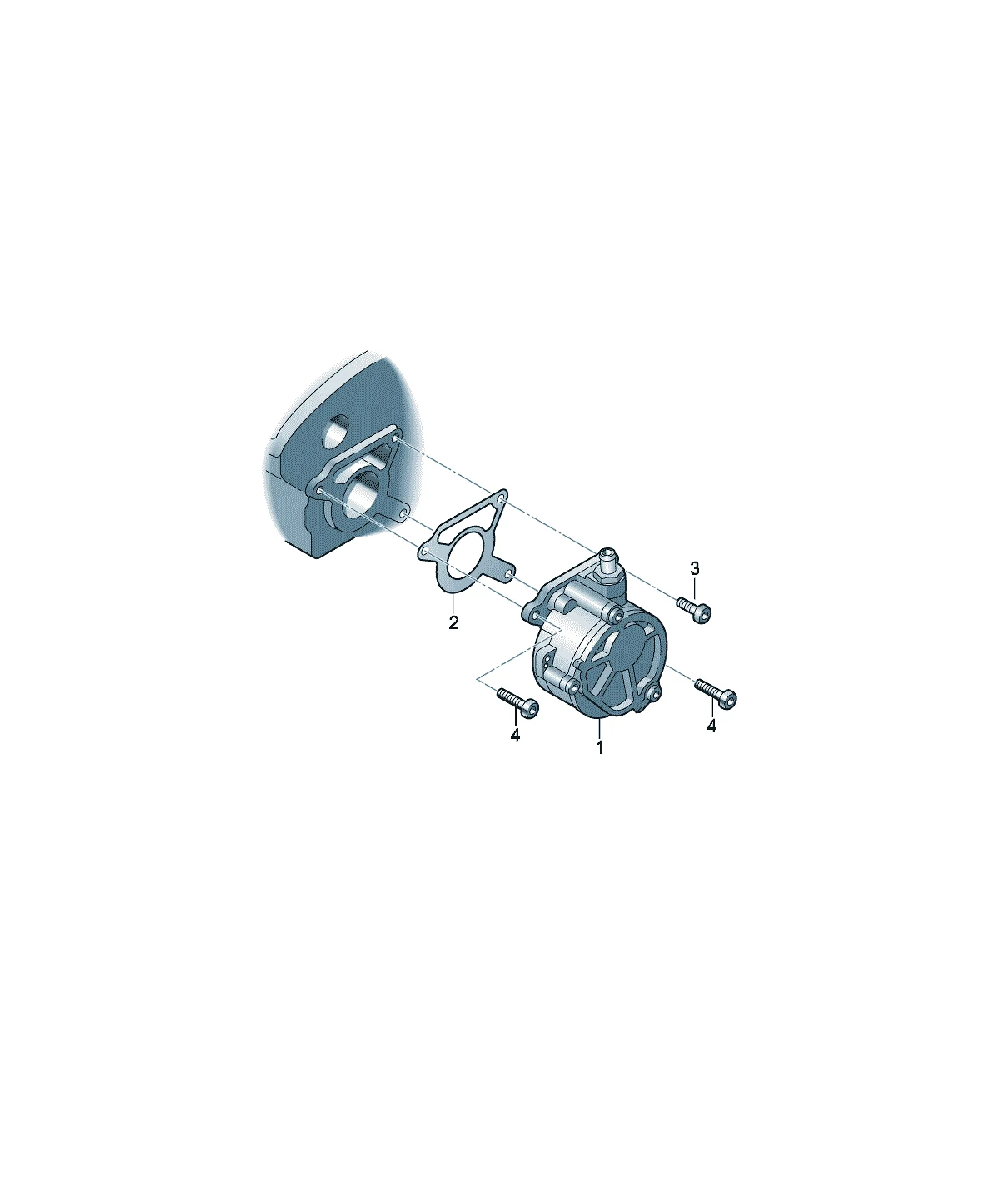

Vacuum pump diagram

Parts

4 parts

03H145100C Offers

[Name] [QTY]
Vacuum pump 1
Replacements: 03H145100E
03H145113 Offers

[Name] [QTY]
Seal 1
Replacements: 03H145113B
N10124306 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X20 1
N10582103 Offers

[Name] [Note] [QTY]
oval head countersunk bolt with multi-point socket head M6X40 2
