Hoses / pipes

Cooling system

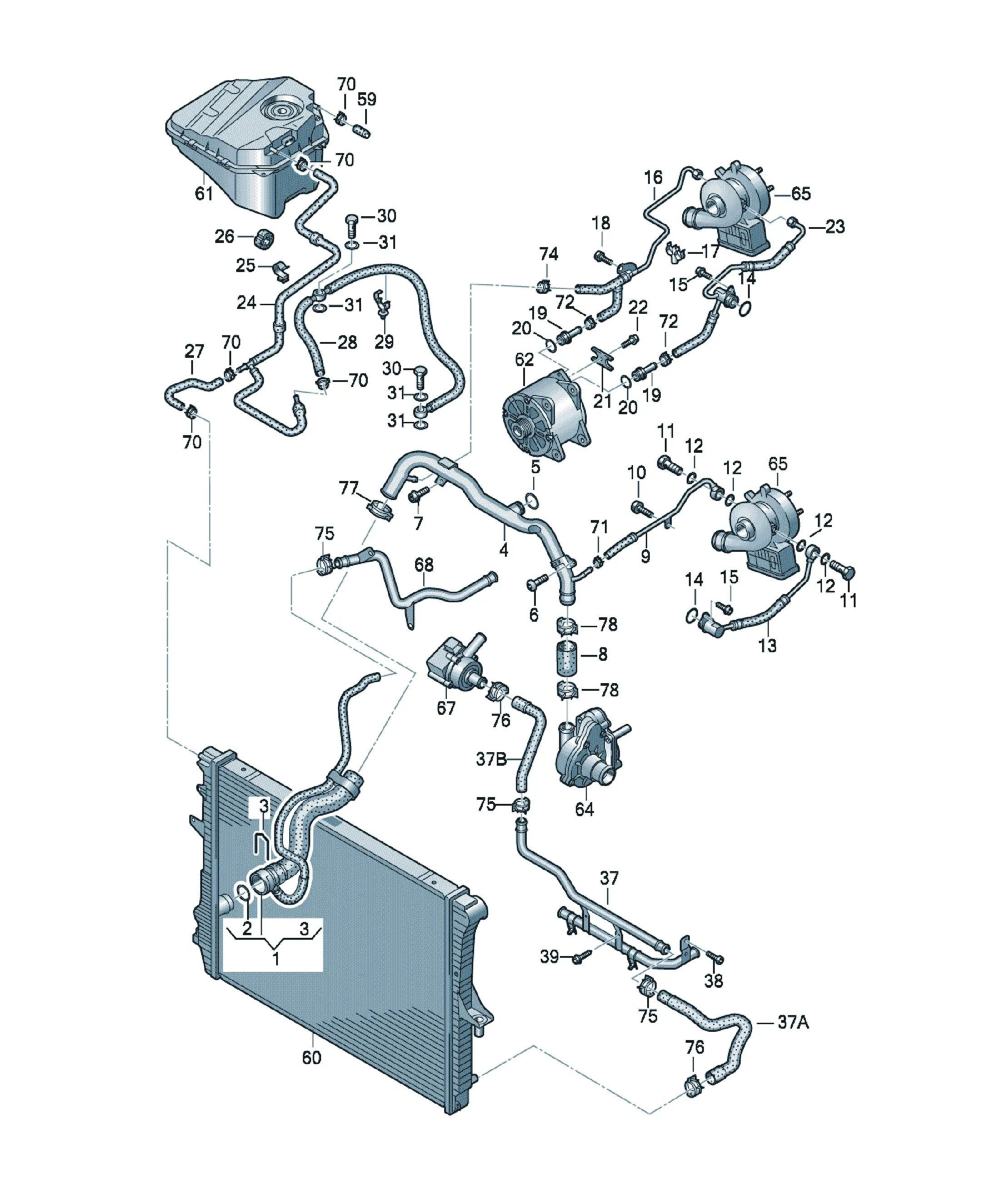

Cooling system diagram

Parts

52 parts

7L8122101E Offers

[Name] [QTY]
Coolant hose with quick release coupling 1
N10405604 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X14 1
N0210748 Offers

[Name] [Note] [QTY]
Banjo bolt 10 2
N0138495 Offers

[Name] [Note] [QTY]
seal ring 14X20 4
057121597R Offers

[Name] [Note] [QTY]
Coolant pipe left 1
N91008401 Offers

[Name] [Note] [QTY]
O-ring 19,6X3 2
N10335206 Offers

[Name] [Note] [QTY]
Hexagon socket flat head bolt M6X12 2
057121492R Offers

[Name] [Note] [QTY]
Coolant pipe right 1
N10186701 Offers

[Name] [Note] [QTY]
Hose bracket 8/8 1
N0447276 Offers

[Name] [Note] [QTY]
Socket head bolt with hexagon socket head M10X16 1
059121131B Offers

[Name] [QTY]
water connection 2
4E0121666 Offers

[Name] [Note] [QTY]
O-ring 38X4 1
N90783401 Offers

[Name] [Note] [QTY]
O-ring 13,1X1,6 2
057121077 Offers

[Name] [QTY]
Bracket 1
water connection
N10156206 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X30 1
057121598L Offers

[Name] [Note] [QTY]
Coolant pipe right 1
7L8122447 Offers

[Name] [QTY]
Vent hose 1
7L6121095A Offers

[Name] [QTY]
Retaining clip X
N10722501 Offers

[Name] [QTY]
Distance piece 1
7L6121447K Offers

[Name] [QTY]
Coolant hose 1
057121086M Offers

[Name] [QTY]
Coolant hose 1
059131694AJ Offers

[Name] [Note] [QTY]
Clip 10 - 24 1
4E0121142 Offers

[Name] [Note] [QTY]
retaining spring 38MM 1
N91043801 Offers

[Name] [Note] [QTY]
Banjo bolt 8 2
N0138076 Offers

[Name] [Note] [QTY]
seal ring 8X11,5 4
7L8121065AD Offers

[Name] [Note] [QTY]
Coolant pipe lower centre 1
7L8121051E Offers

[Name] [Note] [QTY]
Coolant hose left 1
7L8121051B Offers

[Name] [Note] [QTY]
Coolant hose right 1
N91007301 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head (Kombi) M6X15 1
057121071AH Offers

[Name] [QTY]
Coolant pipe 1
N90713203 Offers

[Name] [Note] [QTY]
O-ring 31X3 1
7L6121099 Offers

[Name] [QTY]
Bungs 1
N10451408 Offers

[Name] [Note] [QTY]
Oval hexagon socket head bolt M6X16 2
[Name] [Note]
Cooler for coolant
see illustration: 121-072
[Name] [Note]
Reservoir
see illustration: 121-070
[Name] [Note]
Alternator
see illustration: 903-000
[Name] [Note]
Coolant pump
see illustration: 121-004
[Name] [Note]
Exhaust gas turbocharger
see illustration: 145-035
[Name] [Note]
Additional coolant pump
see illustration: 121-031
[Name] [Note]
Coolant pipe
see illustration: 121-031
N91136101 Offers

[Name] [Note] [QTY]
Socket head bolt with inner multipoint head M8X14 1
N90686701 Offers

[Name] [Note] [QTY]
Spring band clamp 14X12 X
N90686701 Offers

[Name] [Note] [QTY]
Spring band clamp 14X12 X
N90770201 Offers

[Name] [Note] [QTY]
Spring band clamp 17X12 X
N10255501 Offers

[Name] [Note] [QTY]
clamp 17,5X7X0,6 X
N90926401 Offers

[Name] [Note] [QTY]
Spring band clamp 19X12 X
N90686902 Offers

[Name] [Note] [QTY]
Spring band clamp 23X12 X
N90687001 Offers

[Name] [Note] [QTY]
Spring band clamp 27X12 X
N90687201 Offers

[Name] [Note] [QTY]
Spring band clamp 40X12 X
N10557301 Offers

[Name] [Note] [QTY]
Ear crimp hose clamp 41,0 X
079121102B Offers

[Name] [QTY]
Coolant hose 1
057121491G Offers

[Name] [Note] [QTY]
Coolant pipe left 1
Replacements: 057121491J
