Front bumper

Front bumper

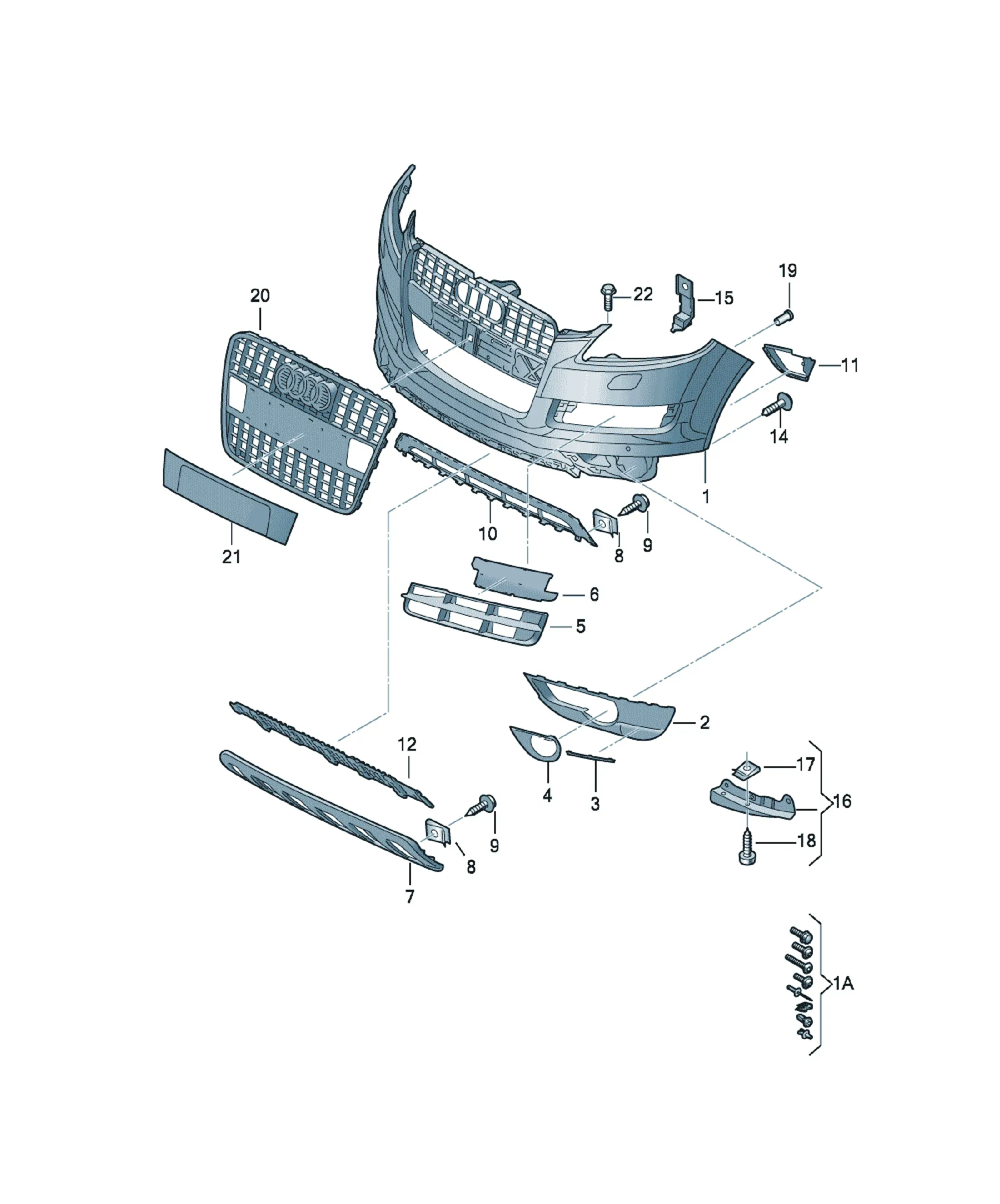

Assembly diagrams

5 diagrams

Parts

57 parts

4L0807105KGRU Offers

[Name]
primed
Items supplied
4L0807437K Bumper cover 1
4L0807437K GRU primed
4L0807233C Closing element 1
bush 2
4L0955275G Cover cap 1
4L0955275G GRU primed
4L0955276G Cover cap 1
4L0955276G GRU primed
4L0919267D Support 1
Ultrasound sensor
4L0919268D Support 1
Ultrasound sensor
4L0807105G Offers

[Name] [Model info] [QTY]
Bumper cover PR:7X0,7X1, 1
7X9+8X0
4L0807105GGRU Offers

[Name]
primed
Items supplied
4L0807437H Bumper cover 1
4L0807437H GRU primed
4L0807233C Closing element 1
bush 2
4L0955275G Cover cap 1
4L0955275G GRU primed
4L0955276G Cover cap 1
4L0955276G GRU primed
4L0807105H Offers

[Name] [Model info] [QTY]
Bumper cover PR:7X0,7X1, 1
7X9+8X1
4L0807105HGRU Offers

[Name]
primed
Items supplied
4L0807437H Bumper cover 1
4L0807437H GRU primed
4L0807233C Closing element 1
bush 2
4L0955275G Cover cap 1
4L0955275G GRU primed
4L0955276G Cover cap 1
4L0955276G GRU primed
4L0807105J Offers

[Name] [Model info] [QTY]
Bumper cover PR:7X2,7X4, 1
7X8+8X0
4L0807105JGRU Offers

[Name]
primed
Items supplied
4L0807437K Bumper cover 1
4L0807437K GRU primed
4L0807233C Closing element 1
bush 2
4L0955275G Cover cap 1
4L0955275G GRU primed
4L0955276G Cover cap 1
4L0955276G GRU primed
4L0919267D Support 1
Ultrasound sensor
4L0919268D Support 1
Ultrasound sensor
4L0807105K Offers

[Name] [Model info] [QTY]
Bumper cover PR:7X2,7X4, 1
7X8+8X1
4L0807683C Offers

[Name] [Note] [QTY]
Grille lower centre 1
4L0807683C01C Offers

[Name]
Satin black
4L0807151C Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:TC6 1
4L0807151D Offers

[Name] [Note] [Model info] [QTY]
Air guide left PR:T8T,TA0 1
4L0807151D01C Offers

[Name]
Satin black
4L0807152C Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:TC6 1
4L0807152C01C Offers

[Name]
Satin black
4L0807152D Offers

[Name] [Note] [Model info] [QTY]
Air guide right PR:T8T,TA0 1
4L0807152D01C Offers

[Name]
Satin black
4L0807152C Offers

[Name] [Note] [Model info] [QTY]
Air guide right diesel eng. 1
4L0807151C01C Offers

[Name]
Satin black
4L0807151C Offers

[Name] [Note] [Model info] [QTY]
Air guide left diesel eng. 1
4L0825469 Offers

[Name] [Note] [QTY]
Noise insulation front 1
N90775001 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 4,8X16 X
[Name] [Note]
Retainer for control unit
see illustration, item: 807-000,17
4L0807513D Offers

[Name] [Note] [QTY]
Spoiler left 1
4L0807514D Offers

[Name] [Note] [QTY]
Spoiler right 1
N10194101 Offers

[Name] [Note] [QTY]
Speed nut 4,8X18,6X16 8
N91057001 Offers

[Name] [Note] [QTY]
oval head panel screw 5X16 4
N0385012 Offers

[Name] [Note] [QTY]
Spreader rivet 6X12 4
4L0098623 Offers

[Name] [QTY]
1 set fixing parts for bumper 1
repair set
N 10595601 hexagon head bolt (combi) M10X35 8
N 10680203 Hexagon collared bolt with multi-point socket head (duo) M10X75 2
N 90610003 hex. nut, self-locking with washer M10 2
N 91007201 Socket head bolt with inner multipoint head (Kombi) M8X16 2
N 91034301 self-tapping screw 6X20 8
WHT003954 Hexagon socket flat head bolt 5X16 4
4D0807300B Spreader rivet 2
N 90683302 Semi round bolt (combi) with hexagon socket head M6X20 3
N 0385012 Spreader rivet 6X12 2
N 91057001 oval head panel screw 5X16 10
WHT005227 Oval hexagon socket head bolt M6X12 2
N 10196103 Oval socket head bolt with hex drive M6X18 3
N 0154374 Speed nut 4,8X16,5X11 14
N 90775001 Hexagon socket head panel bolt 4,8X16 6
N 10633702 Hexagon socket head panel bolt 4,8X19 8
8L0807180 Clip 2
WHT005414 panel screw 4,8X22 5
N 90651304 Hexagon socket head panel bolt 4,8X22 6
N 90785002 Hexagon socket flat head bolt M5X14,5 4
N 91034501 Hexagon bolt (combi) with inner hex round head (duo) M6X20 4
4L0807062C Offers

[Name] [Note] [Model info] [QTY]
Spoiler right PR:VJ1,VJ4 1
4L0807062CGRU Offers

[Name]
primed
4L0807061CGRU Offers

[Name]
primed
4L0807061C Offers

[Name] [Note] [Model info] [QTY]
Spoiler left PR:VJ1,VJ4 1
4L0807062DV7W Offers

[Name] [Note]
soul (black)
For exterior colour: P5,Q4,T9,4U,
5W,6L,6Y,8M,
9Q,0Q,99,2Y,
S9,Q0
4L0807062D1RR Offers

[Name] [Note]
Platinum grey
For exterior colour: A1,1R,2T,5F,
5Q,9C,Z2
4L0807062D Offers

[Name] [Note] [Model info] [QTY]
Spoiler right PR:2K1,2K2 1
4L0807061DV7W Offers

[Name] [Note]
soul (black)
For exterior colour: P5,Q4,T9,4U,
5W,6L,6Y,8M,
9Q,0Q,99,2Y,
S9,Q0
4L0807061D1RR Offers

[Name] [Note]
Platinum grey
For exterior colour: A1,1R,2T,5F,
5Q,9C,Z2
4L0807061D Offers

[Name] [Note] [Model info] [QTY]
Spoiler left PR:2K1,2K2 1
[Name] [Note]
Radiator grille
see illustration, item: 853-030,1
[Name] [Note]
Licence plate holder
see illustration: 807-035
N90683302 Offers

[Name] [Note] [QTY]
Semi round bolt (combi) with hexagon socket head M6X20 3
4L08072442ZZ Offers

[Name]
chrome
4L0807243 Offers

[Name] [Note] [Model info] [QTY]
Trim left PR:VJ1,VJ4 1
4L08072432ZZ Offers

[Name]
chrome
4L0807244 Offers

[Name] [Note] [Model info] [QTY]
Trim right PR:VJ1,VJ4 1
4L0807490A Offers

[Name] [Note] [QTY]
headlight trim right 1
4L0807489A Offers

[Name] [Note] [QTY]
headlight trim left 1
[Name] [Note]
Grille
see illustration: 807-035
[Name] [Note]
Cover
see illustration: 807-035
4L0807733BV7W Offers

[Name] [Note]
soul (black)
For exterior colour: P5,Q4,T9,4U,
5W,6L,6Y,8M,
9Q,0Q,99,2Y,
S9,Q0
4L0807733B1RR Offers

[Name] [Note]
Platinum grey
For exterior colour: A1,1R,2T,5F,
5Q,9C,Z2
4L0807733B Offers

[Name] [Model info] [QTY]
bumper guards PR:2K1,2K2 1
4L0807733B Offers

[Name] [Model info] [QTY]
bumper guards PR:VJ1,VJ4 1
4L0807733BV7W Offers

[Name]
soul (black)
N0154374 Offers

[Name] [Note] [QTY]
Speed nut 4,8X16,5X11 X
N90775001 Offers

[Name] [Note] [QTY]
Hexagon socket head panel bolt 4,8X16 X
