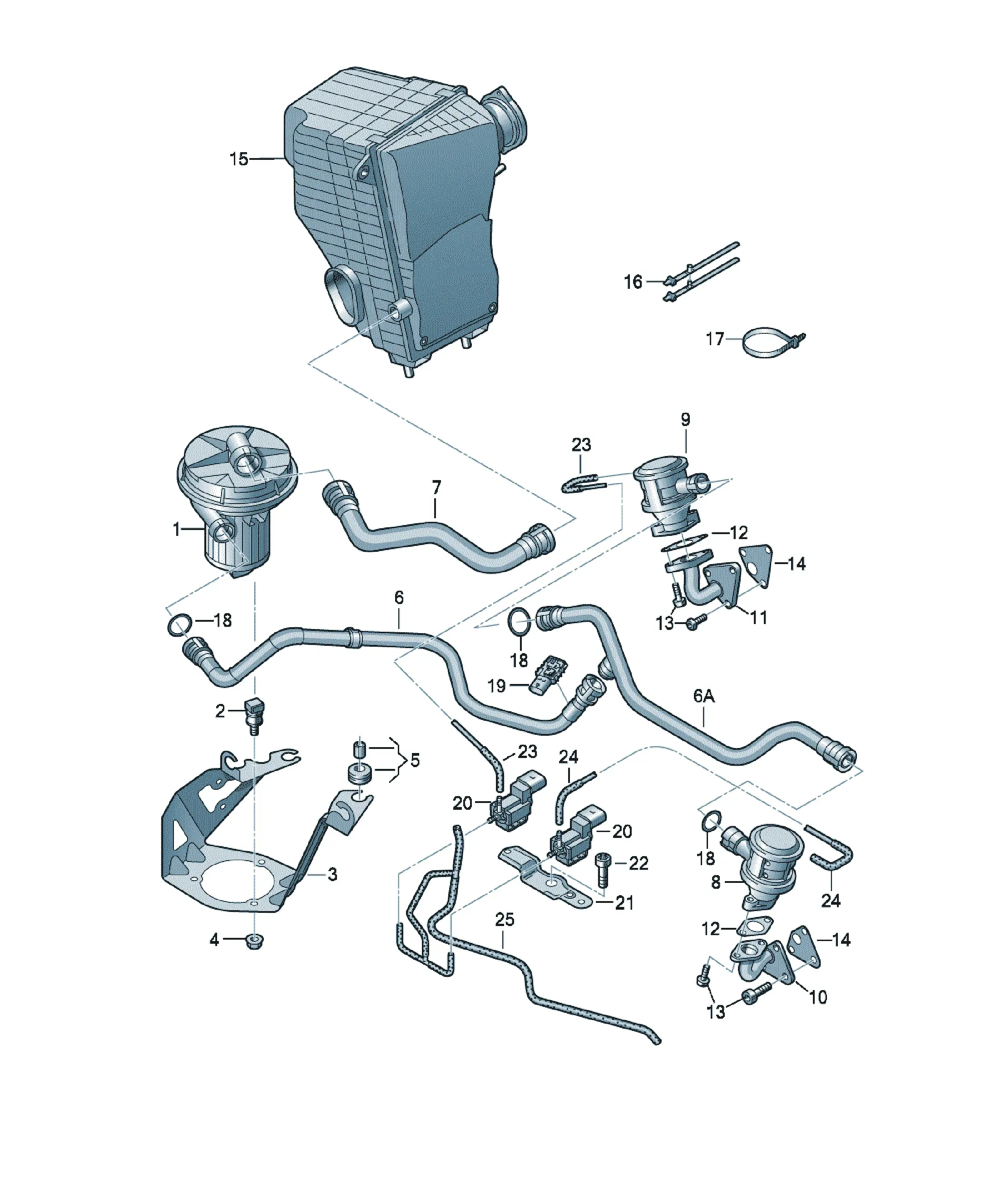

Secondary air injection system

[Name] [QTY]

Secondary air pump 1

mating connector

1J0973752 Flat contact housing with contact locking mechanism 2 pin 1

[Name] [Note] [QTY]

Adapter left 1

[Name] [Note] [QTY]

Adapter right 1

[Name] [QTY]

Seal 2

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 8

[Name] [QTY]

Seal 2

[Name] [Note]

see illustration: 133-060

[Name] [QTY]

double cable tie X

[Name] [Note] [QTY]

Cable ties with bracket 4,5X200 X

[Name]

No replacement part

[Name] [QTY]

Pressure sensor 1

Replacements: 06K906052

mating connector

4H0973703 Flat contact housing with contact locking mechanism 3 pin 1

black

[Name] [QTY]

Stop buffer 3

[Name] [QTY]

Solenoid valve 2

mating connector

1J0973722 Flat contact housing with contact locking mechanism 2 pin 1

black

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon socket head bolt M12X25 1

[Name] [QTY]

pressure controlline 1

[Name] [QTY]

pressure controlline 1

[Name] [Note]

see illustration: 133-060

[Name] [QTY]

Retainer for pump 1

[Name] [Note] [QTY]

Hexagon collar nut M6 3

[Name] [QTY]

1 set attachment parts 4

repair set

7L0129734 Distance piece 1

7L0129669 Grommet 1

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Connecting hose 1

[Name] [QTY]

Intake manifold 1

[Name] [Note] [QTY]

kombi valve LINKS 1

[Name] [QTY]

kombi valve 1
