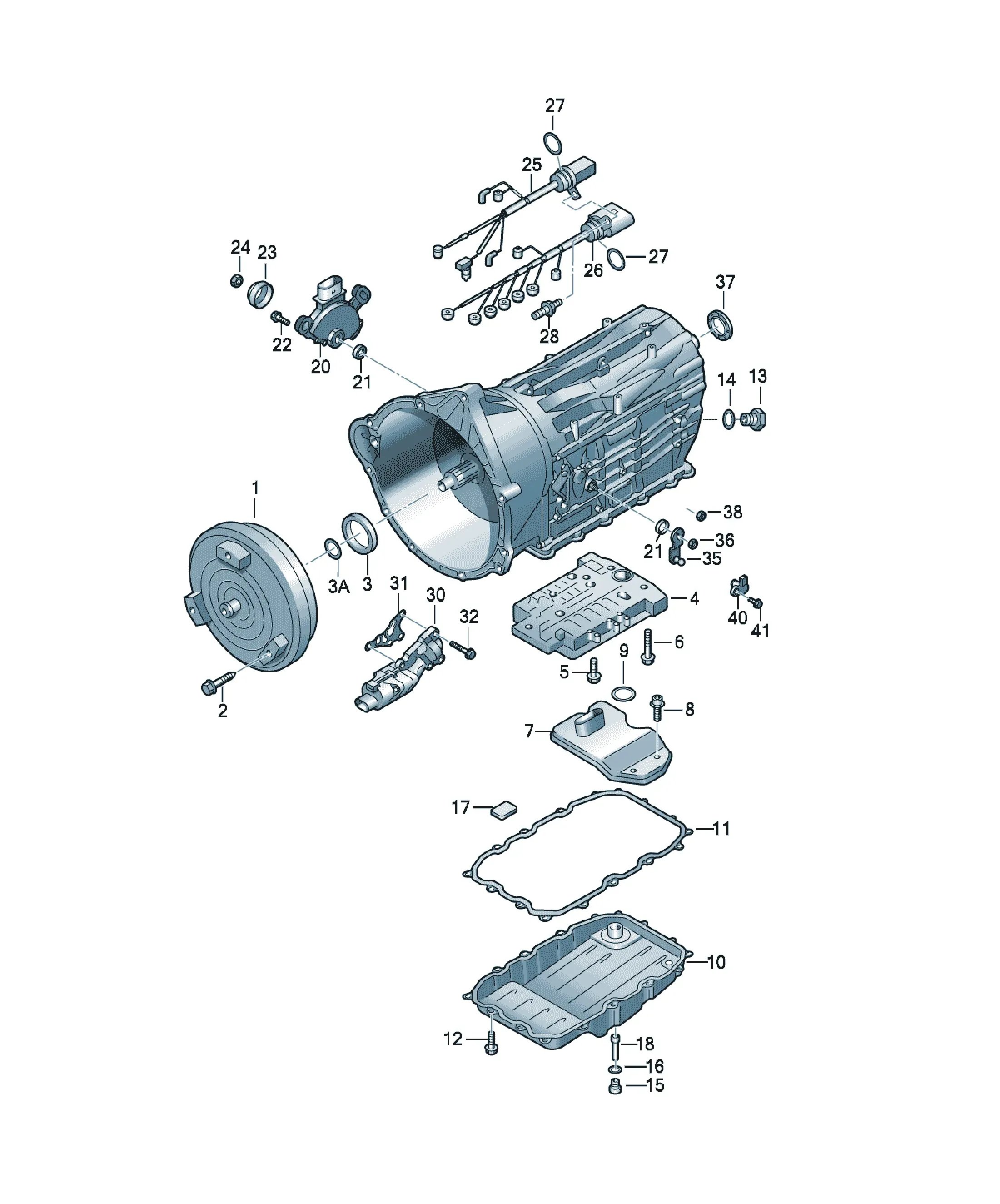

Automatic transmission

[Name] [Model info] [QTY]

Converter LSG,NAE 1

[Name] [Model info] [QTY]

Converter MHN 1

[Name] [Model info] [QTY]

Converter MHP,MHC,NAB, 1

NAC

[Name] [QTY]

Transmission oil sump 1

[Name] [QTY]

gasket for oil sump 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X25 11

[Name] [Note] [QTY]

sealing plug M24X1,5 1

[Name] [QTY]

seal ring 1

[Name] [Note] [QTY]

drain plug M10X9 1

[Name] [Note] [QTY]

seal ring 12X18X1,55 1

[Name] [QTY]

Magnet 4

[Name] [Note] [Model info] [QTY]

oil pipe 35,6MM LSG,MHC,MHP, 1

LSK,LZQ,MYW,

MYX,MHN,LSH,

NAB,NAE,NAC

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M10X1X17 6

[Name] [QTY]

multi-function switch for automatic gearbox 1

[Name] [Note] [QTY]

radial shaft seal 11X22X7 2

[Name] [Note] [QTY]

Hexagon bolt M6X20 1

[Name] [QTY]

Protective cap 1

[Name] [Note] [QTY]

domed cap nut M8 1

[Name] [Note] [QTY]

wiring harness for automatic gearbox 8 pin 1

[Name] [Note] [QTY]

wiring harness for automatic gearbox 14 pin 1

[Name] [Note] [QTY]

seal ring 21,8X2,4 2

[Name] [Note] [QTY]

double stud with hexagon drive M6X18 1

[Name] [Note] [QTY]

Shaft oil seal D=42X66X8 1

[Name] [Model info] [QTY]

oil pump MHC,MHN,NAB, 1

Not for this model NAE

[Name] [Model info] [QTY]

oil pump LSG,MHP,NAC 1

mating connector

7P0971636 Flat contact housing 3 pin 1

7P0971636A Flat contact housing 5 pin 1

1J0973723 flat contact housing with gasket 3 pin 1

black

[Name] [QTY]

Seal 1

[Name] [Note] [Model info] [QTY]

Hex collared bolt M8X28 MHP,LZQ,MYX, 3

NAC

[Name] [Note] [Model info] [QTY]

Hex collared bolt M8X45 MHP,LZQ,MYX, 1

NAC

[Name] [Note] [Model info] [QTY]

Hex collared bolt M8X28 LUA 4

[Name] [QTY]

selector lever 1

[Name] [Note] [QTY]

Hexagon nut M8 1

[Name] [Note] [QTY]

radial shaft seal 41X72X11 1

[Name] [Model info] [QTY]

seal ring LSG,NAE,MHN 1

[Name] [Model info] [QTY]

valve body LSG,NAE 1

[Name] [Model info] [QTY]

valve body MHC,MHN,MHP, 1

NAB,NAC

[Name] [Note] [QTY]

Gearbox speed sender Output side 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X12 2

[Name] [Note] [QTY]

Hex collared bolt M6X1X28 11

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X40 7

[Name] [QTY]

oil strainer 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 4

[Name] [QTY]

Seal 1
