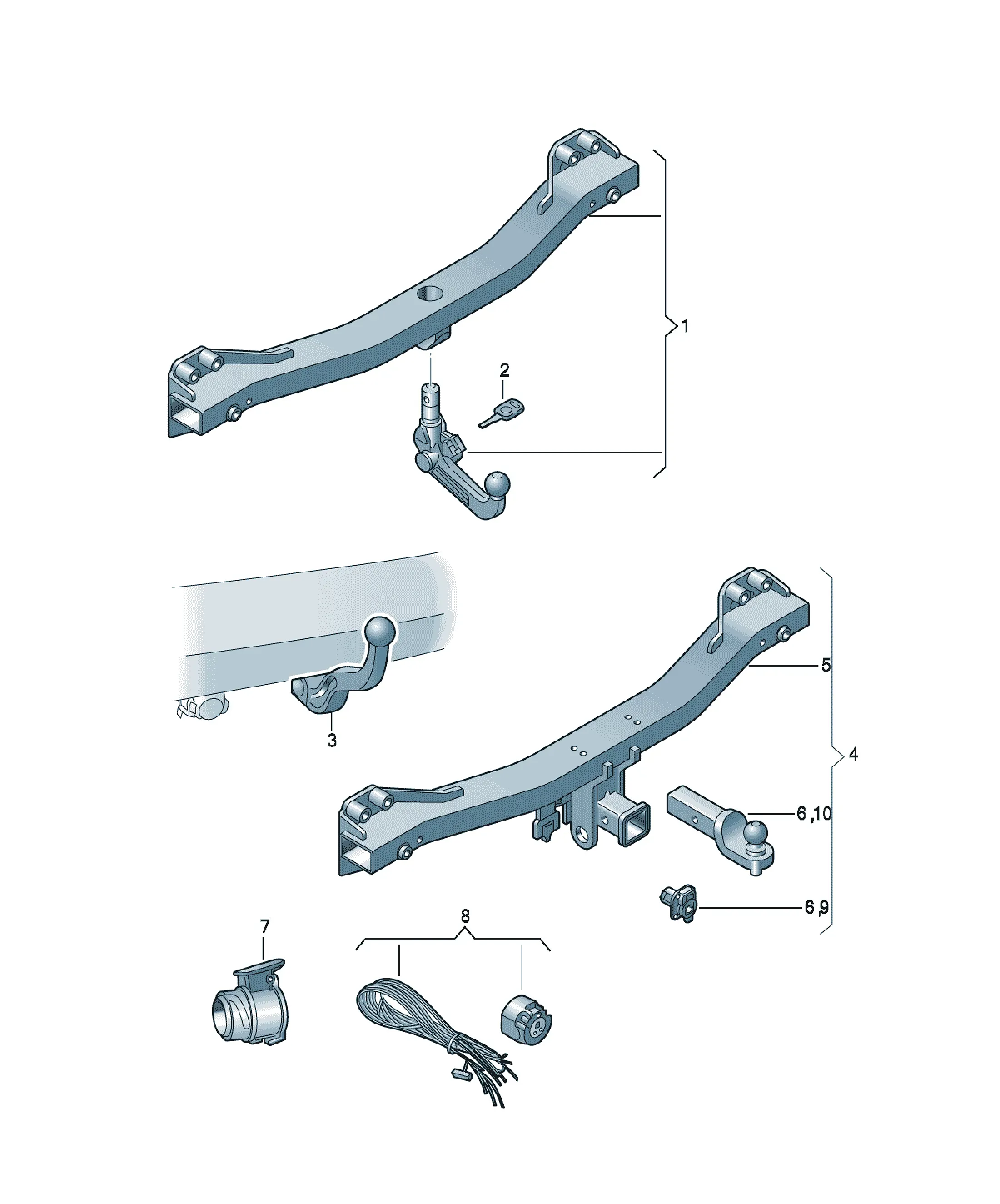

Trailer tow hitch

[Name] [QTY]

fuse holder 1

[Name] [Note] [Model info] [QTY]

Towbar, removable steel 1

ball head 7P5 803 882

see illustration, item: 804-050,4

not for: "USA"

Items supplied

4L0803921D Cross member 1

7L0803882 Trailer tow hitch (spher.head) 1

[Name] [Note] [Model info] [QTY]

ball head steel "USA" 1

use only in conjunction with: 4L0 092 101 C

4L0 092 105 D

4L0 092 105 B

[Name] [Note]

key 2WXXX

Can be obtained from Westfalia Tel.: +49 (0) 5242 907 437 E-mail: [email protected]

[Name] [Note] [Model info] [QTY]

Tow hitch, swivel-type steel 1

electric

and not for: PR:2K7,2K8+

Installation kit - electrical parts for trailer operation 13 pin 3FU+5KL,5KY+

S8Z

also to be used for:

LED brake, turn signal, tail and reversing light cluster

not for: "USA"

use if required: 4L0 959 511 A 1

or

4L0 959 511 1

Accompanying details: 4L0959511A; 4L0959511

Items supplied

4L0803921E Trailer tow hitch (spher.head) 1

4L0907383C Control unit for trailer detection 1

[Name] [Note] [Model info] [QTY]

Towbar, removable "USA" 1

and

Installation kit - electrical parts for trailer operation 7 pin

also to be used for:

LED brake, turn signal, tail and reversing light cluster

use if required: 4L0 959 511 A 1

or

4L0 959 511 1

Accompanying details: 4L0959511A; 4L0959511

Items supplied

4E0907383F Control unit for trailer detection 1

4L0055305U socket for trailer towing 7 pin 1

4L0092770U ball head steel 1

4L0803921F Cross member 1

[Name] [Model info] [QTY]

Towbar, removable "USA" 1

also to be used for:

LED brake, turn signal, tail and reversing light cluster

Items supplied

4E0907383F Control unit for trailer detection 1

4L0803921F Cross member 1

[Name] [Note] [Model info] [QTY]

Adapter 13 to 7-pin 1

socket for trailer towing not for: "USA"

[Name] [Note] [Model info] [QTY]

Installation kit - electrical parts for trailer operation 13 pin 1

not for: "USA"

also to be used for:

LED brake, turn signal, tail and reversing light cluster

Items supplied

4E0907383F Control unit for trailer detection 1

7L0945505 housing for trailer towing socket 1

8A0971978 rd. connector sleeve housing 1

8A0972980A Annular contact w/ solder pin 1

[Name] [Note] [Model info] [QTY]

socket for trailer towing 7 pin "USA" 1
