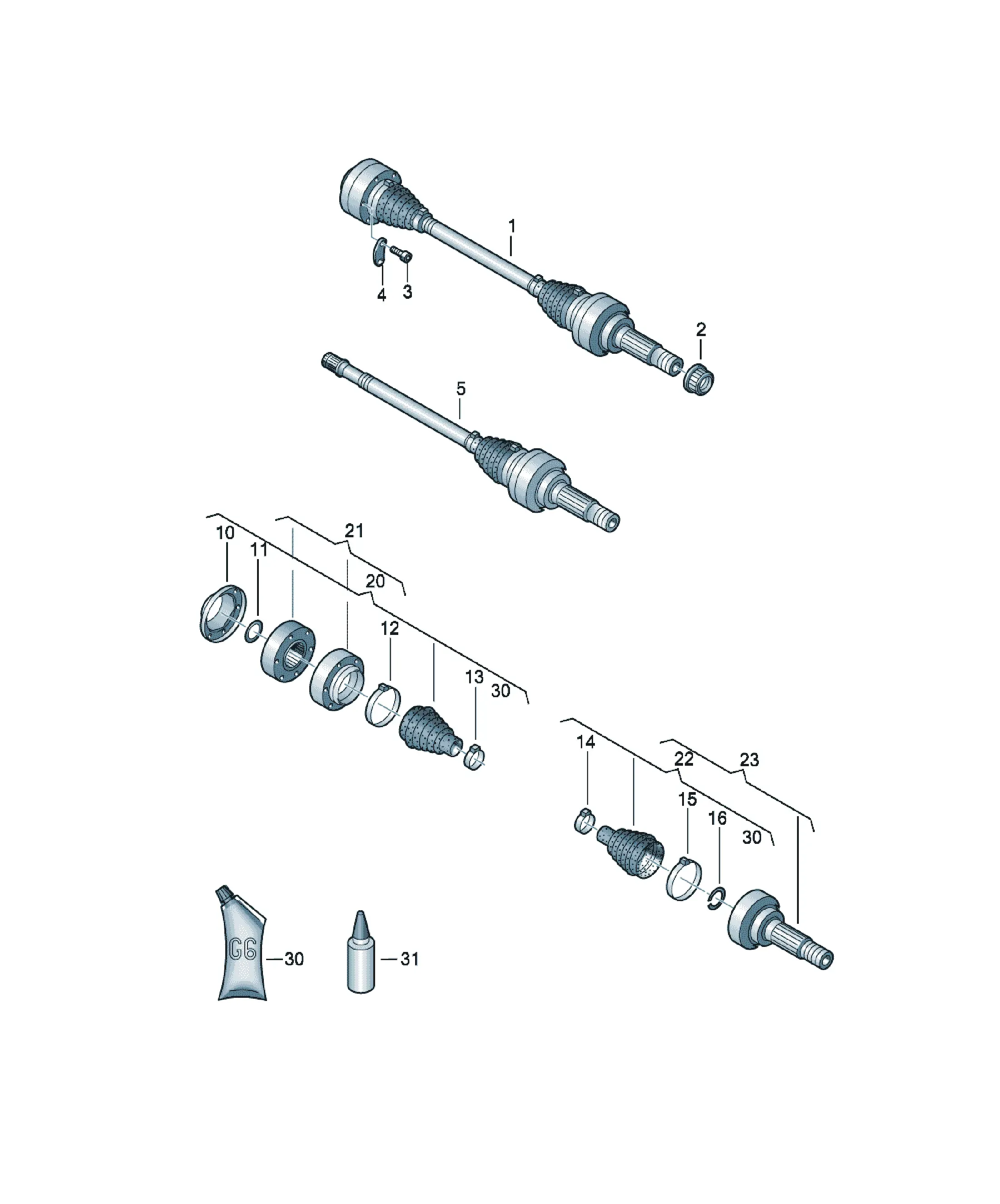

Drive shaft

[Name] [Note] [Model info] [QTY]

Drive shaft left a. right PR:TE1,T41, 2

T8T,TA0

Replacements: 7L8501201

[Name] [Note] [Model info] [QTY]

Drive shaft left a. right PR:TE5,TD5 2

[Name] [QTY]

drive shaft with constant velocity joints 2

Replacements: 7L6407271H

[Name] [QTY]

drive shaft with constant velocity joints 2

Exchange program parts: 7L6407271HX

[Name] [Note] [Model info] [QTY]

Drive shaft left a. right PR:TE5,TD5 2

Replacements: 7L8501201A

[Name] [Note] [Model info] [QTY]

Drive shaft left a. right PR:TE1,T41, 2

T8T,TA0

[Name] [Note] [QTY]

Not for this model

for this use: POS.20

[Name] [Note] [QTY]

Securing ring 30X1,5 2

[Name] [Note] [QTY]

Securing ring 28X1,5 2

[Name] [Note] [Model info] [QTY]

clamp 75X10X1 PR:TE5,TD5 2

[Name] [Note] [QTY]

clamp 85X10X1 2

[Name] [Note] [Model info] [QTY]

clamp 69X10X1 PR:TA0,TE1, 2

T41,T8T

[Name] [Note] [Model info] [QTY]

clamp 34,7X10X0,8 PR:TA0,TE1, 2

T41,T8T

[Name] [Note] [Model info] [QTY]

clamp 37,5X10X0,8 PR:TE5,TD5 2

[Name] [Note] [QTY]

clamp 37,5X10X0,8 2

[Name] [Note] [Model info] [QTY]

clamp 37,5X10X0,8 PR:TE5,TD5 2

[Name] [Note] [QTY]

clamp 37,5X10X0,8 2

[Name] [Note] [Model info] [QTY]

clamp 34,7X10X0,8 PR:TA0,TE1, 2

T41,T8T

[Name] [Note] [QTY]

clamp 110,5X10X1 2

[Name] [Note] [Model info] [QTY]

clamp 69X10X1 PR:TA0,TE1, 2

T41,T8T

[Name] [Note] [Model info] [QTY]

clamp 75X10X1 PR:TE5,TD5 2

[Name] [Note] [QTY]

Securing ring 33X2 2

[Name] [Note] [QTY]

12 point socket shouldered nut self-locking M24X1,5 2

Replacements: WHT006779

[Name] [Note] [QTY]

12 point socket shouldered nut self-locking M24X1,5 2

[Name] [Note] [Model info] [QTY]

joint protective boot with assembly items and grease inner TE5,TD5 2

Accompanying details: 7L0407396

repair set

7L0501153A joint boot 1

N 90947301 clamp 75X10X1 2

N 90934201 clamp 37,5X10X0,8 2

N 0123751 Securing ring 30X1,5 1

7L0501657B End cap 1

7L0501269B Assembly protective cap for constant velocity joint 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [QTY]

joint protective boot with assembly items and grease inner 2

repair set

7L6407283 joint boot 1

7L6407275A End cap inner 1

N 90470601 clamp 83,5X10X1 1

N 90934201 clamp 37,5X10X0,8 1

N 0123751 Securing ring 30X1,5 1

G 052738A2 Grease for universal joint 120G 2

[Name] [Note] [Model info] [QTY]

joint protective boot with assembly items and grease inner PR:TA0,TE1, 2

T41,T8T

Accompanying details: 7L0407396

repair set

7L0501153 joint boot 1

N 90990601 clamp 69X10X1 1

N 10609101 clamp 34,7X10X0,8 2

N 0123741 Securing ring 28X1,5 1

7L8501269 Assembly protective cap for constant velocity joint inner 1

7L8501657 End cap 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [Model info] [QTY]

constant velocity joint with boot, attachment parts and grease inner PR:TA0,TE1, 2

T41,T8T

repair set

7L0501331 constant velocity joint 1

7L0501153 joint boot 1

N 90990601 clamp 69X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 0123741 Securing ring 28X1,5 1

7L8501269 Assembly protective cap for constant velocity joint inner 1

7L8501657 End cap 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

Replacements: 7L6498103A

repair set

7L6407331A constant velocity joint 1

7L6407283 joint boot 1

7L6407275A End cap inner 1

N 0123751 Securing ring 30X1,5 1

N 90934201 clamp 37,5X10X0,8 1

N 90470601 clamp 83,5X10X1 1

G 052738A2 Grease for universal joint 120G 2

[Name] [Note] [Model info] [QTY]

constant velocity joint with boot, attachment parts and grease inner PR:TE5,TD5 2

repair set

7L0501331A constant velocity joint 1

7L0501153A joint boot 1

N 90947301 clamp 75X10X1 1

N 90934201 clamp 37,5X10X0,8 1

N 0123751 Securing ring 30X1,5 1

7L0501657B End cap 1

7L0501269B Assembly protective cap for constant velocity joint 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [Model info] [QTY]

constant velocity joint with boot, attachment parts and grease inner PR:TA0,TE1, 2

T41,T8T

Replacements: 7L0598103

repair set

7L0501331 constant velocity joint 1

7L0501153 joint boot 1

N 90990601 clamp 69X10X1 1

N 10609101 clamp 34,7X10X0,8 1

N 0123741 Securing ring 28X1,5 1

7L8501269 Assembly protective cap for constant velocity joint inner 1

7L8501657 End cap 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [QTY]

constant velocity joint with boot, attachment parts and grease inner 2

repair set

7L6407331A constant velocity joint 1

7L6407283 joint boot 1

7L6407275A End cap inner 1

N 0123751 Securing ring 30X1,5 1

N 90934201 clamp 37,5X10X0,8 1

N 90470601 clamp 83,5X10X1 1

G 052738A2 Grease for universal joint 120G 2

[Name] [Note] [Model info] [QTY]

constant velocity joint with boot, attachment parts and grease inner PR:TE5,TD5 2

Replacements: 7L0598103A

repair set

7L0501331A constant velocity joint 1

7L0501153A joint boot 1

N 90947301 clamp 75X10X1 1

N 90934201 clamp 37,5X10X0,8 1

N 0123751 Securing ring 30X1,5 1

7L0501657B End cap 1

7L0501269B Assembly protective cap for constant velocity joint 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [Model info] [QTY]

joint protective boot with assembly items and grease outer PR:TA0,TE1, 2

T41,T8T

also use: 7L0 407 396 X

Accompanying details: 7L0407396

repair set

7L0501153 joint boot 1

N 90990601 clamp 69X10X1 1

N 10609101 clamp 34,7X10X0,8 2

N 0123741 Securing ring 28X1,5 1

7L8501269 Assembly protective cap for constant velocity joint inner 1

7L8501657 End cap 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [Model info] [QTY]

joint protective boot with assembly items and grease outer PR:TE5,TD5 2

also use: 7L0 407 396 X

Accompanying details: 7L0407396

repair set

7L0501153A joint boot 1

N 90947301 clamp 75X10X1 2

N 90934201 clamp 37,5X10X0,8 2

N 0123751 Securing ring 30X1,5 1

7L0501657B End cap 1

7L0501269B Assembly protective cap for constant velocity joint 1

G 052738A2 Grease for universal joint 120G 1

[Name] [Note] [QTY]

joint protective boot with assembly items and grease outer 2

repair set

4E0407285A joint boot 1

N 90990901 Securing ring 33X2 1

N 90990701 clamp 110,5X10X1 1

N 91002301 clamp 38X10X0,8 1

G 052738A2 Grease for universal joint 120G 2

[Name] [QTY]

Outer joint with assembly parts 2

Replacements: 7L6498099C

repair set

7L6407321E Outer joint 1

4E0407285A joint boot 1

N 90990901 Securing ring 33X2 1

N 90990701 clamp 110,5X10X1 1

N 90934201 clamp 37,5X10X0,8 1

WHT006779 12 point socket shouldered nut self-locking M24X1,5 1

G 052738A2 Grease for universal joint 120G 2

[Name] [QTY]

Outer joint with assembly parts 2

repair set

7L6407321E Outer joint 1

4E0407285A joint boot 1

N 90990901 Securing ring 33X2 1

N 90990701 clamp 110,5X10X1 1

N 90934201 clamp 37,5X10X0,8 1

WHT006779 12 point socket shouldered nut self-locking M24X1,5 1

G 052738A2 Grease for universal joint 120G 2

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M10X52 12

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M12X1,5X55 12

[Name] [Note] [QTY]

Grease for universal joint 120G X

[Name] [Note] [QTY]

Assembly paste 120G X

[Name] [Note] [QTY]

Locking fluid high-strength X

10ML

[Name] [Model info] [QTY]

Spacer PR:TE5 6

[Name] [QTY]

Spacer 6

[Name] [QTY]

Spacer 6

[Name]

Not for this model

[Name] [Model info] [QTY]

drive shaft with outer constant velocity joint PR:TE5,TD5 2

[Name] [Model info] [QTY]

drive shaft with outer constant velocity joint PR:TE1,T41, 2

T8T,TA0
