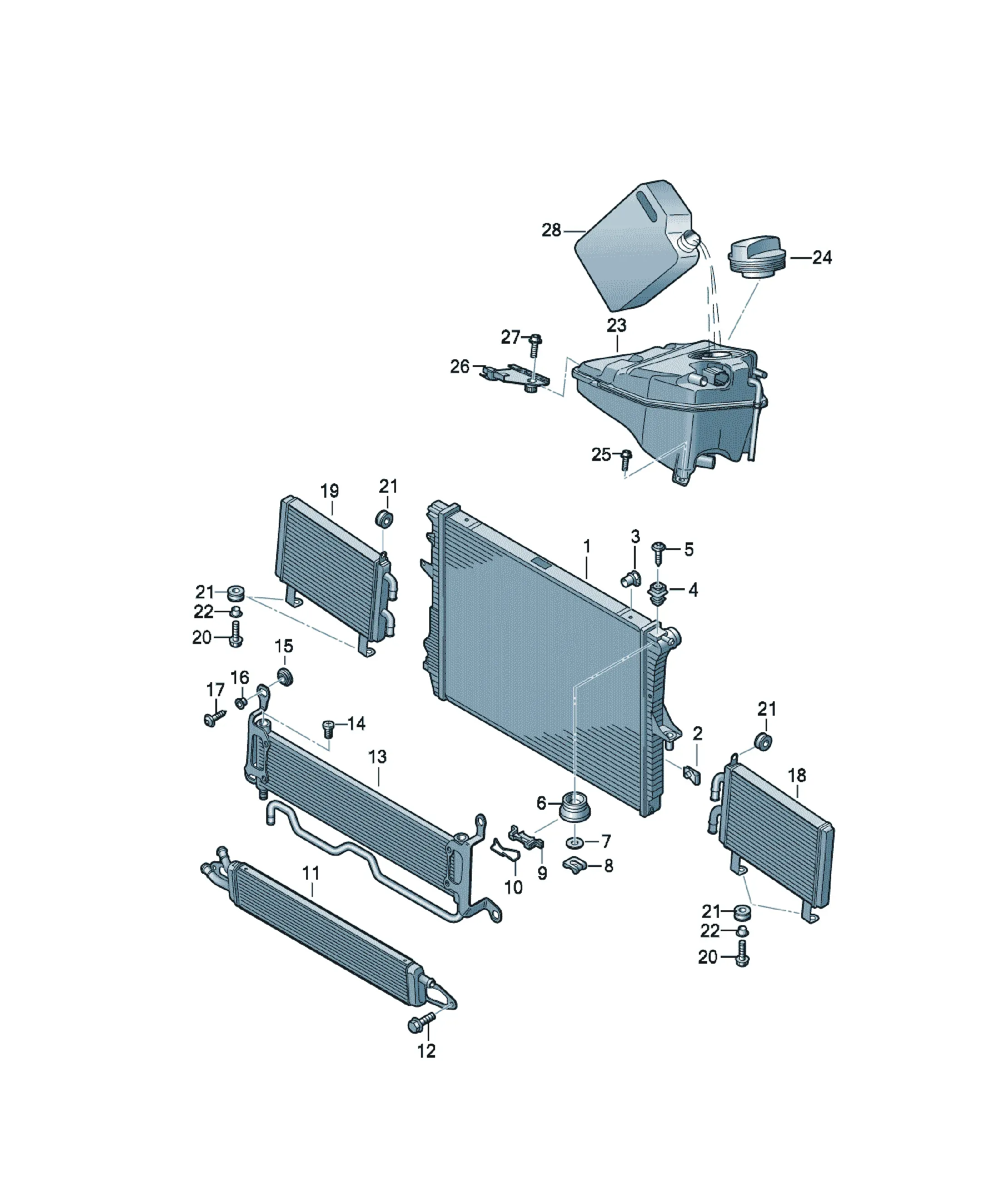

Cooling system

[Name] [QTY]

Bungs 1

[Name] [Note] [QTY]

Cooler for coolant center 1

[Name] [Note] [QTY]

Retaining clip lower 2

[Name] [Note] [QTY]

Additional cooler for coolant lower front 1

[Name] [Note] [QTY]

Hex collared bolt M6X16 2

[Name] [Note] [QTY]

Additional cooler for coolant upper front 1

[Name] [Note] [QTY]

drain plug M10X17,5 1

[Name] [Note] [QTY]

Grommet upper front 4

[Name] [Note] [QTY]

Distance piece 7,5MM 4

Replacements: 1K0129734B

[Name] [Note] [QTY]

panel screw 6X30 4

[Name] [Note] [QTY]

Additional cooler for coolant left front 1

[Name] [Note] [QTY]

Additional cooler for coolant right front 1

[Name] [Note] [QTY]

Speed nut M6X23,4X16 1

[Name] [Note] [QTY]

Hex collared bolt M6X25 4

[Name] [QTY]

Rubber bush 6

[Name] [QTY]

Mounting 6

[Name] [QTY]

Reservoir 1

Replacements: 7L0121407F

Items supplied

Reservoir 1

contact pin 2

O-ring 2

Hose 1

plate 1

Pipe 2

Silicate cartridge for expansion tank 1

Spring 1

Sticker 1

mating connector

1J0973202 Flat contact housing 2 pin 1

[Name] [QTY]

End cap 1

[Name] [Note] [QTY]

Hexagon socket oval head bolt (combi) M6X20 1

[Name] [QTY]

Bracket 1

[Name] [Note] [QTY]

Hexagon socket head bolt (combi) M6X20 2

[Name] [Note] [QTY]

Coolant concentrate 210 l X

Replacements: G 12E100M9

[Name] [Note] [QTY]

Coolant concentrate 1.5 Ltr. X

Replacements: G 12E050M2

[Name] [Note] [QTY]

Ready-mix coolant frost protection down to least -35 degrees C 1.5 Ltr. X

Replacements: G 12E050M2

[Name] [Note] [QTY]

Ready-mix coolant Frost protection up to -25 °C 1.5 Ltr. X

Replacements: G 12E050M2

[Name] [Note] [QTY]

Coolant concentrate 60ltr. X

Replacements: G 12E100M8

[Name] [QTY]

Clip 4

[Name] [Note] [QTY]

Grommet upper 2

[Name] [Note] [QTY]

panel screw 6X30 2

upper

[Name] [Note] [QTY]

Profile rubber lower 2

[Name] [Note] [QTY]

Washer 16,2X34,2X3 2

[Name] [Note] [QTY]

Retaining clip lower 2

[Name] [Note] [QTY]

bracket for bonded rubber mounting lower 2
