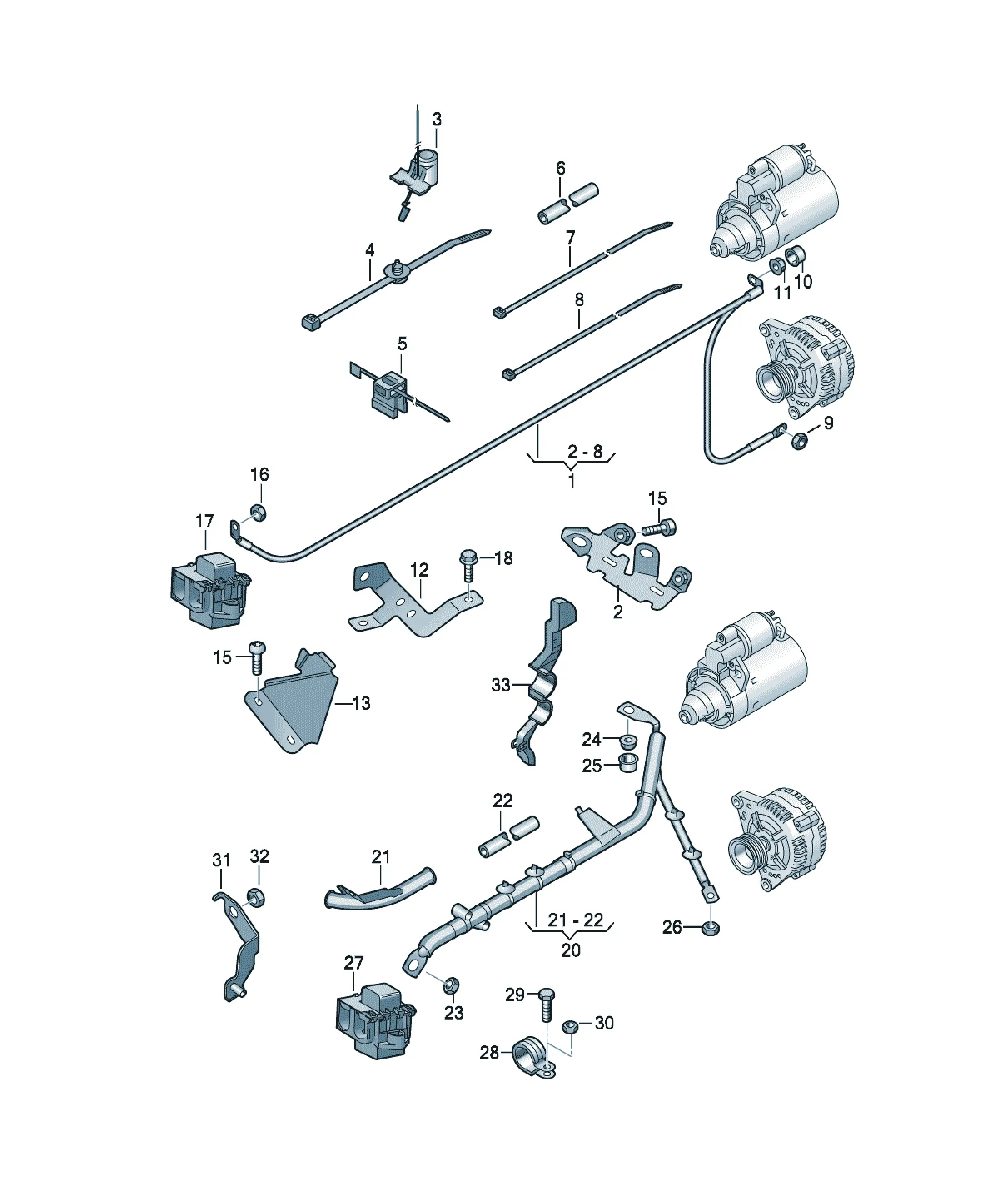

Starter and alternator wiring harness

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200MM X

for bridge strength: 3,0-6,0MM

toothed quadrant outer

[Name] [QTY]

Retainer for fuel filter 1

[Name] [Model info] [QTY]

wiring harness for starter and alternator BAR 1

[Name] [Model info] [QTY]

wiring harness for starter and alternator CCFA+PR:G0R 1

[Name] [Model info] [QTY]

wiring harness for starter and alternator CCFC+PR:G1G 1

[Name] [Note] [QTY]

Cover cap 13X14 B+ X

for starter 1

for alternator 1

[Name] [Note] [Model info] [QTY]

Hexagon nut M8 CCFA,CCFC 1

[Name] [Note] [Model info] [QTY]

hexagon nut, self-locking M8 BAR 1

[Name] [Model info] [QTY]

Bracket BAR 1

[Name] [Model info] [QTY]

Guard plate CCFA,CCFC 1

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X12 X

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [Note] [QTY]

Slave start socket 1

see illustration: 972-000

[Name] [Note] [QTY]

Hex collared bolt M8X20 1

[Name] [Model info] [QTY]

protective pipe CCFA,CCFC 1

holder for wiring harness

** not exchangeable **

[Name] [Model info] [QTY]

Bracket BAR 1

[Name] [Model info] [QTY]

wiring harness for starter and alternator CJWA,CJWB, 1

CNAA,CJTB,

D - 28.05.2012>> CJTC

[Name] [Model info] [QTY]

Wiring set for battery + CLZB,CNRB 1

(Alternator > Starter)

[Name] [Note] [Model info] [QTY]

Wiring set for battery + CCMA,CATA 1

(Alternator > Starter)

also use: >>D10.01.2011

4L0 201 710 B 1

D - MJ 2011>>

Accompanying details: 4L0201710B

[Name] [Model info] [QTY]

Wiring set for battery + CASA,CASB 1

(Alternator > Starter)

[Name] [Model info] [QTY]

wiring harness for starter and alternator CJTC,CJWC, 1

CNAA,CJTB,

D >> - 28.05.2012 CJWB,CJWE

[Name] [Note] [Model info] [QTY]

Wiring set for battery + CJGA,CJGC, 1

(Alternator > Starter) CJMA,CJGD,

CRCA

also use: >>D10.01.2011

4L0 201 710 B 1

Accompanying details: 4L0201710B

[Name] [QTY]

protective pipe X

** not exchangeable **

[Name] [Note] [QTY]

Heat resistant hose (glass fibre weave) 20X1500MM 1

[Name] [Note] [QTY]

Hexagon collar nut M8 1

[Name] [Note] [QTY]

Hexagon nut M8 1

[Name] [Note] [QTY]

Cover cap 13X14 1

[Name] [Note] [QTY]

Protective cap 10X12 1

[Name] [Note] [QTY]

Hexagon nut M8 1

[Name] [Note] [QTY]

Slave start socket 1

see illustration: 972-000

[Name] [Note] [QTY]

Clamp 14X15 2

[Name] [Note] [QTY]

Clamp 16X15 3

[Name] [Note] [QTY]

Socket head bolt with inner multipoint head M6X14 2

[Name] [Note] [QTY]

round hd. screw M6X10 1

[Name] [Note] [QTY]

Cable tie with holder for plastic pin: 5X200MM X

5MM

[Name] [Note] [QTY]

Hexagon nut M6 1

[Name] [Model info] [QTY]

Cable holder CJGA,CJGC, 1

D >> - 10.06.2013 CJMA,CJGD,

CRCA+PR:7L1,

7L7

[Name] [Model info] [QTY]

Cable holder CJGA,CJGC, 1

CJMA,CJGD,

CRCA+PR:7L8

[Name] [Model info] [QTY]

Cable holder CLZB,CNRB 1

[Name] [Model info] [QTY]

Cable holder CCMA,CATA+ 1

PR:G1G

[Name] [Model info] [QTY]

Cable holder CJGA,CJGC, 1

D - 10.06.2013>> CJMA,CJGD,

CRCA+PR:7L1,

7L7

[Name] [Model info] [QTY]

holder for wiring harness CJTC,CJWC, 1

CNAA,CJTB,

CJWB,CJWE,

CTWA,CTWB

[Name] [Note] [QTY]

Hexagon nut M10 1

[Name] [Model info] [QTY]

Cable guide CJWA,CJWB, 1

D - 28.05.2012>> CNAA,CJTB,

CJTC

[Name] [Model info] [QTY]

Cable guide CJTC,CJWC, 1

D >> - 28.05.2012 CNAA,CJTB,

CJWB,CJWE

[Name] [Note] [QTY]

Cable ties 4,6X200 X

For hole/material thickness: 6,5/2,5-3,5MM

toothed quadrant outer

[Name] [Note] [QTY]

Retainer, swivel 16/10MM 1

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200MM X

With side cable guide

for bridge strength: 1-3MM

toothed quadrant outer

(Clamp base, rotating)

[Name] [Note] [QTY]

Heat resistant hose (glass fibre weave) 13X1500MM 1

[Name] [Note] [QTY]

Cable ties 3,6X246 X

Replacements: N 10647801

[Name] [Note] [QTY]

Cable ties 4,6X193 X

toothed quadrant outer

[Name] [Note] [Model info] [QTY]

Collar nut M8 BAR 1

[Name] [Note] [Model info] [QTY]

Hexagon nut M8 CCFA,CCFC 1
