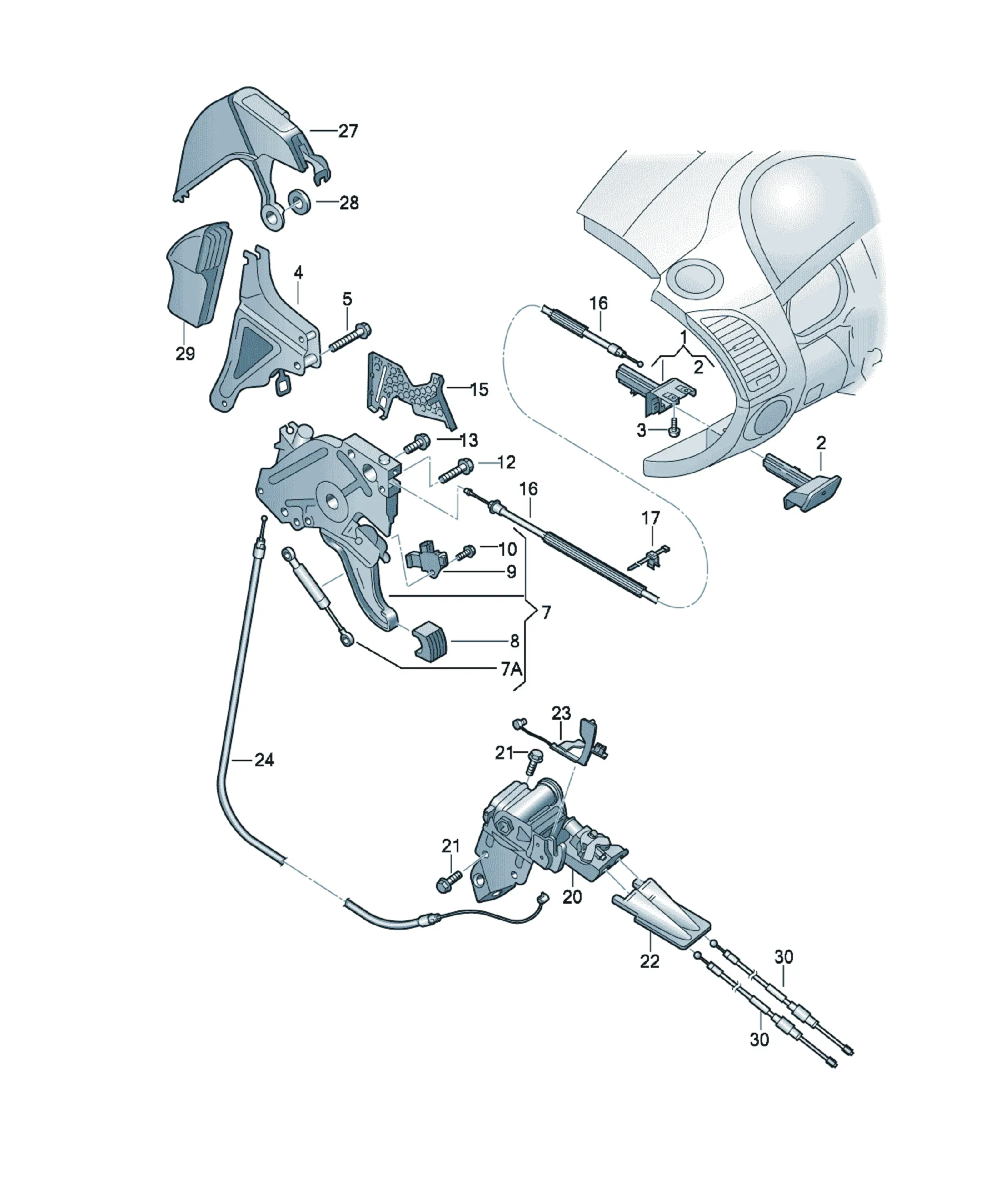

Parking brake

[Name] [Note] [QTY]

Lock cylinder grease spray 50ML 1

Service fluid

[Name] [Note]

soul (black) -CA,FP,FQ,FR,

FS,FT,QE,QF,

QL,QV,QX,DO

[Name] [Note] [QTY]

Actuator left lhd 1

use if required: G 052 778 A2

Accompanying details: G 052778A2

[Name] [Note]

agate grey -CF,CG

[Name] [Note]

Kamut beige -FU,FV

[Name] [Note] [QTY]

Actuator right rhd 1

use if required: G 052 778 A2

Accompanying details: G 052778A2

[Name] [Note]

soul (black) -CA,FP,FQ,FR,

FS,FT,QE,QF,

QL,QV,QX,DO

[Name] [Note]

Kamut beige -FU,FV

[Name] [Note]

agate grey -CF,CG

[Name] [Note]

hexagon head bolt (combi) M5X8

Included in position: 7

[Name] [Note] [QTY]

Hexagon bolt M8X40 1

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

Replacements: N 91185401

[Name] [Note] [QTY]

Cover cap lhd 1

dashboard

[Name] [Note] [QTY]

Bowden cable left lhd 1

[Name] [Note] [QTY]

Bowden cable right rhd 1

[Name] [Note] [QTY]

cable tie with terminal socket 4,6X200 1

rhd

[Name] [Note] [QTY]

Deflection angle rhd 1

[Name] [Note] [QTY]

Deflection angle lhd 1

[Name] [Note] [QTY]

Hexagon bolt M8X16 1

Replacements: N 91185401

[Name] [QTY]

pull cable guide 1

[Name] [QTY]

Clip 1

[Name] [Note] [QTY]

brake cable lhd 1

[Name] [Note] [QTY]

brake cable rhd 1

[Name] [Note] [QTY]

Cover lhd 1

foot operated parking brake

[Name] [Note] [QTY]

Shim lhd 1

[Name] [Note] [QTY]

Cover rhd 1

foot operated parking brake

[Name] [Note] [QTY]

Hexagon socket flat head bolt M4X25 3

[Name] [Note]

brake cable

see illustration, item: 609-030,11

[Name] [Note] [QTY]

Bracket rhd 1

[Name] [Note] [QTY]

Hex collared bolt M8X55 1

rhd

[Name] [QTY]

brake pedal 1

[Name] [QTY]

Shock absorbers 1

foot operated parking brake

[Name] [QTY]

Cap 1

[Name] [Note]

Switch

foot operated parking brake

Included in position: 7
