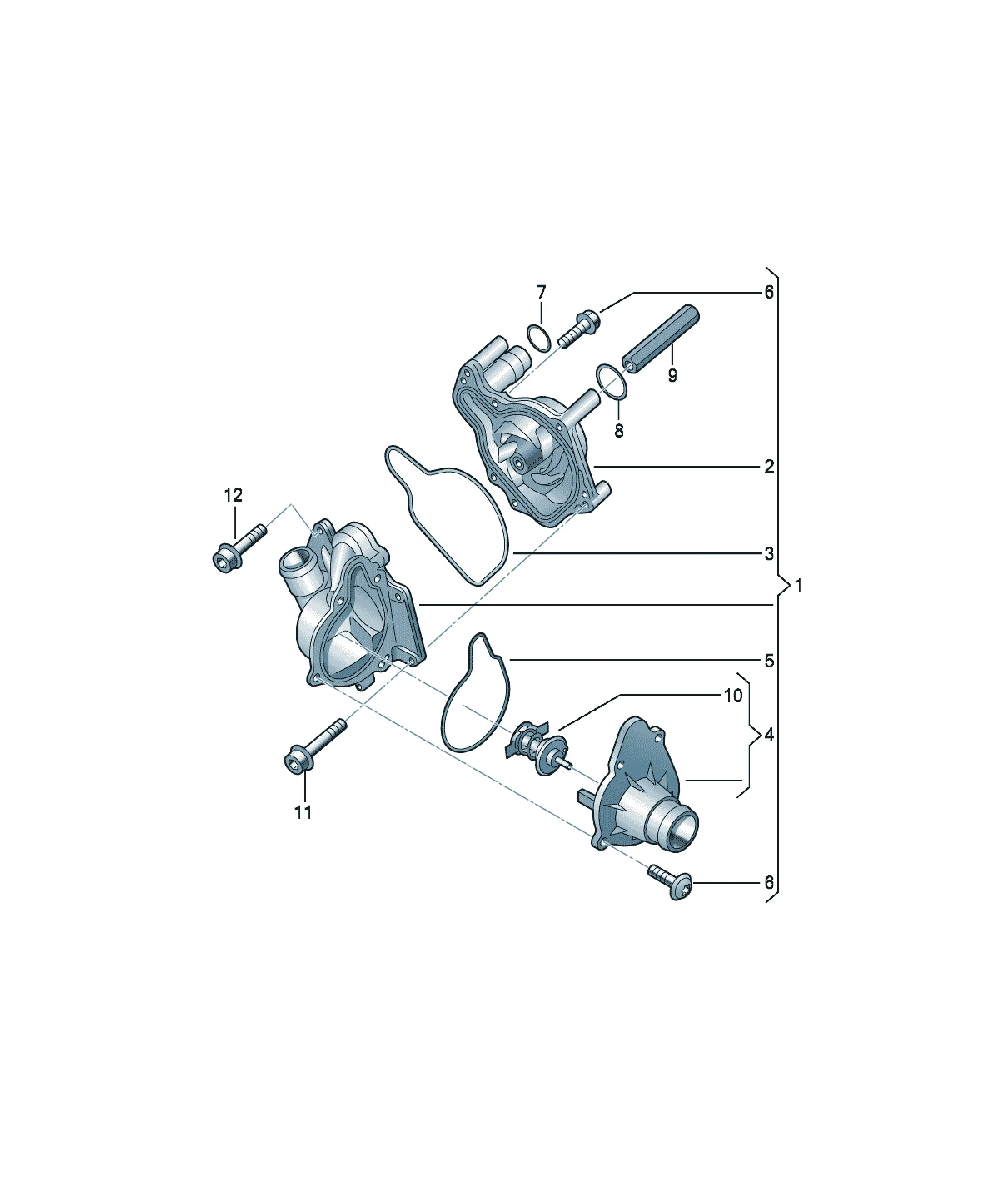

Water pump and thermostat

[Name] [QTY]

Coolant pump 1

Items supplied

mounting for pump 1

Coolant pump housing 1

Individual part

Coolant pump housing 1

079121119A Seal 1

Seal 1

friction ring

Impeller 1

pump cover 1

057121119 Seal 1

N 10124303 Oval hexagon socket head bolt M6X20-CH 6

057121111B Coolant regulator housing with thermostat 1

Cover 1

[Name] [Note] [QTY]

fillister hd. bolt M6X70 2

only to be used for: 057 121 011 J

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X85 2

only to be used for: 057 121 011 L

057 121 011 P

057 121 011 R

[Name] [Note] [QTY]

Hexagon socket head bolt M6X102X70 2

only to be used for: 057 121 011 L

057 121 011 P

057 121 011 R

[Name] [Note] [QTY]

Socket head bolt with hexagon socket head (combination) M6X50 2

only to be used for: 057 121 011 J

[Name] [Note] [QTY]

Coolant regulator housing with thermostat 1

only to be used for: 057 121 011 J

[Name] [Note] [QTY]

Coolant regulator housing with thermostat 1

only to be used for: 057 121 011 L

057 121 011 P

057 121 011 R

[Name] [Note] [QTY]

Seal 1

only to be used for: 057 121 011 J

[Name] [Note] [QTY]

Seal 1

only to be used for: 057 121 011 L

057 121 011 P

057 121 011 R

[Name] [Note] [QTY]

Hexagon socket flat head bolt M6X20 X

[Name] [Note] [QTY]

O-ring 23X5 1

[Name] [Note] [QTY]

O-ring 28X3,5 1

D - 21.11.2011>> green

[Name] [Note] [QTY]

O-ring 28X3,5-N 1

D >> - 21.11.2011 black

[Name] [QTY]

Input shaft 1
