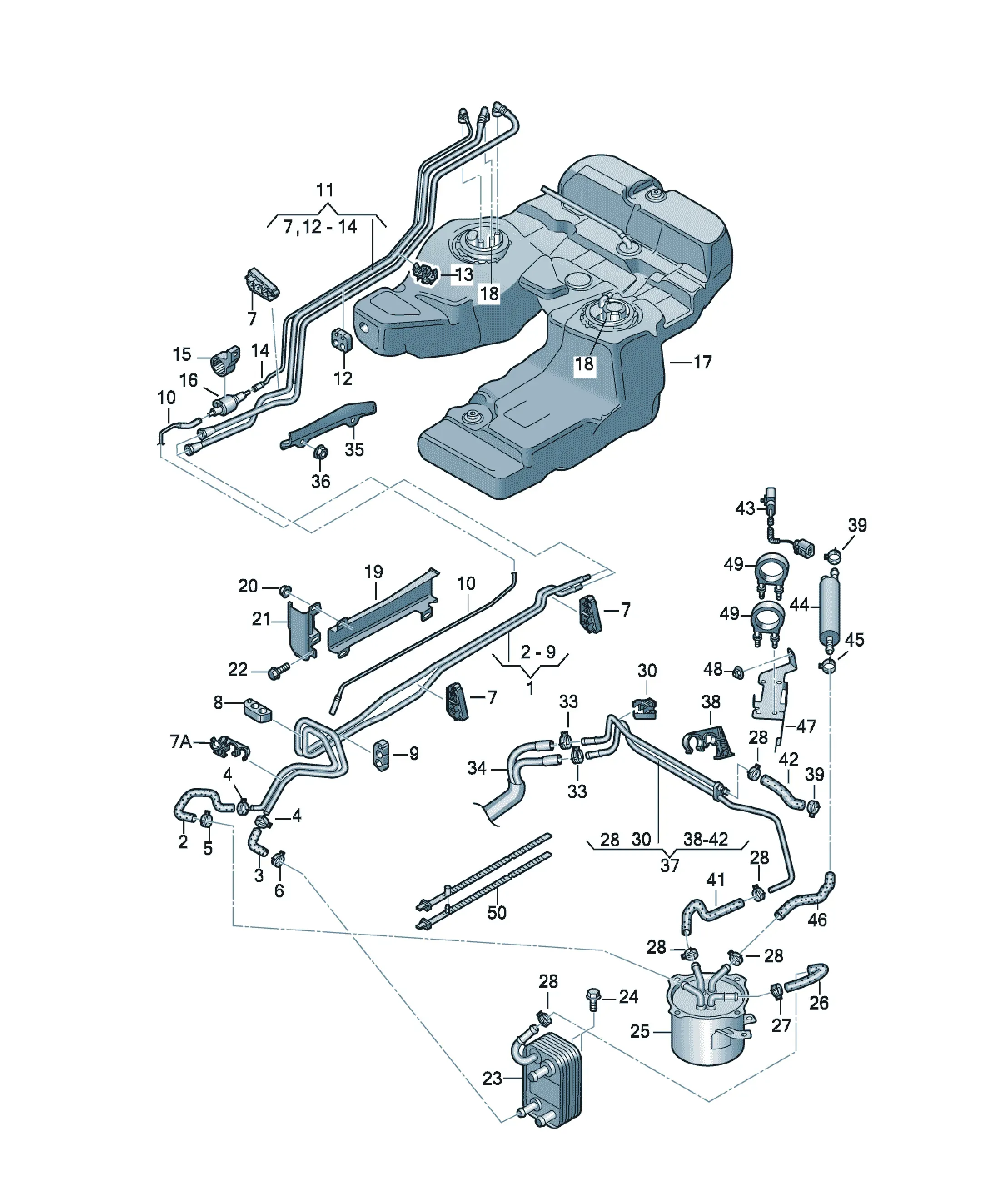

Fuel line

[Name] [Note] [QTY]

1 set fuel pipes feed/return 1

front

[Name] [Note] [QTY]

fuel pipe *

for vehicles with auxiliary heater

see illustration: 819-046

[Name] [Note] [QTY]

1 set fuel pipes feed/return 1

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [Note] [QTY]

double cable tie 7X213/140MM X

[Name] [QTY]

fuel pipe 1

for vehicles with auxiliary heater *

[Name] [Note] [QTY]

rubber support ring *

see illustration: 819-046

[Name] [Note] [QTY]

fuel metering pump *

see illustration: 819-046

[Name] [Note] [QTY]

Fuel tank *

see illustration: 201-000

[Name] [Note] [QTY]

Fuel delivery unit and sender for fuel gauge *

see illustration: 919-035

[Name] [QTY]

Protective plate 1

[Name] [Note] [QTY]

Fuel hose feed 1

[Name] [Note] [QTY]

Hexagon collar nut self-locking M6 3

[Name] [QTY]

Protective plate 1

[Name] [Note] [QTY]

hexagon head bolt (combi) M6X20 1

[Name] [QTY]

fuel cooler 1

[Name] [Note] [QTY]

Hexagon bolt M6X15 2

[Name] [Note] [QTY]

Spring band clamp 19X12 2

[Name] [Note] [QTY]

Fuel hose return 1

[Name] [Note] [QTY]

Fuel hose *

see illustration: 130-095

[Name] [QTY]

Protective plate 1

[Name] [Note] [QTY]

hexagon nut, self-locking M8 2

[Name] [Note] [QTY]

Spring band clamp 19X12 2

[Name] [Note] [QTY]

Spring band clamp 19X12 2

[Name] [Note] [QTY]

Spring band clamp 17X12 1

[Name] [QTY]

Securing clip 3

[Name] [Note] [QTY]

Seal lower front 1

[Name] [Note] [QTY]

Seal upper front 1
